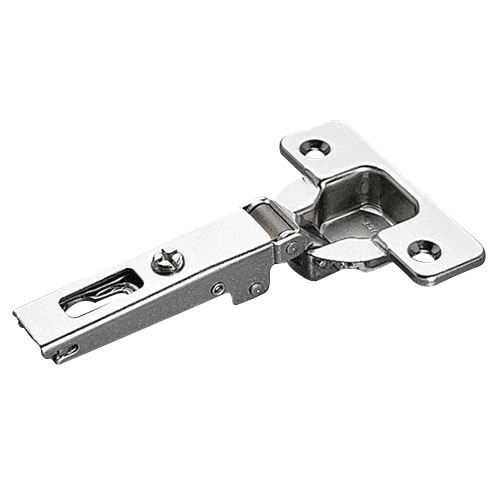

Series 200 94° Opening Thick Door Hinge, 45mm Bore Pattern, Self-Closing, Full Overlay, Nickel-Plated, Screw-On
Item # SALC2PBA99
•Mfr # C2PBA99
$2.15
/Each
300 items
$1.90/Each
Mounting Type: Screw-On
Min Order: 1
Qty mult. by: 1
Product Details
Features:
• Knock-in cup mount
• Full overlay
• For kitchen cabinets and furniture
• For doors up to 32mm with special profiles
• 11mm deep steel cup
• Possible drilling distance on the door from 3mm to 9mm
• Compatible with all traditional Series 200 mounting plates and with all Dome® snap-on mounting plates
• Compensating side adjustment from -1.5mm to +4.5mm
• Anti-sliding safety stop
• Knock-in cup mount
• Full overlay
• For kitchen cabinets and furniture
• For doors up to 32mm with special profiles
• 11mm deep steel cup
• Possible drilling distance on the door from 3mm to 9mm
• Compatible with all traditional Series 200 mounting plates and with all Dome® snap-on mounting plates
• Compensating side adjustment from -1.5mm to +4.5mm
• Anti-sliding safety stop
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 94° |
| Model | |
| Hinge Type | Thick Door Hinge |
| Finish | Nickel-Plated |

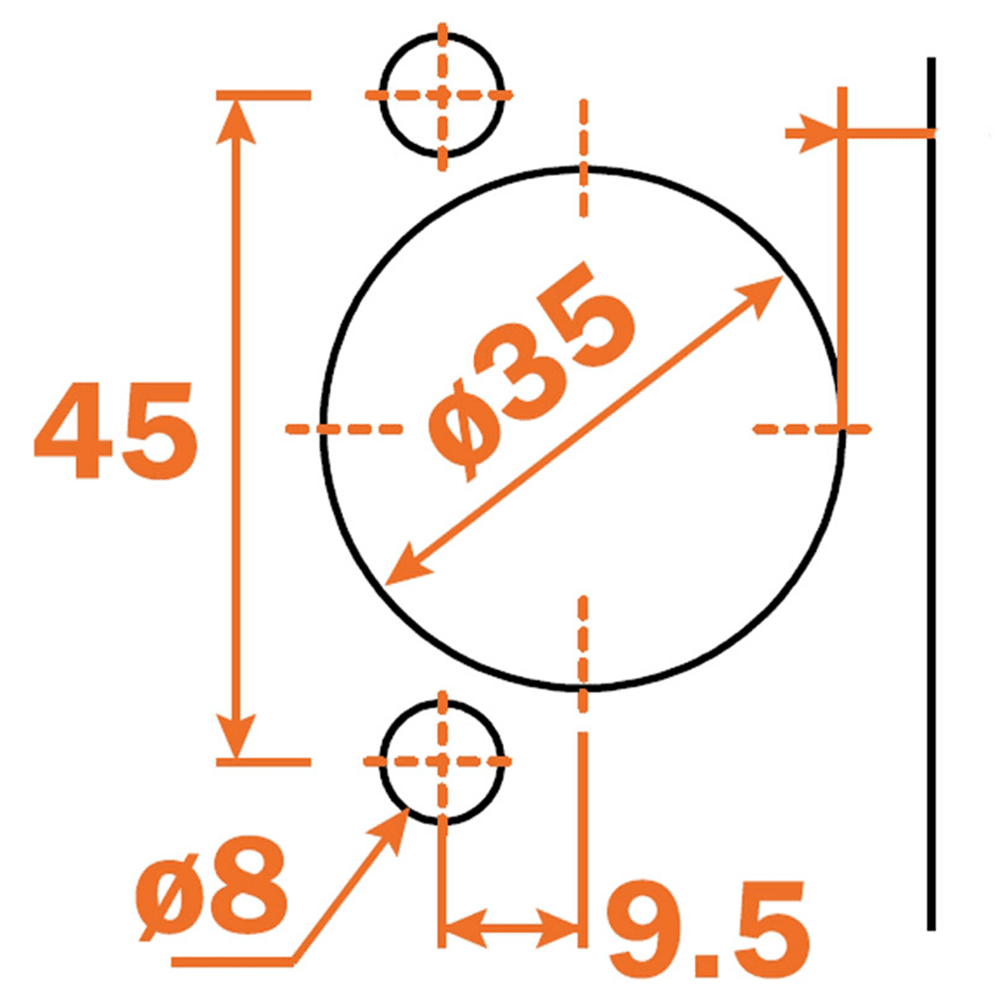

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
