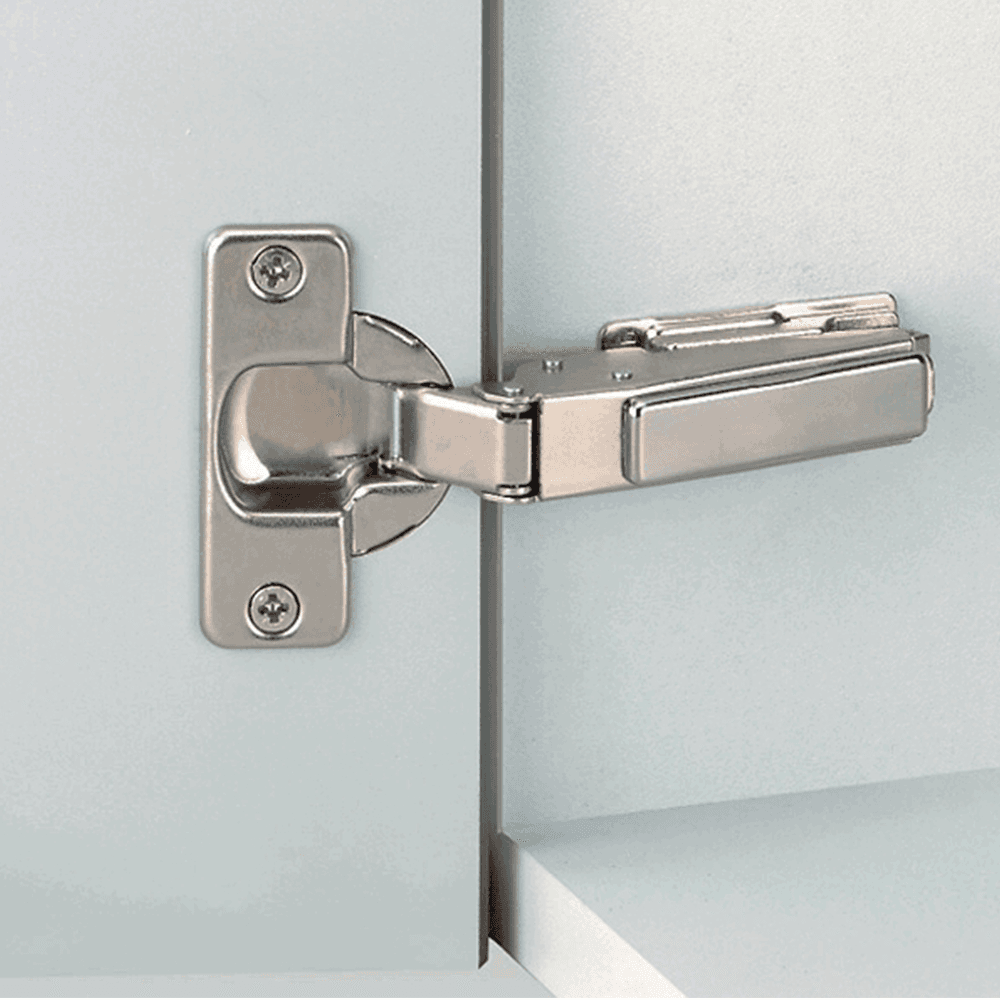

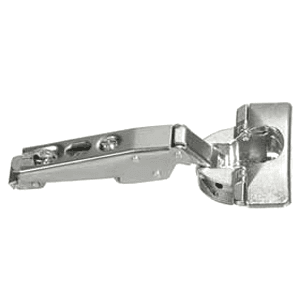

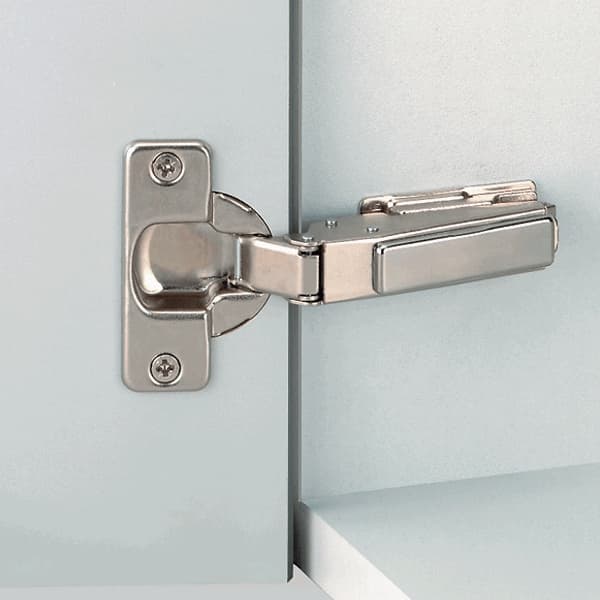

Nexis 110° Opening Hinge, 45/48mm Bore Pattern, Self-Closing, Full Overlay, Nickel-Plated, Impresso
Item # G146.622.35.0015
•Mfr # F014072520225
Product Details
All metal hinge. Self closing. Self Close compatible. Minimal cup depth of 11mm. Designed for thin or profile doors. Excellent minimum gap requirements with door thicknesses up to 20mm.
Features:
• 3-dimensional adjustment with suitable base plate
• Self-close compatible
• Shallow cup depth
- Nexis Impresso 11.5 mm
- Nexis 11 mm
• Accommodates overlays up to 20mm [25/32•]
• Self-close or free-swing hinges available
• For face frame and frameless cabinets
• Combination drilling pattern for Nexis Impresso
Features:
• 3-dimensional adjustment with suitable base plate
• Self-close compatible
• Shallow cup depth
- Nexis Impresso 11.5 mm
- Nexis 11 mm
• Accommodates overlays up to 20mm [25/32•]
• Self-close or free-swing hinges available
• For face frame and frameless cabinets
• Combination drilling pattern for Nexis Impresso
Specifications
| Box Quantity | 125 |
| Product Type | |
| Mounting Type | Tool-Free |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45/48mm |
| Cup Diameter | 35mm |
| Cup Depth | 12mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
