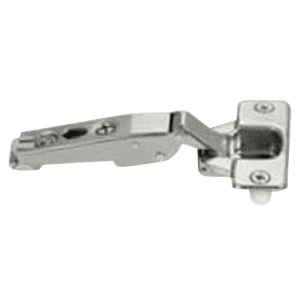

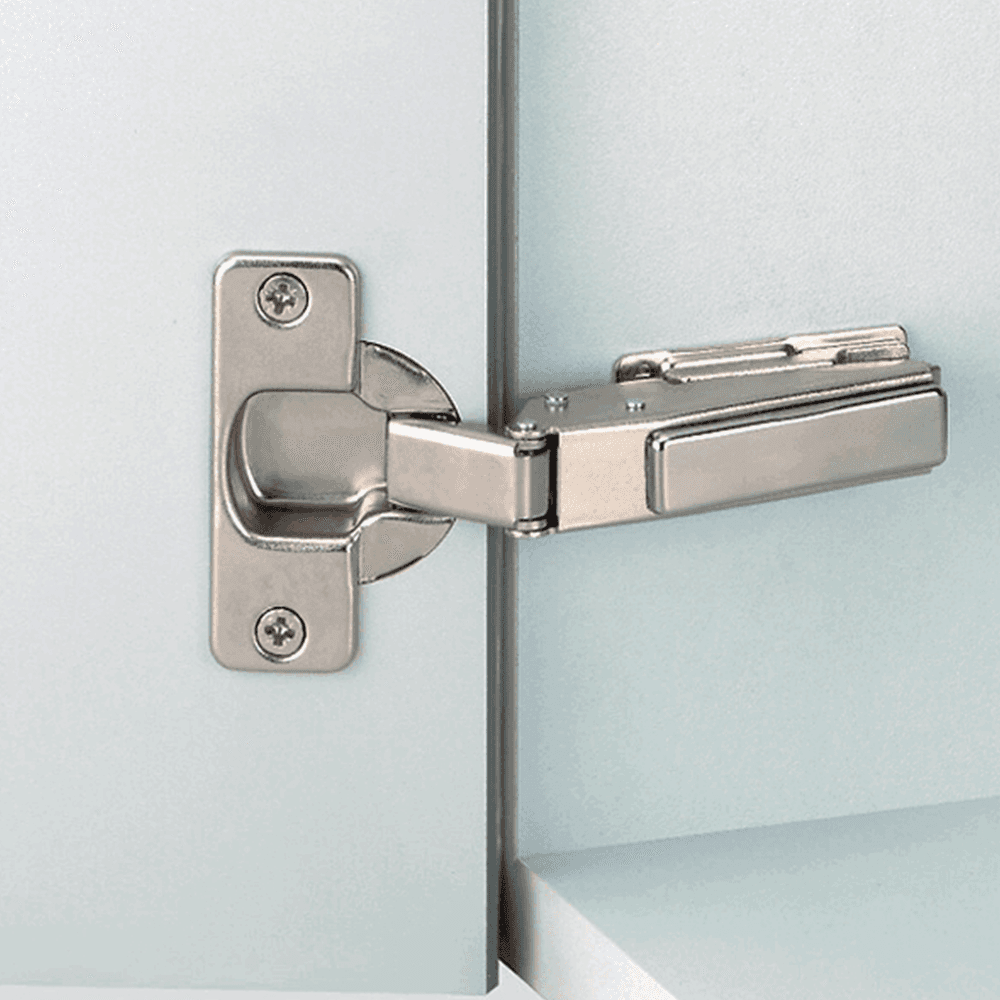

Nexis 125° Opening Hinge, 45mm Bore Pattern, Soft-Closing, Full Overlay, Nickel-Plated, Dowelled
Item # GNX148.329.32.0015
•Mfr # F015072636236 WAS 148.329.32.0015
Product Details
All metal hinge. Self closing. Soft Close compatible. Minimal cup depth of 11mm. Designed for thin or profile doors. Excellent minimum gap requirements with door thicknesses up to 22mm.
Features:
• Full Overlay
• 48/9 Boring Pattern all metal hinge
• 3-dimensional adjustment
• Suitable for cam mounting plates
• Self-closing
• Soft-close compatible
• Standard hinge with large opening angle
• Compact design large door opening
• An alternative solution for wide angle applications
• For design solutions with large opening angle
• Twin 29 hinge offers toolless technology
Features:
• Full Overlay
• 48/9 Boring Pattern all metal hinge
• 3-dimensional adjustment
• Suitable for cam mounting plates
• Self-closing
• Soft-close compatible
• Standard hinge with large opening angle
• Compact design large door opening
• An alternative solution for wide angle applications
• For design solutions with large opening angle
• Twin 29 hinge offers toolless technology
Specifications
| Box Quantity | 1 |
| Mounting Type | Dowelled |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 125° |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11.8mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
