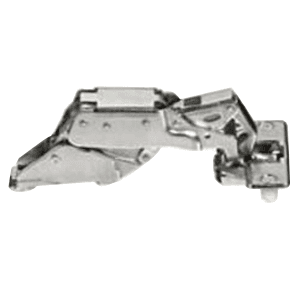

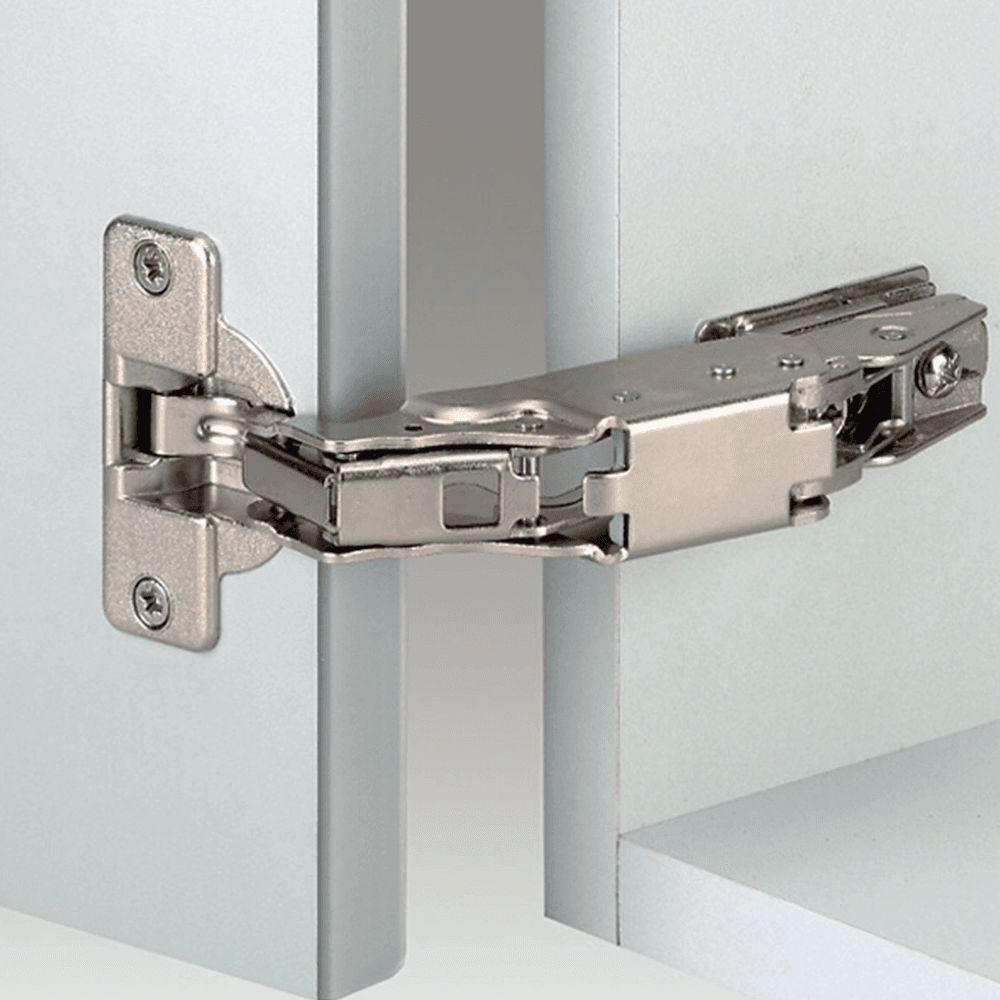

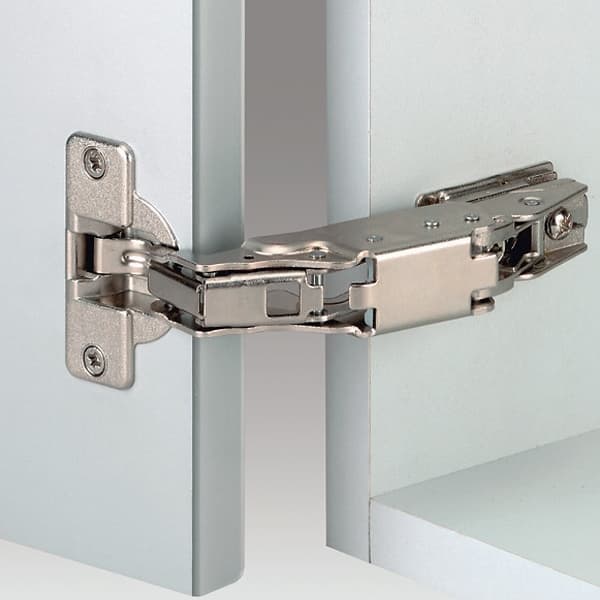

Nexis 170° Opening Hinge, 45mm Bore Pattern, Self-Closing, Full Overlay, Nickel-Plated, Dowelled
Item # GNX148.765.54.0015
•Mfr # F015072647217
$9.98
/Each
50 items
$8.45/Each
250 items
$7.93/Each
Mounting Type: Dowelled
In Stock
4 in stock at Brea, CA
Min Order: 1
Qty mult. by: 1
Product Details
All metal hinge. Suitable for cam-mounting plates. Self-closing or free-swing. Opening angle can be restricted to 120 degrees. Minimal cup depth of 11mm. 100% finger protection. For door thicknesses up to 26mm. Zero protrusion at a 90 degree opening angle in 00 cranking and with 00 mounting plate thickness.
Features:
• 3-Dimensional adjustment with suitable base plate
• Self-close compatible
• Accommodates overlays up to 19mm (3/4")
• Shallow cup depth (1mm) for Nexis and Nexis Impresso
• Zero protrusion when door opened 90˚
• Finger protection
• Self-close or free-swing hinges available
• For face frame and frameless cabinets
• Combination drilling pattern for Nexis Impresso
• Hinge arm and cup
Features:
• 3-Dimensional adjustment with suitable base plate
• Self-close compatible
• Accommodates overlays up to 19mm (3/4")
• Shallow cup depth (1mm) for Nexis and Nexis Impresso
• Zero protrusion when door opened 90˚
• Finger protection
• Self-close or free-swing hinges available
• For face frame and frameless cabinets
• Combination drilling pattern for Nexis Impresso
• Hinge arm and cup
Specifications
| Box Quantity | 50 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 170° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
