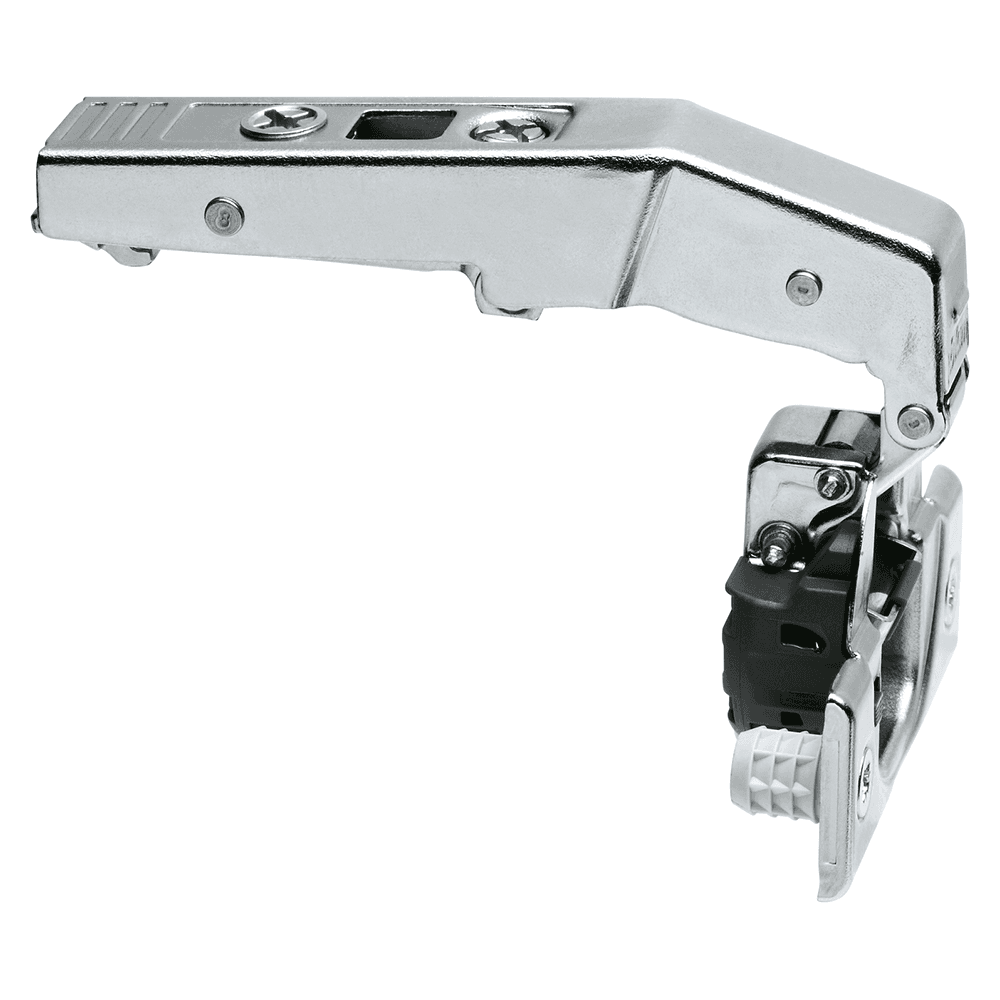

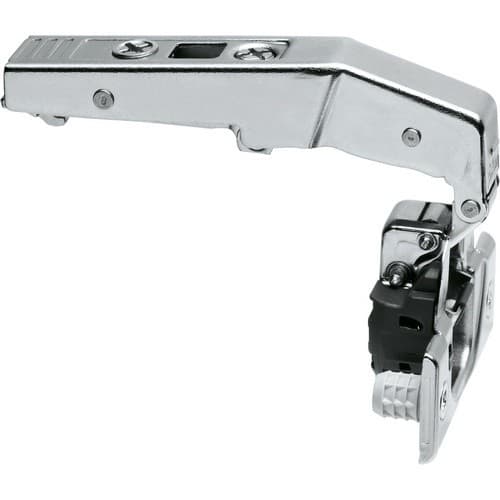

Clip Top Blind Corner 95° Opening Hinge, 45mm Bore Pattern, Soft-Closing, Inset, Dowelled
Item # B79B958
•Mfr # 79B9580
Mounting Type: Dowelled
Product Details
CLIP top BLUMOTION hinges have the soft close mechanism integrated in the hinge cup, and continues to provide the quality of motion you have come to expect from Blum.
Features:
• Dowelled mount hinge in nickel-plated finish • BLUMOTION integrated into the hinge cup • Deactivation switch for small/light doors • For door thicknesses up to 24 (15/16") • Overload safety feature • Boring distance range 3mm to 7mm • Compatible with existing CLIP mounting plates and hinge arm cover caps • Side adjustment: +/- 2.5mm • Depth adjustment: +/- 1 mm, convenient with spiral screwPlease be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 50 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Inset Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 95° |
| Model | |
| Hinge Type | Blind Corner Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 13mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
