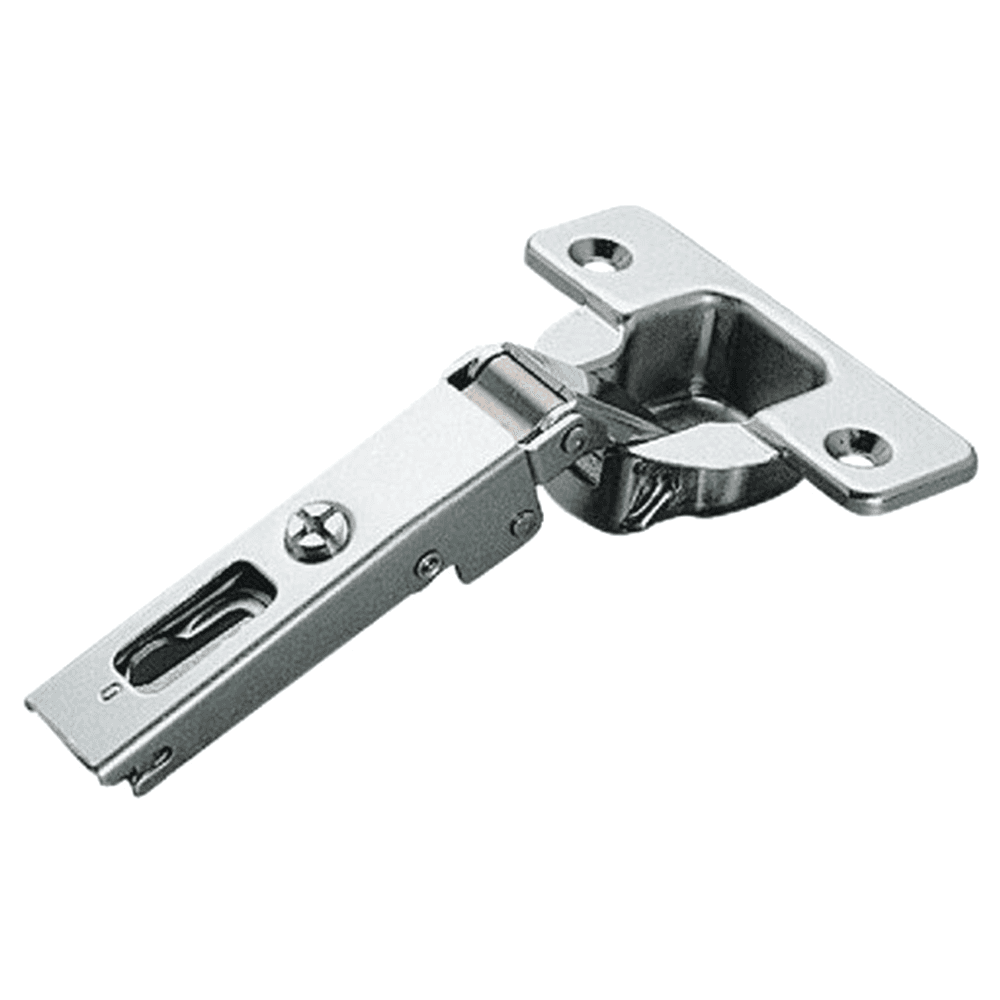

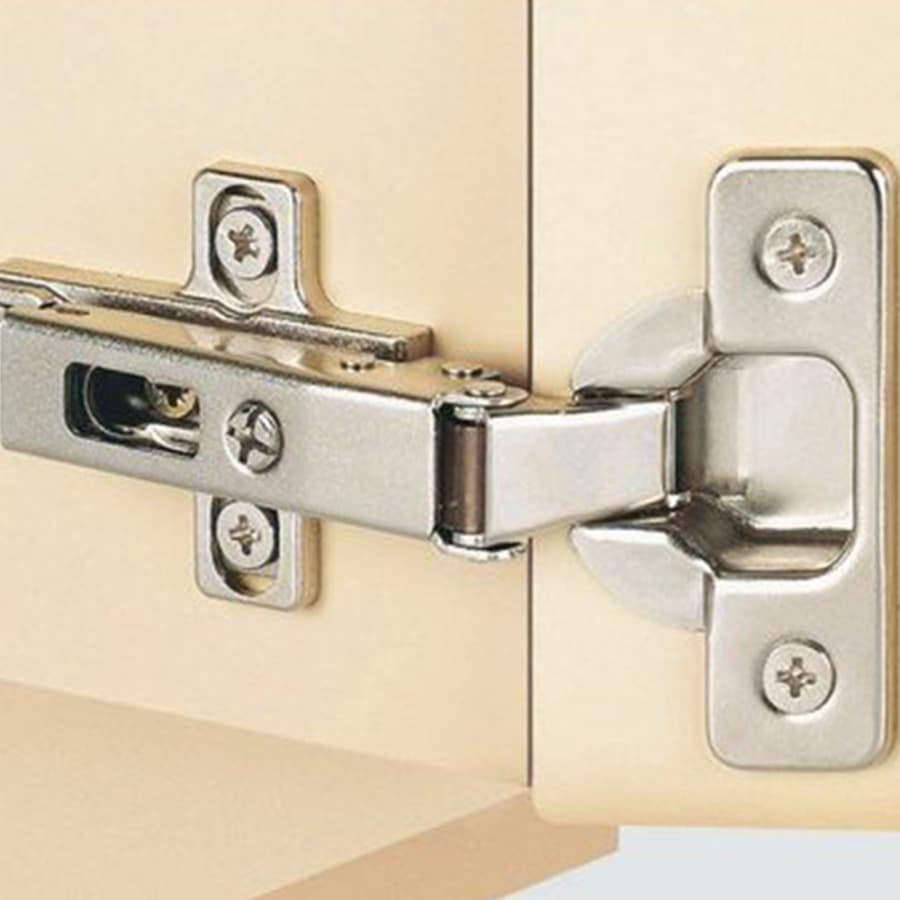

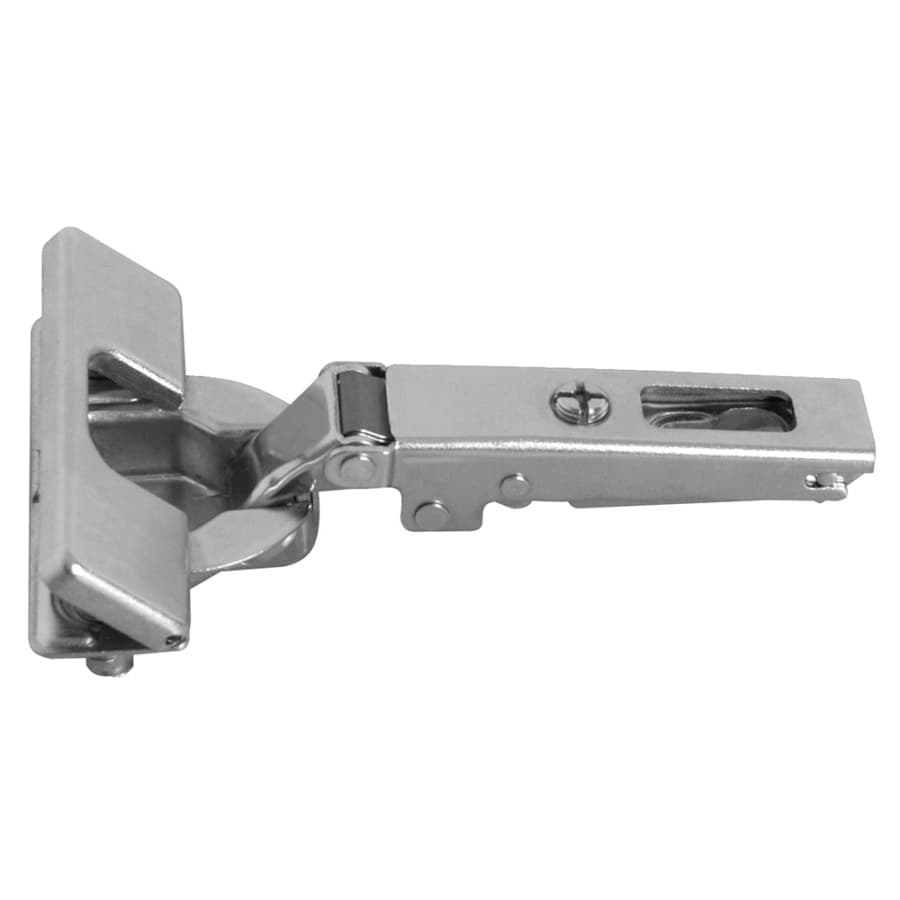

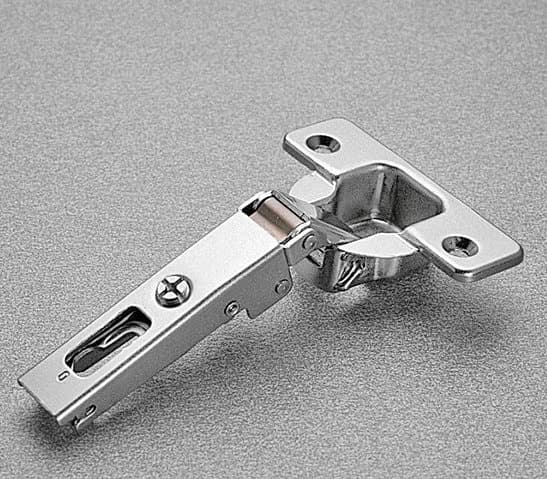

Series 200 120° Opening Hinge, 45mm Bore Pattern, Self-Closing, Full Overlay, Nickel-Plated, Logica
Item # SALC2J9A99
•Mfr # C2J9A99
$2.13
/Each
300 items
$1.97/Each
1200 items
$1.86/Each
Mounting Type: Tool-Free
Min Order: 1
Qty mult. by: 1
Product Details
Series 200 hinges are for thicker doors. They feature an integrated soft-close mechanism in the hinge cup.
Bright nickel plated steel cup and arm.
Features:
• Compensating side adjustment from -1.5 mm to +4.5 mm.
• Height adjustment ?2 mm.
• Depth adjustment with Series 200 mounting plates +2.8 mm.
• Depth adjustment with Domi snap-on mounting plates from -0.5 mm to +2.8 mm.
• Anti-sliding safety stop.
• Symmetrical and asymmetrical bright nickel plated steel or die-cast Series 200 mounting plates.
• Snap-on assembly on Domi mounting plates.
• Positioning with pre-determined stop on traditional Series 200 mounting plates.
• Use POZIDRIVE No. 2 screwdrivers for all screws.
Bright nickel plated steel cup and arm.
Features:
• Compensating side adjustment from -1.5 mm to +4.5 mm.
• Height adjustment ?2 mm.
• Depth adjustment with Series 200 mounting plates +2.8 mm.
• Depth adjustment with Domi snap-on mounting plates from -0.5 mm to +2.8 mm.
• Anti-sliding safety stop.
• Symmetrical and asymmetrical bright nickel plated steel or die-cast Series 200 mounting plates.
• Snap-on assembly on Domi mounting plates.
• Positioning with pre-determined stop on traditional Series 200 mounting plates.
• Use POZIDRIVE No. 2 screwdrivers for all screws.
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Tool-Free |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 120° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
