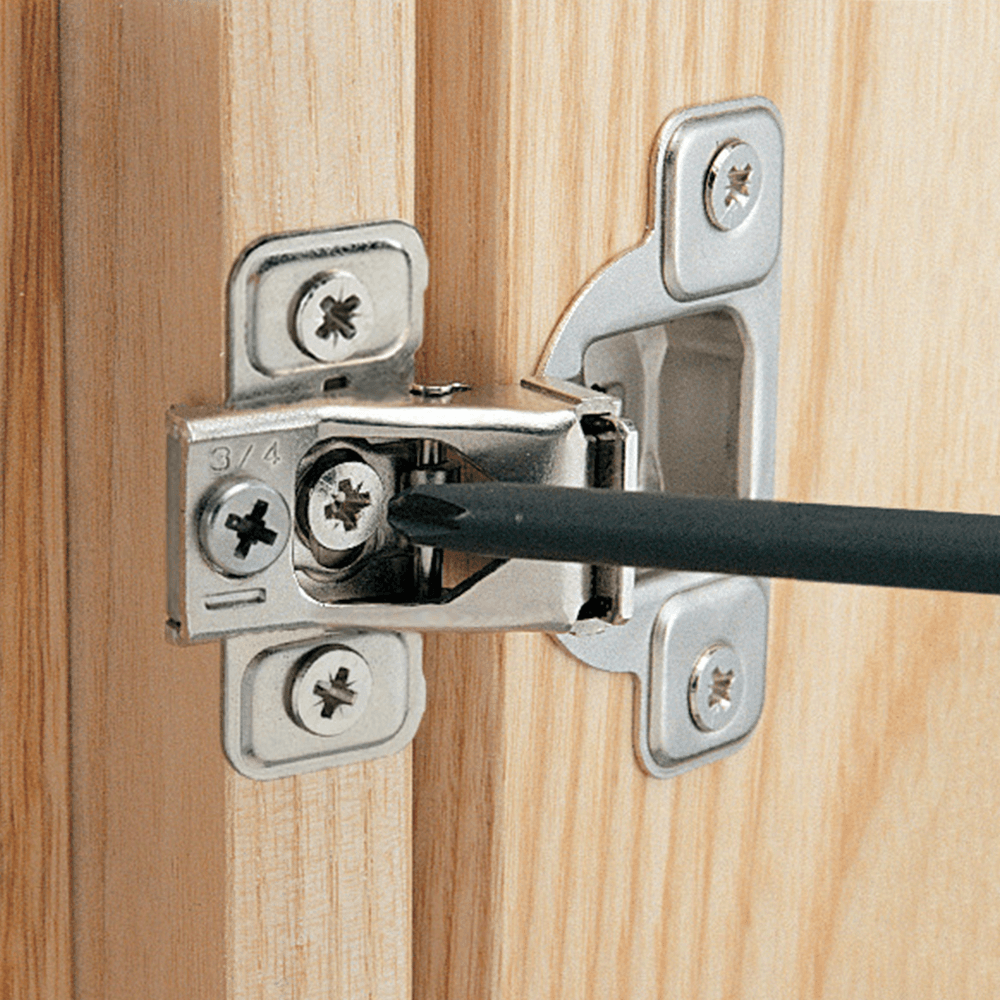

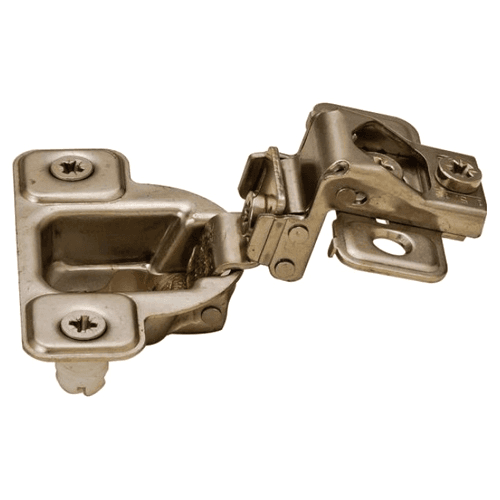

Excenthree S 106° Opening Side-Mount Face Frame Hinge, 45mm Boring Pattern, Self-Closing, 1-1/4" Overlay, Dowelled
Item # SALCSR3A99NR
•Mfr # CSR3A99NR
$2.39
/Each
300 items
$2.04/Each
1200 items
$1.96/Each
Mounting Type: Dowelled
Overlay: 1-1/4"
Min Order: 1
Qty mult. by: 1
Product Details
Features:
• Knock-in cup mount
• 106˚ opening
• Drilling distance fixed at 2.5mm (3/32")
• Gap between door and frame at 4.6mm
• Reveal at 8.3mm for 3/4" square edge door at 90˚ opening
• Knock-in cup mount
• 106˚ opening
• Drilling distance fixed at 2.5mm (3/32")
• Gap between door and frame at 4.6mm
• Reveal at 8.3mm for 3/4" square edge door at 90˚ opening
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | 1-1/4" |
| Closing Type | Self-Closing |
| Opening Angle | 106° |
| Model | |
| Hinge Type | Side-Mount Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
