Tiomos 120° Opening Hinge, 42mm Bore Pattern, Soft-Closing, Half Overlay, Nickel-Plated, Dowelled
Item # GTIOF045138309228
•Mfr # F045138309228
$3.37
/Each
150 items
$2.87/Each
750 items
$2.70/Each
Min Order: 1
Quantity Multiple by: 1
Product Details

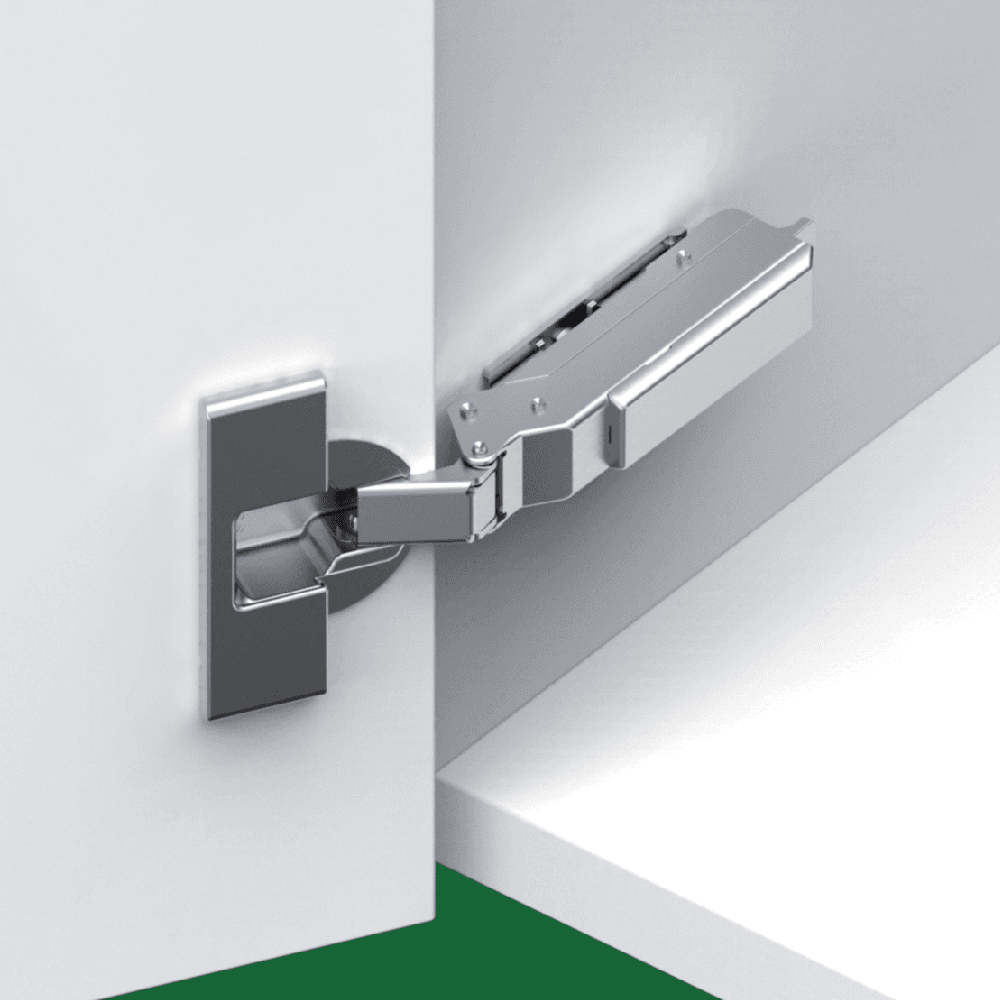

The GRASS Tiomos 120˚ half-overlay hinge installs on face-frame and frameless cabinets and accommodates doors up to 24mm overlay. Possibility of 3-dimensional adjustment to its height, side and depth facilitate flexible door alignments. This Impresso hinge can be installed quickly without tools. As it causes minimum gaps and reveals, the cabinets look attractive and utilize space efficiently. With a 30% larger surface, this self-closing hinge offers greater stability to doors.
Features:
• Optimal reveal up to 24mm door thickness
• 3-dimensional adjustment with suitable base plate
• Optimum lever effect opens door easily
• Stepless height adjustment
• Durable construction lasts longer
Features:
• Optimal reveal up to 24mm door thickness
• 3-dimensional adjustment with suitable base plate
• Optimum lever effect opens door easily
• Stepless height adjustment
• Durable construction lasts longer
Specifications
| Mounting Type | Dowelled |
| Overlay | Half Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 120° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 42mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
