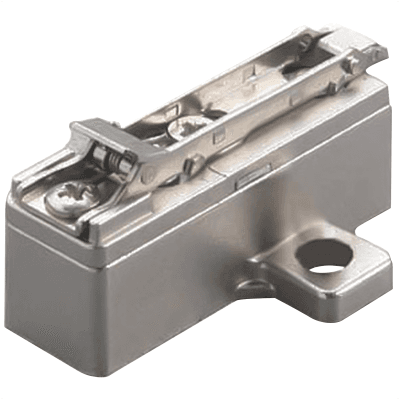

Domi 2-Cam Adjustable Wing Mounting Plate, Nickel-Plated, Screw-On, 24mm
Item # SALBAR3RY9
•Mfr # BAR3RY9
Height: 24mm
Product Details
The Domer automatic mounting plate system every salice hinge can be a slide-on or clip-on hinge depending on the mounting plate used. One hinge system can be used for either slide-on application or for the clip-on method on mounting cabinet doors by simply switching the mounting plate.
Feature:
• Slight turn of the frontal adjustment cam or vertical adjustment cam quickly positions the hinge
• Eliminating the need for manual positioning by loosening screw
• Cam height adjustment +2mm to -2mm
• Cam depth adjustment +2.8mm to -0.5mm
Feature:
• Slight turn of the frontal adjustment cam or vertical adjustment cam quickly positions the hinge
• Eliminating the need for manual positioning by loosening screw
• Cam height adjustment +2mm to -2mm
• Cam depth adjustment +2.8mm to -0.5mm
Specifications
| Box Quantity | 1 |
| Height | 24mm |
| Finish | Nickel-Plated |
| Product Type | Wing Mounting Plate |
| Mounting Type | Screw-On |
| Material | Steel/Zinc Die-Cast |
| Cabinet Type | Face Frame/Frameless |
