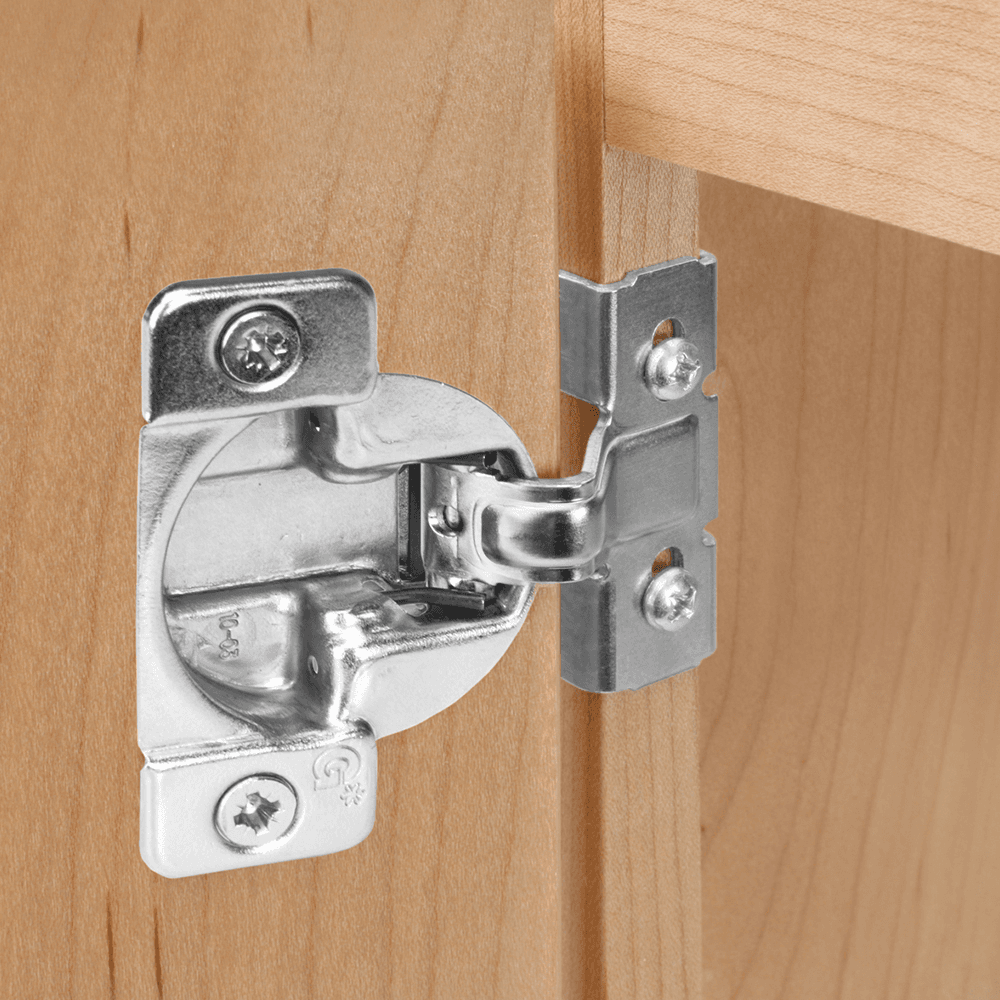

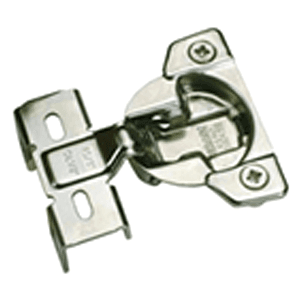

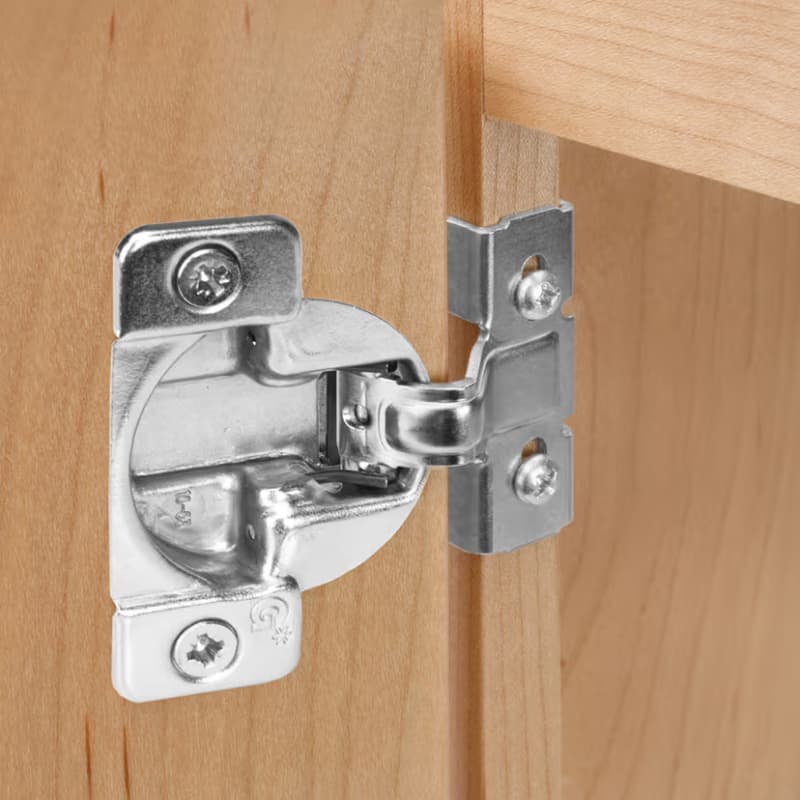

TEC 861 108° Opening Wrap-Around Face Frame Hinge, 42mm Boring Pattern, Self-Closing, 9/16" Overlay, Dowelled
Item # G04700-16
•Mfr # 04700-16
$1.74
/Each
300 items
$1.47/Each
1200 items
$1.42/Each
Overlay: 9/16"
Min Order: 1
Qty mult. by: 1
Product Details
Features:
• One piece hinge and base plate combination
• 11mm (7/16") cup drilling depth
• Front locating tabs position hinge on face frame
• Works on door thicknesses from 13mm (1/2") to 19mm (3/4")
• 85˚ angle reduction clip available
• Works with current Grass insertion machinery
• One piece hinge and base plate combination
• 11mm (7/16") cup drilling depth
• Front locating tabs position hinge on face frame
• Works on door thicknesses from 13mm (1/2") to 19mm (3/4")
• 85˚ angle reduction clip available
• Works with current Grass insertion machinery
Specifications
| Box Quantity | 400 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | 9/16" |
| Closing Type | Self-Closing |
| Opening Angle | 108° |
| Model | |
| Hinge Type | Wrap-Around Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 42mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
