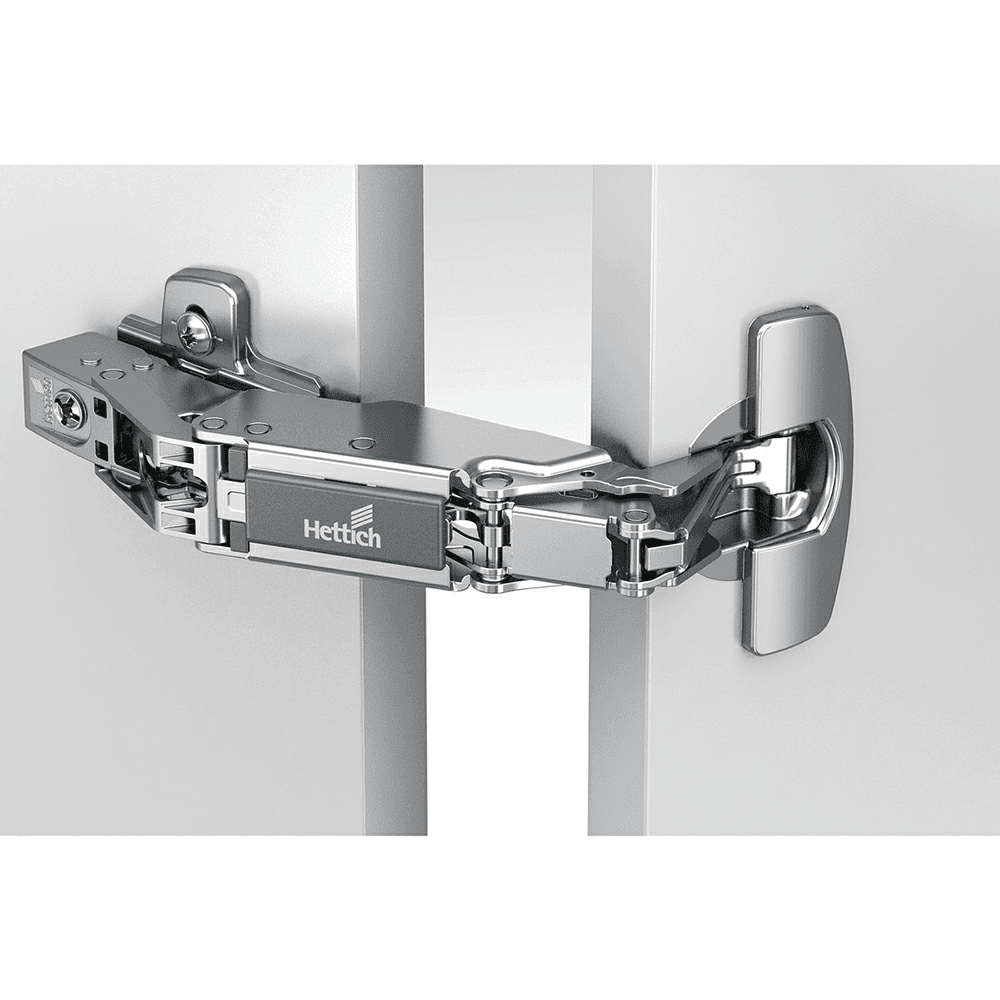

Sensys 165° Opening Wide-Angled Hinge with Zero Protrusion, 45mm Boring Pattern, Soft-Closing, Half Overlay, Nickel-Plated, Dowelled
50 items
Product Details
Features:
• Dowelled mount
• Sensys wide angle hinge, with zero protrusion in Nickel-Plated finish
• With integrated Silent System, with Soft closing feature (Sensys 8657i)
• Quality classification under EN 15570, Level 3
• For door thickness 15mm - 32mm
• Door mounting option half overlay

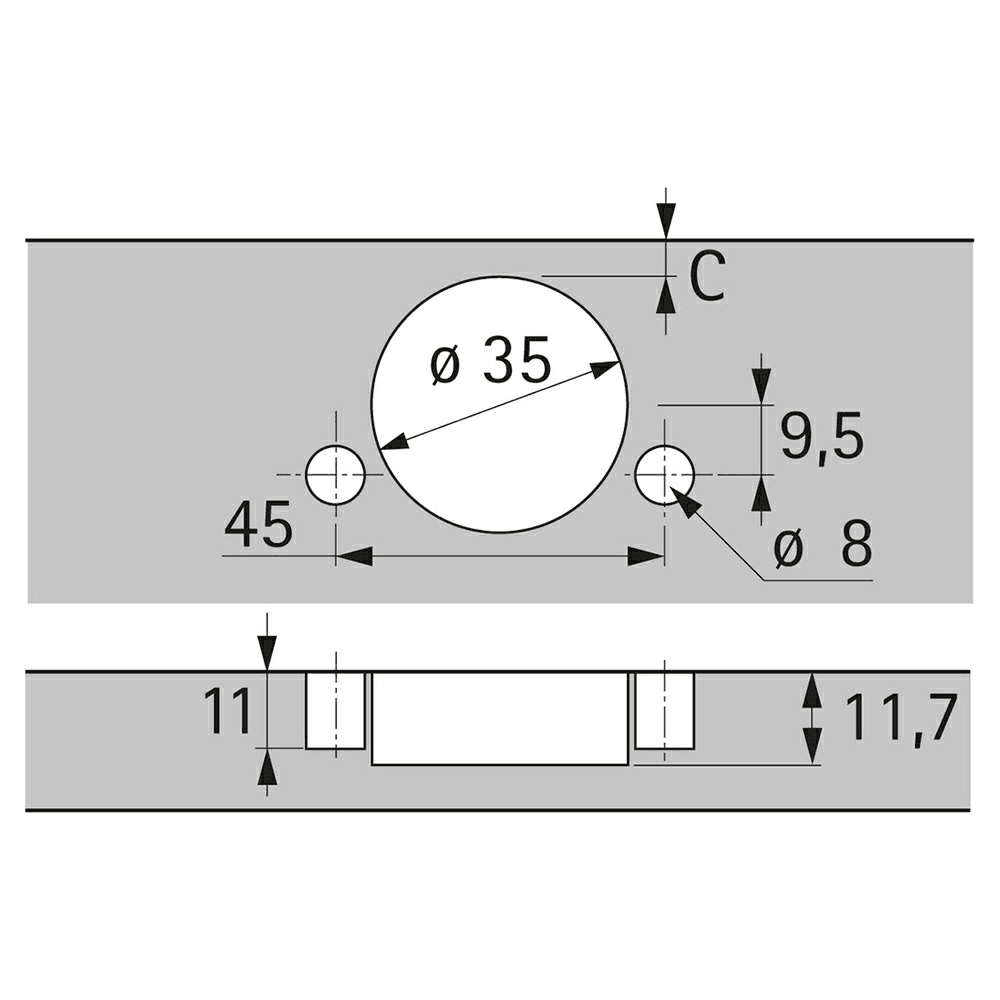

• Drilling pattern TB 45mm x 9,5mm
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +3mm / -2mm
• Height adjustment at mounting plate
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Mounting Type | Dowelled |
| Overlay | Half Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 165° |
| Model | |
| Hinge Type | Wide-Angled Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11.6mm |
| Material | Steel/Die-Cast Zinc |
| Cabinet Type |
