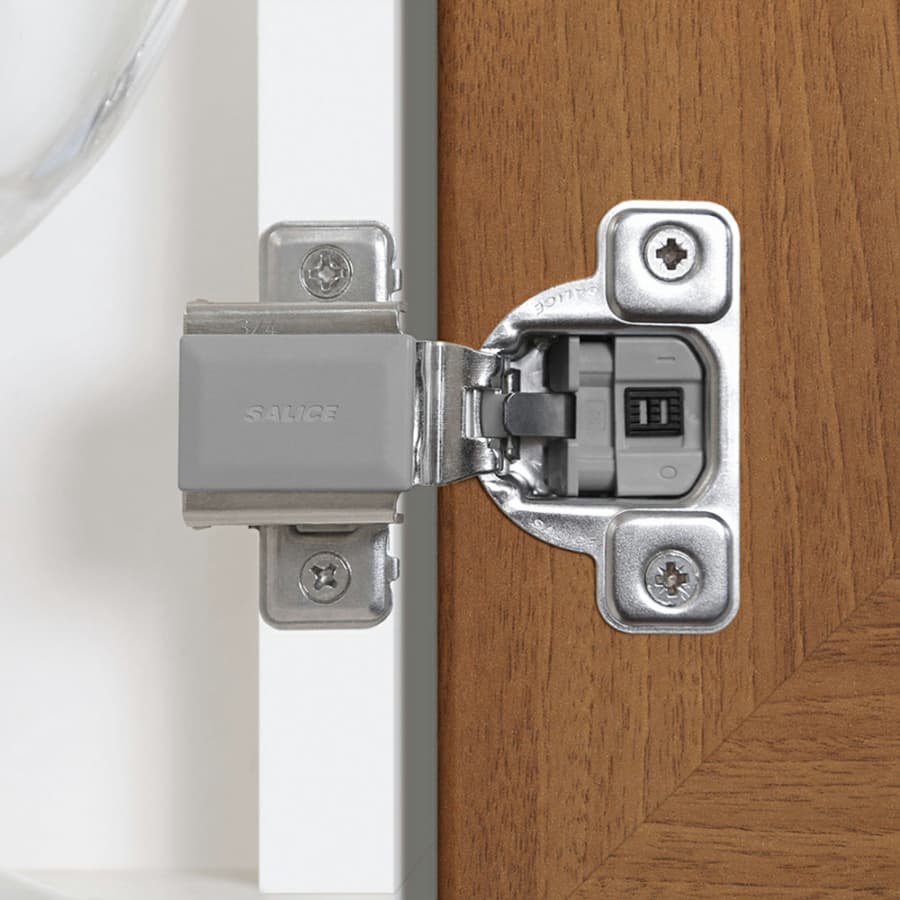

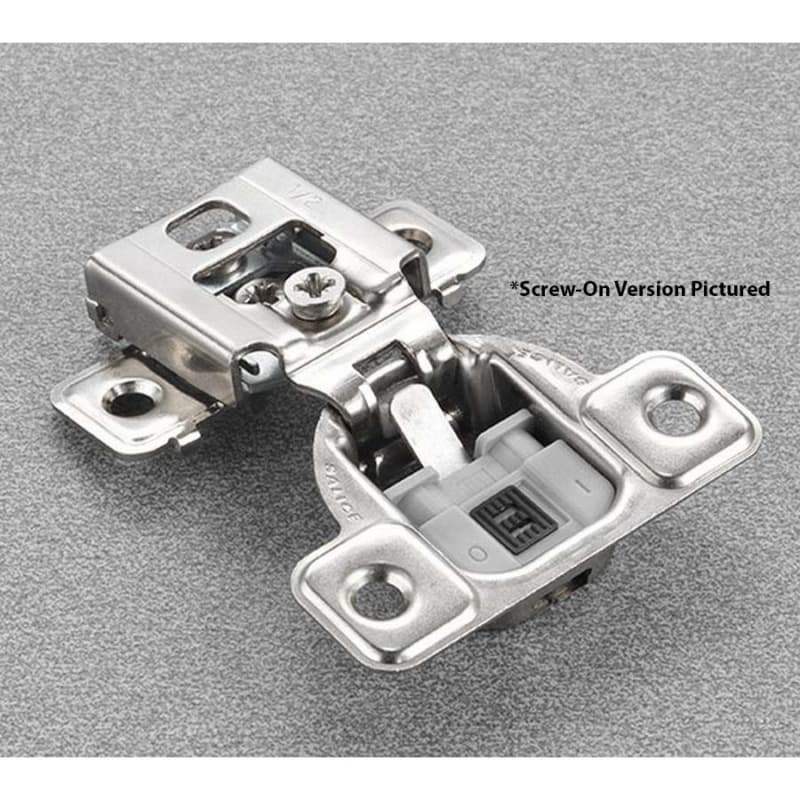

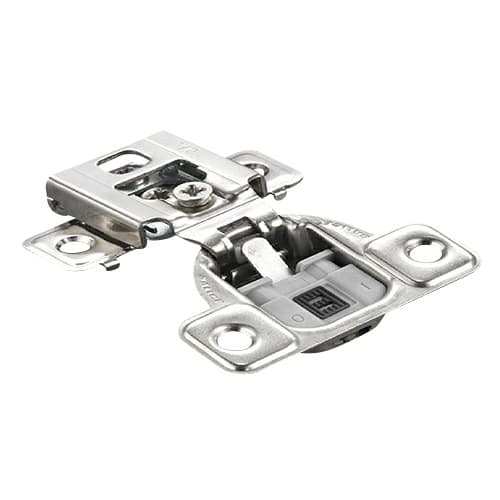

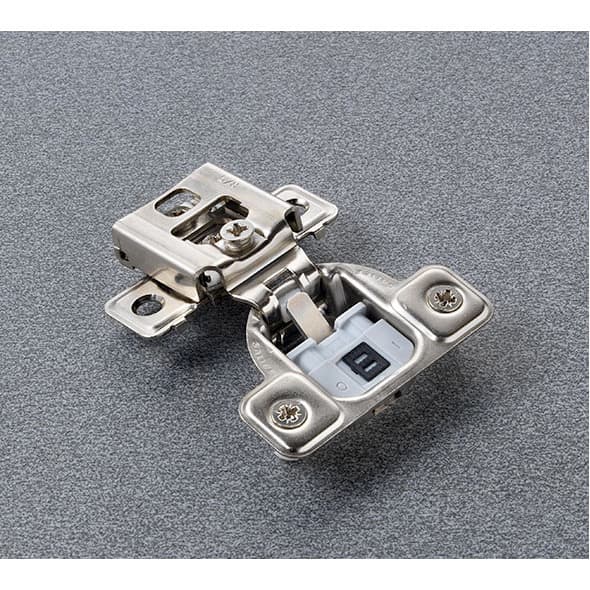

Series CU 106° Opening Edge-Mount Face Frame Hinge, 45mm Boring Pattern, Soft-Closing, 5/8" Overlay, Dowelled
Item # SALCUR35D9R
•Mfr # CUR35D9R
$2.93
/Each
300 items
$2.71/Each
Overlay: 5/8"
Min Order: 1
Quantity Multiple by: 1
Product Details
When a different soft closing strength is desired, the decelerating mechanism on the hinge can be easily deactivated by using the activation switch clearly visible on the front of the unit. Adjustments made easy through eccentric cams.
Features:
• Stamped steel
• Minimum door thickness 14mm (9/16")
• Maximum door thickness 22mm (7/8")
• Cup depth 11mm (7/16")
• Opening 106˚
• Edge-mount (front tabs only)
• All Silentia face frame hinges have a variable drilling
• distance (K) of 2.5mm - 6mm
• #6 x 5/8" flat head wood screw - VU73X154 Nickel - V234X166 Titanium
• Side, height and depth adjustment
• 3 cam adjustment
Features:
• Stamped steel
• Minimum door thickness 14mm (9/16")
• Maximum door thickness 22mm (7/8")
• Cup depth 11mm (7/16")
• Opening 106˚
• Edge-mount (front tabs only)
• All Silentia face frame hinges have a variable drilling
• distance (K) of 2.5mm - 6mm
• #6 x 5/8" flat head wood screw - VU73X154 Nickel - V234X166 Titanium
• Side, height and depth adjustment
• 3 cam adjustment
Specifications
| Mounting Type | Dowelled |
| Overlay | 5/8" |
| Closing Type | Soft-Closing |
| Opening Angle | 106° |
| Model | |
| Hinge Type | Edge-Mount Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
