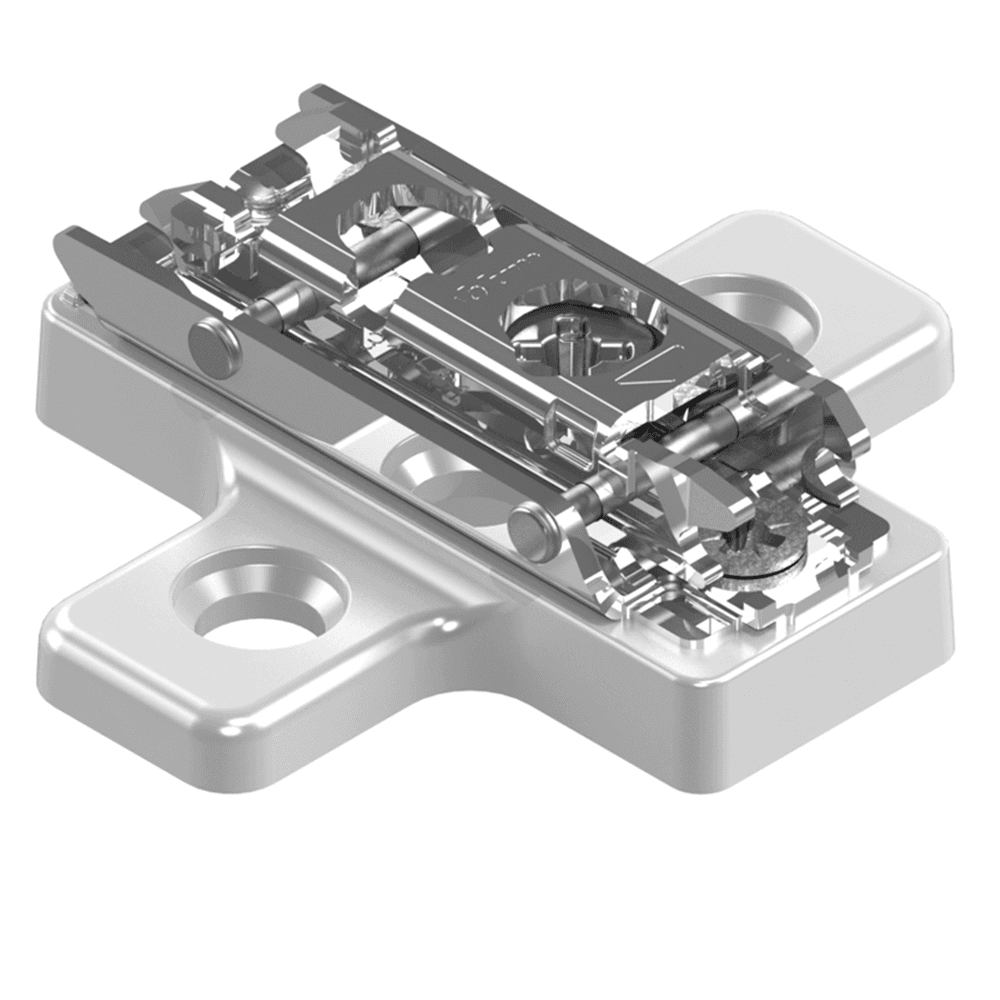

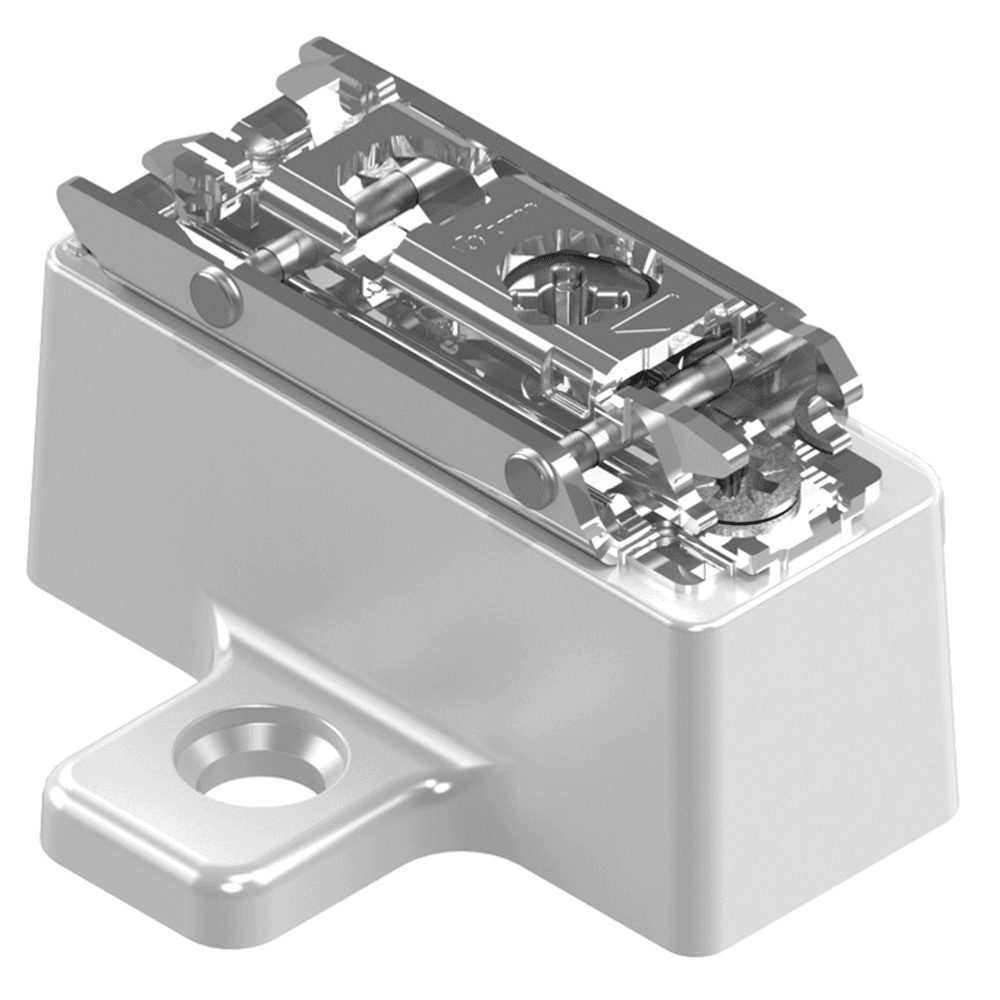

Clip Cam Adjustable Wing Mounting Plate, Nickel-Plated, Screw-On, 19mm
Item # B173H9100.12
•Mfr # 173H9100.12 3/4"
$2.07
/Each
250 items
$1.90/Each
Height: 19mm
Min Order: 1
Quantity Multiple by: 1
Product Details

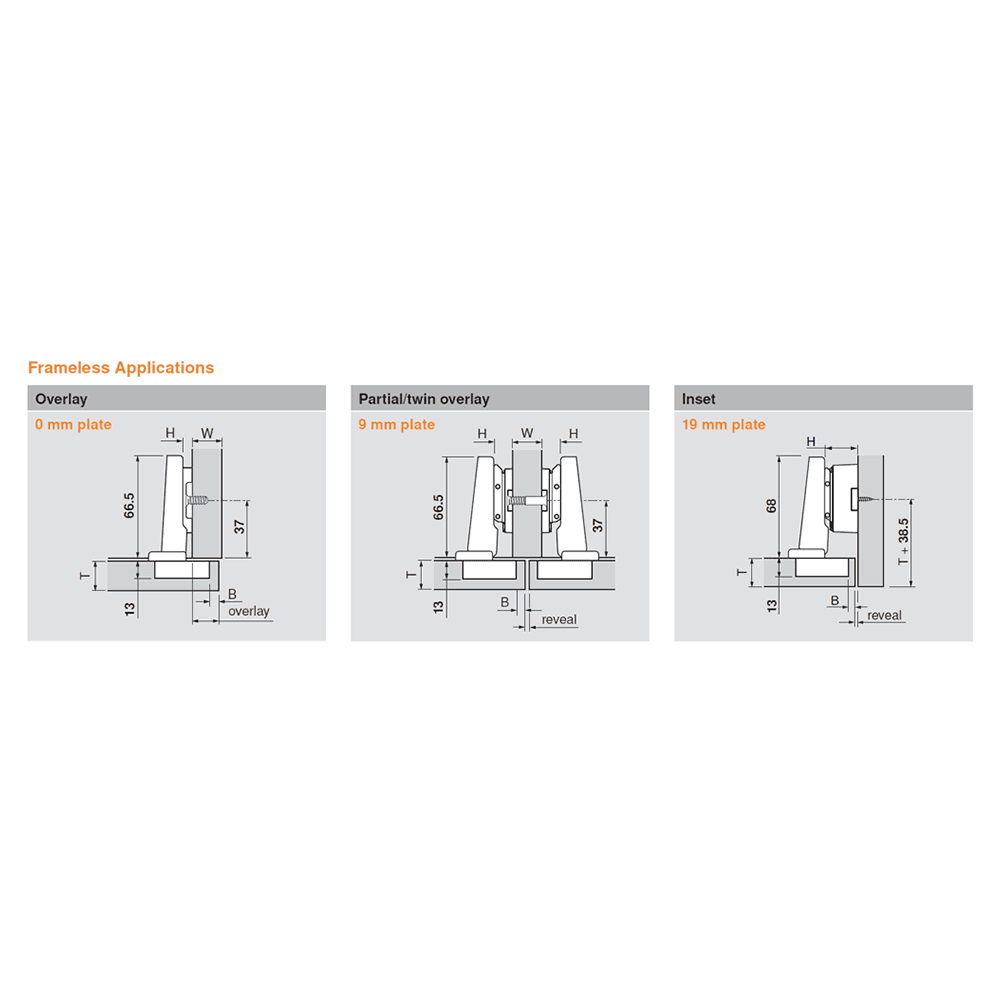

The tried and tested CLIP mechanism offers simple, tool-free hinge assembly. The industry standard for tool-free attachment since 1985. These newly designed mounting plates can be used on frameless and frame cabinet applications. Five plates come in new heights that help avoid blocking out in inset applications, by matching the recess behind the face frame.
Features
• New mounting plate heights with cam height adjustment
• Steel, nickel-plated with zinc adapter

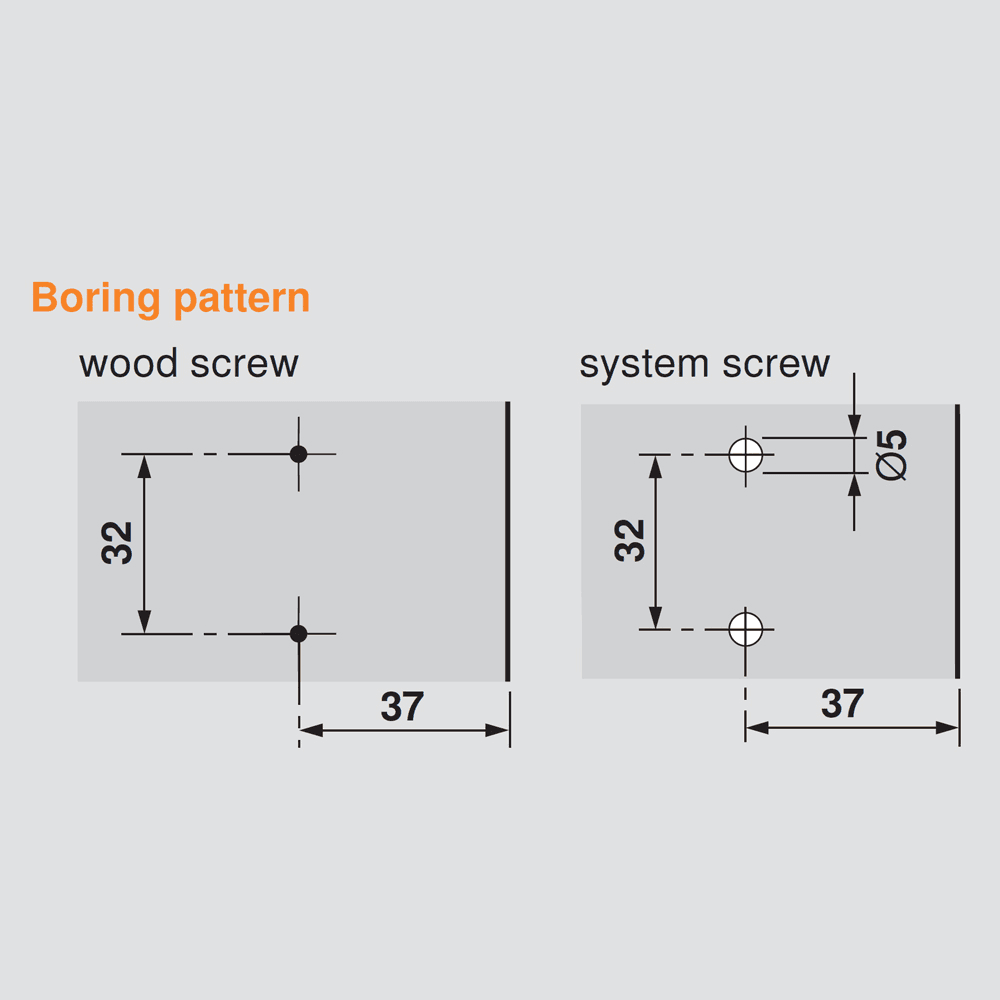

• Attach with #7 x 5/8" wood screws or O5 mm x 13 mm system screws

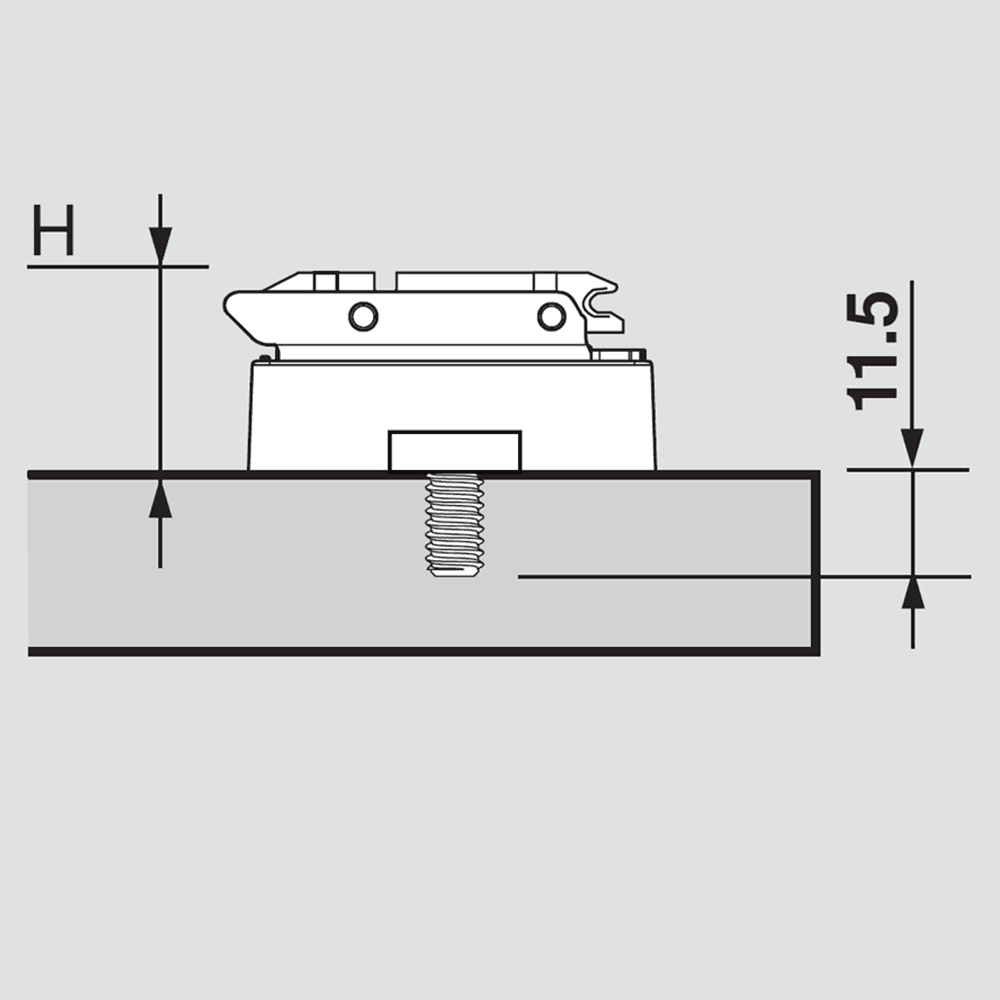

• Cam height adjustment ?2 mm
Features
• New mounting plate heights with cam height adjustment
• Steel, nickel-plated with zinc adapter
• Attach with #7 x 5/8" wood screws or O5 mm x 13 mm system screws
• Cam height adjustment ?2 mm
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Height | 19mm |
| Finish | Nickel-Plated |
| Width | |
| Overlay | |
| Product Type | Wing Mounting Plate |
| Mounting Type | Screw-On |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
