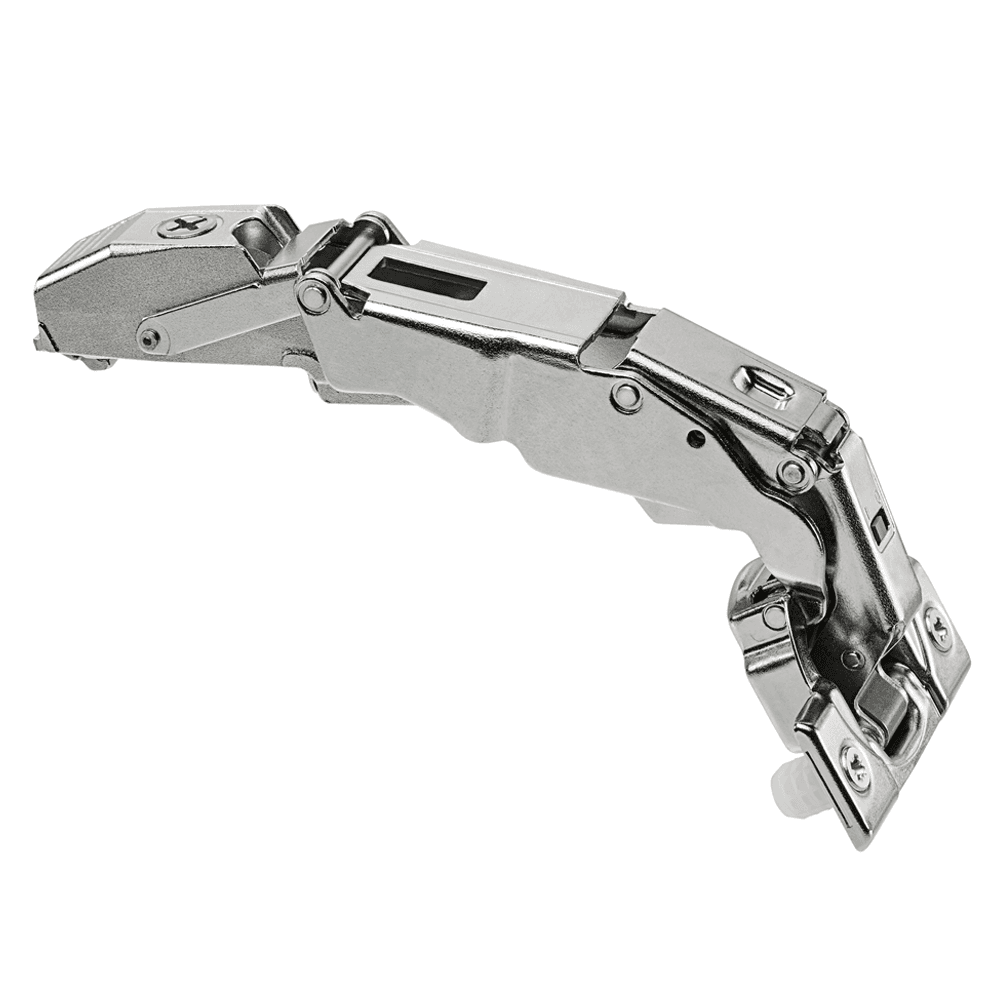

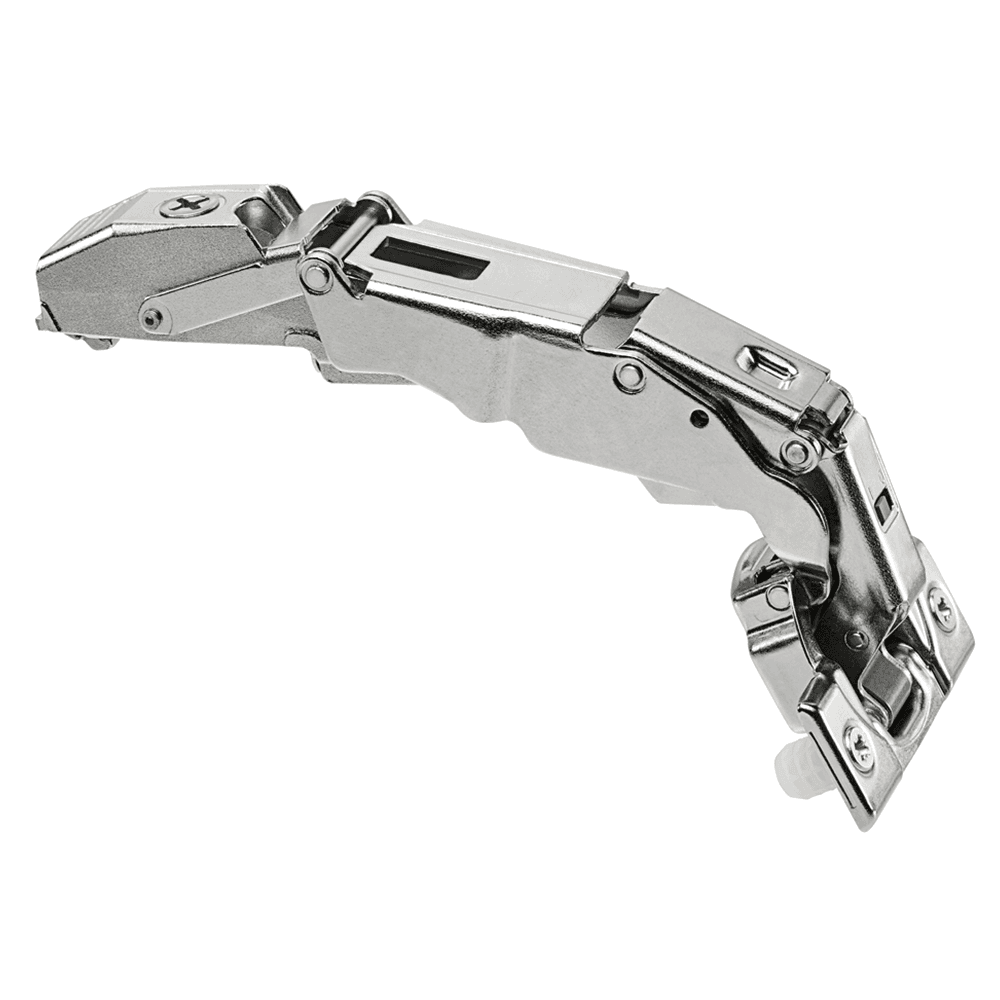

Clip Top 155° Opening Wide-Angled Hinge with BLUMOTION Soft-Closing, 45mm Bore Pattern, Full Overlay, Nickel-Plated, Dowelled
125 items
750 items
Mounting Type: Dowelled
Finish: Nickel-Plated
Product Details
CLIP top hinges are concealed hinges for cabinet doors, meaning they cannot be seen when the door is closed. These hinges are easy to use and they work in almost any hinge application because of the wide variety of mounting plates available. That's right, these Euro hinges can be used in frameless and face frame cabinets. CLIP top hinges can also be easily upgraded with soft closing BLUMOTION making them a flexible and reliable option for any cabinet.
Features:
• 0-protrusion for overlay application (for cabinets with inner pull-outs or pull-out surrounds)
• CLIP top BLUMOTION with integrated BLUMOTION (with deactivation option)
• CLIP top with or without closing mechanism (spring)
• All metal hinge
• 155° opening angle
• 3-dimensional front adjustment
• Convenient spiral-tech depth adjustment
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Mounting Type | Dowelled |
| Overlay | Full Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 155° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |

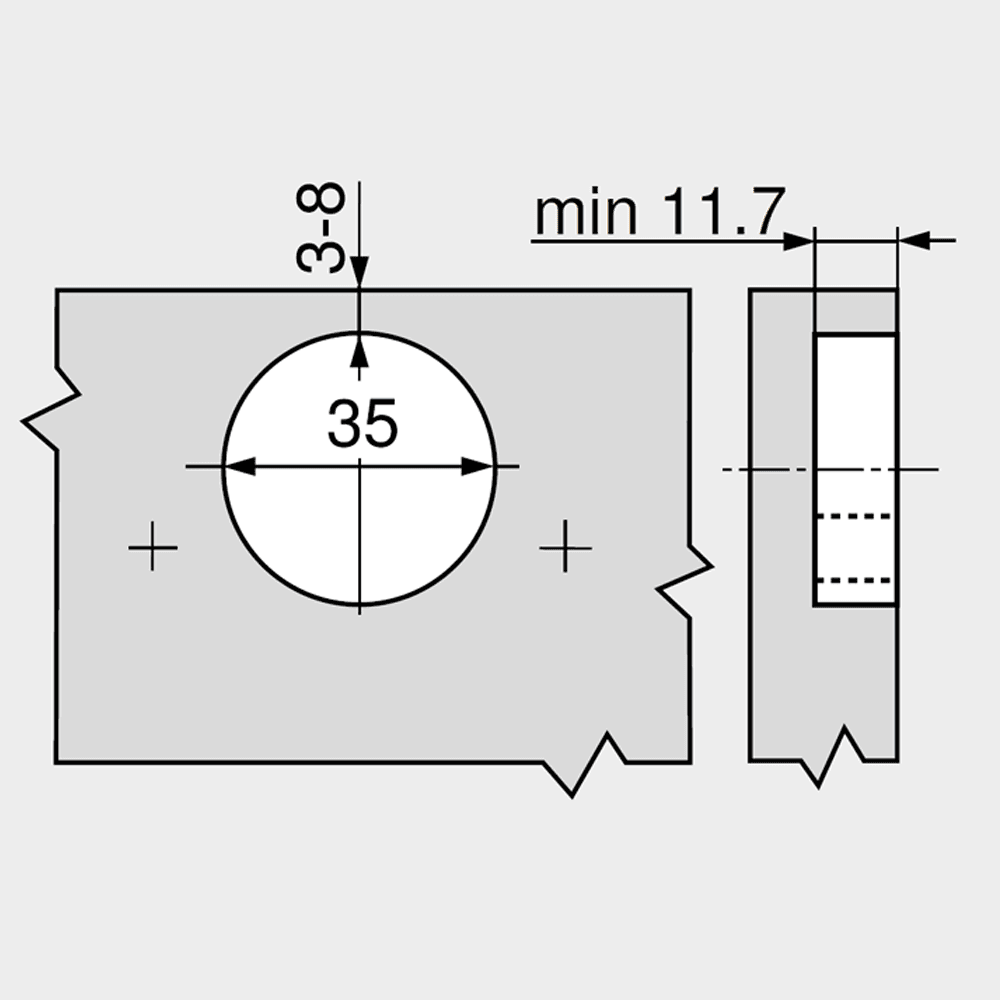

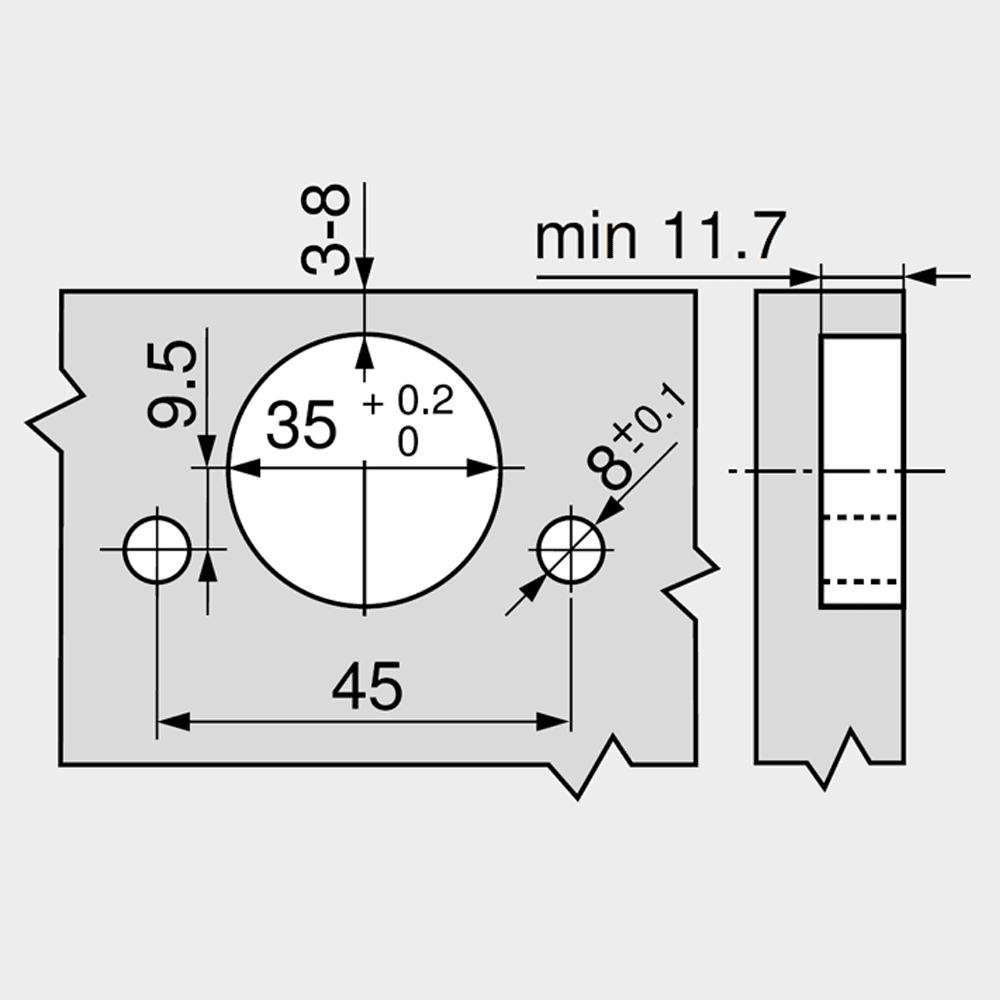

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11.7mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
