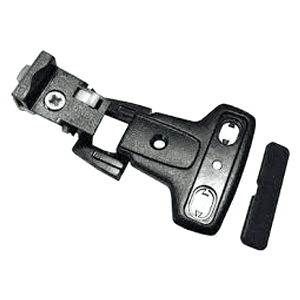

MB 8310 Institutional 270° Opening Hinge Arm, Self-Closing, Full Overlay, Black
Item # GF150145125223
•Mfr # F150145125223
Product Details
Features:
• Institutional Hinge Arm in Black
• Hinges made of zinc die-cast construction for extreme durability
• Recommended for side panel thicknesses of 19mm (3/4")
• Toolless snap-on mounting - quick and easy installation
• All types of hinge mounting (corner and center wall)
• Side-to-side adjustment of - 2mm [1/16"]
• Height adjustment of +/- 2mm [1/16"]
• Cover cap conceals mounting screws
• Designed for frameless cabinet construction
• Opening angles range from 180? to 270?
• Meets ANSI/BHMA A156.9 - 2003 Grade I requirements
• Institutional Hinge Arm in Black
• Hinges made of zinc die-cast construction for extreme durability
• Recommended for side panel thicknesses of 19mm (3/4")
• Toolless snap-on mounting - quick and easy installation
• All types of hinge mounting (corner and center wall)
• Side-to-side adjustment of - 2mm [1/16"]
• Height adjustment of +/- 2mm [1/16"]
• Cover cap conceals mounting screws
• Designed for frameless cabinet construction
• Opening angles range from 180? to 270?
• Meets ANSI/BHMA A156.9 - 2003 Grade I requirements
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 100 |
| Finish | Black |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 270ø |
| Mounting Type | Screw-On |
| Hinge Type | Institutional Hinge Arm |
| Material | Zinc Die-Cast |
