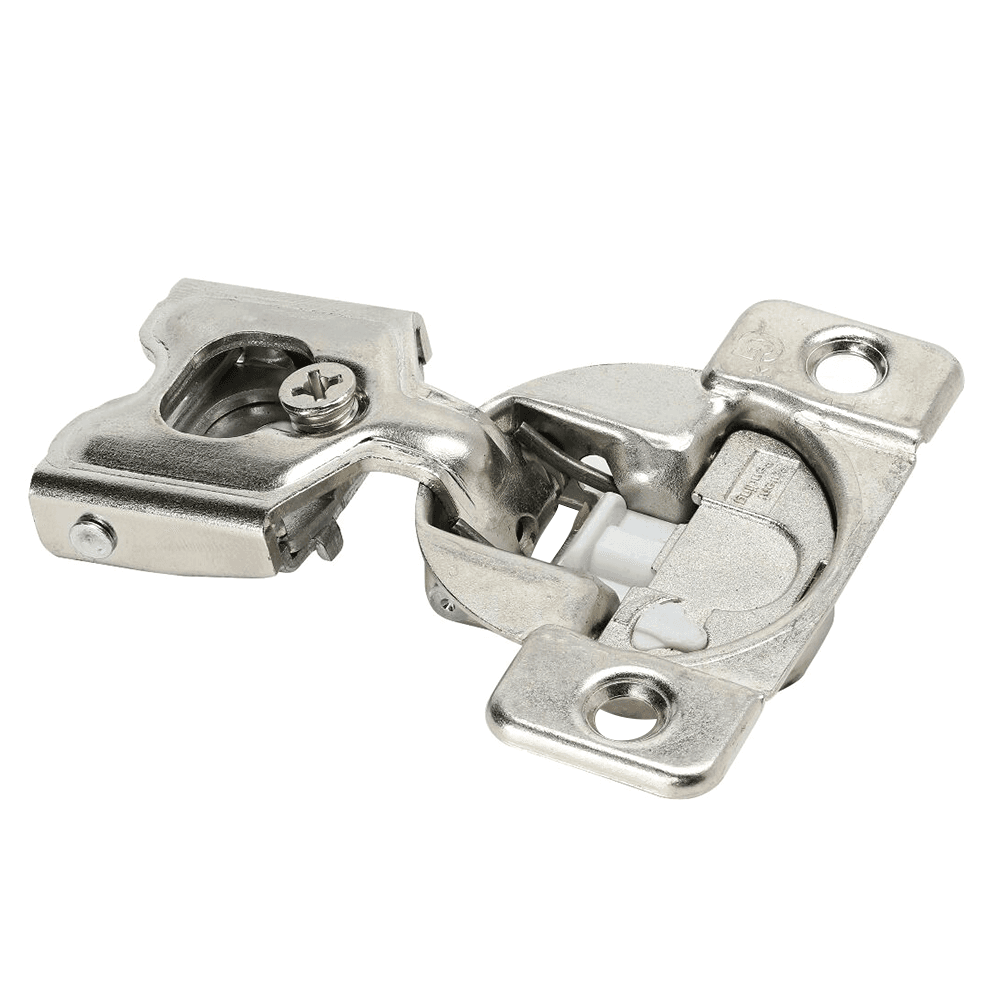

TEC 864 108° Opening Wrap-Around Face Frame Hinge, 45mm Boring Pattern, Soft-Closing, 7/16" Overlay, Screw-On
Item # GTEC2670A-15
•Mfr # 02670A-15
$0.00
/Each
Mounting Type:
Overlay:
Error
Not available online. Please call Customer Service for availability
Min Order: 1
Qty mult. by: 1
Product Details
TEC Soft-close the unique face frame hinge with adjustable soft-close action The TEC Soft-close hinge system is a revolutionary face frame hinge with the soft-closing mechanism pre-mounted into the interior of the hinge cup. An adjustment switch located on the face of the hinge regulates the closing action of the door. Integrated Soft-close combined with the adjustment feature provides functional benefits for today's modern cabinetry. Made in the USA, your doors will close softly, quietly, and consistently with TEC Soft-close.
Features:
• Screw-on mounting hinge, 7/16" overlay
• Soft-close damper is pre-mounted in the hinge cup
• Adjustment switch to regulate closing action
• One piece hinge and base plate combination
• 3 dimensional adjustment
• 11mm cup drilling depth
• Front locating tabs position hinge on face frame
• Cam side adjustment
• Cam depth adjustment
• Height adjustment at mounting screw
• Works with current GRASS insertion machinery
Features:
• Screw-on mounting hinge, 7/16" overlay
• Soft-close damper is pre-mounted in the hinge cup
• Adjustment switch to regulate closing action
• One piece hinge and base plate combination
• 3 dimensional adjustment
• 11mm cup drilling depth
• Front locating tabs position hinge on face frame
• Cam side adjustment
• Cam depth adjustment
• Height adjustment at mounting screw
• Works with current GRASS insertion machinery
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 300 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | 7/16" |
| Closing Type | Soft-Closing |
| Opening Angle | 108° |
| Model | |
| Hinge Type | Wrap-Around Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
