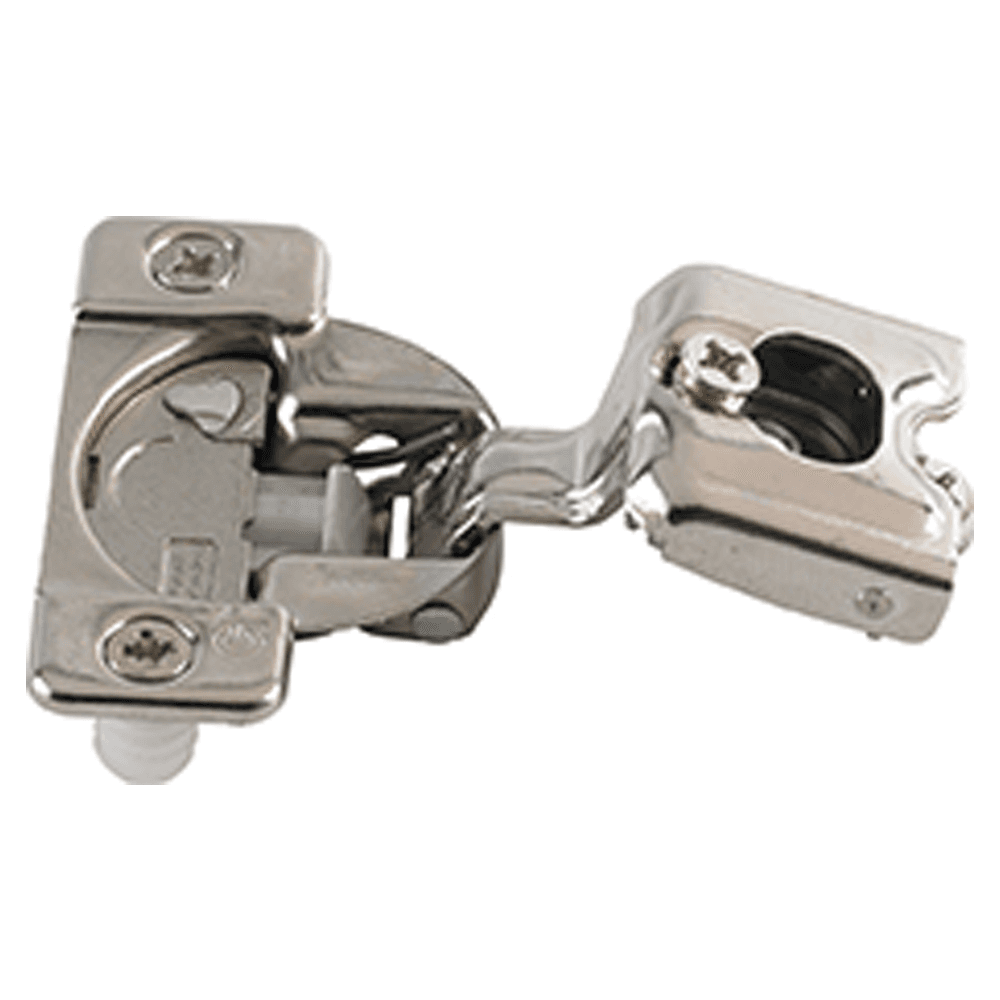

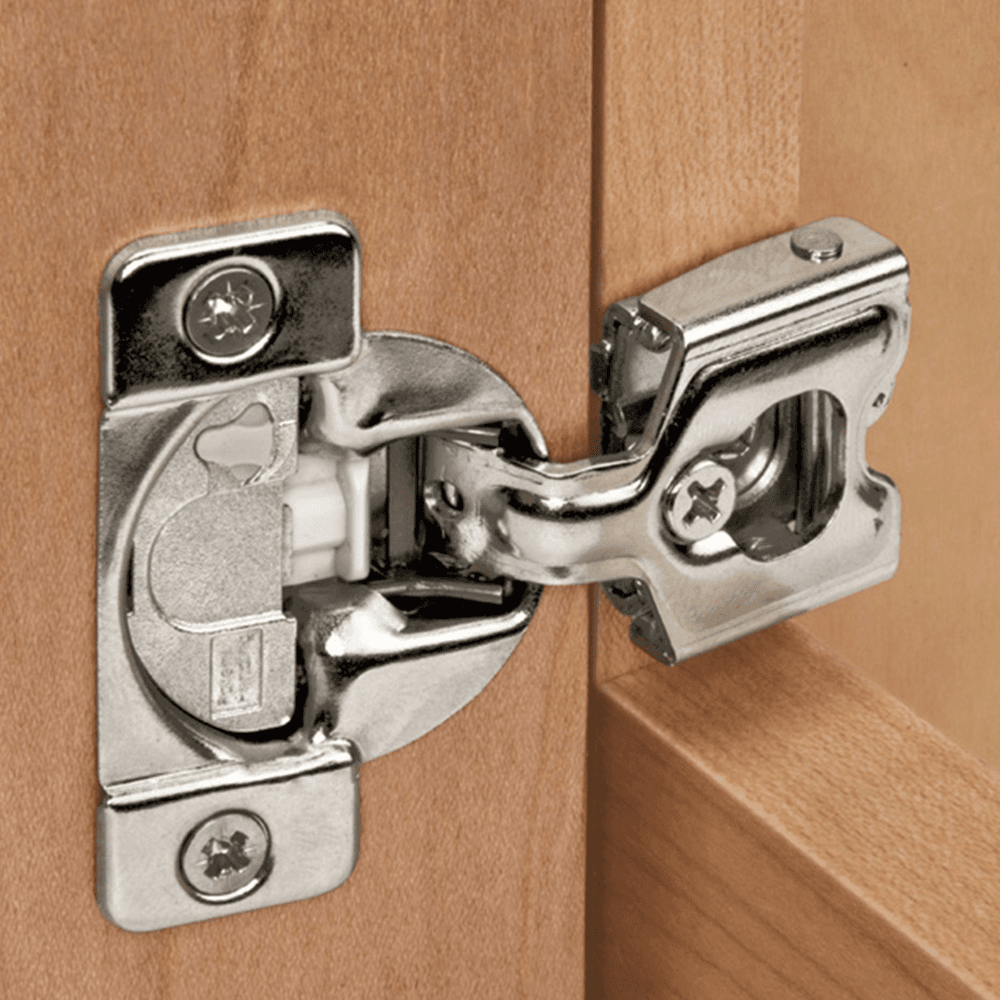

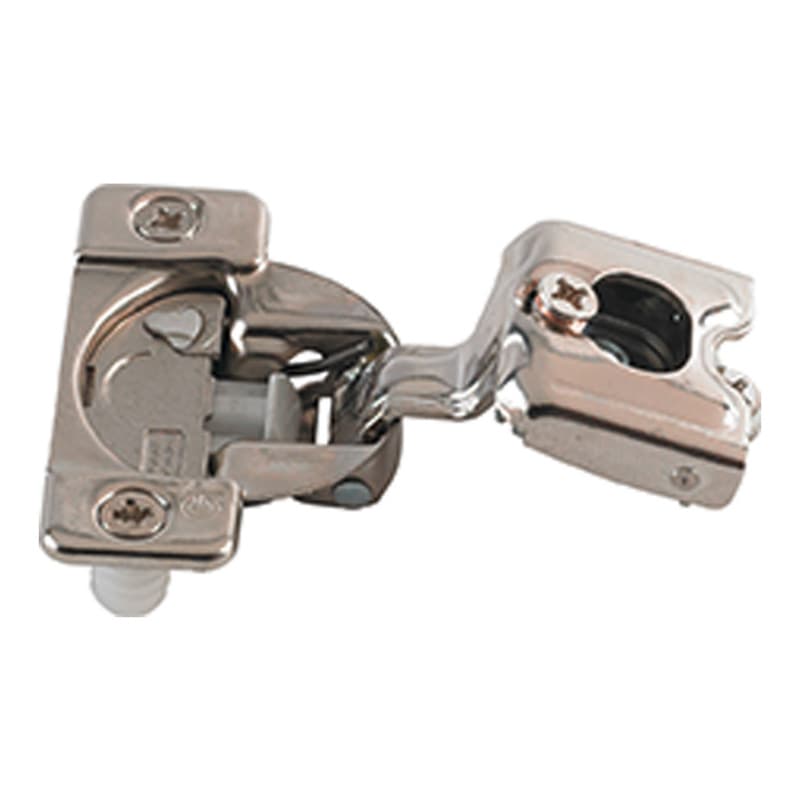

TEC 864 108° Opening Wrap-Around Face Frame Hinge, 45mm Boring Pattern, Soft-Closing, 1" Overlay, Dowelled
Item # GTEC2745-15
•Mfr # 02745A-15
$4.68
/Each
300 items
$3.96/Each
1500 items
$3.82/Each
Mounting Type: Dowelled
Overlay: 1"
Min Order: 1
Qty mult. by: 1
Product Details
Features:
• Soft-close damper is pre-mounted in the hinge cup
• Adjustment switch to regulate closing action
• One piece hinge and base plate combination
• 3-dimensional adjustment
• 11mm cup drilling depth
• Front locating tabs position hinge on face frame
• Cam side adjustment
• Cam depth adjustment
• Height adjustment at mounting screw
• Works with current GRASS insertion machinery
• Soft-close damper is pre-mounted in the hinge cup
• Adjustment switch to regulate closing action
• One piece hinge and base plate combination
• 3-dimensional adjustment
• 11mm cup drilling depth
• Front locating tabs position hinge on face frame
• Cam side adjustment
• Cam depth adjustment
• Height adjustment at mounting screw
• Works with current GRASS insertion machinery
Specifications
| Box Quantity | 300 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | 1" |
| Closing Type | Soft-Closing |
| Opening Angle | 108° |
| Model | |
| Hinge Type | Wrap-Around Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
