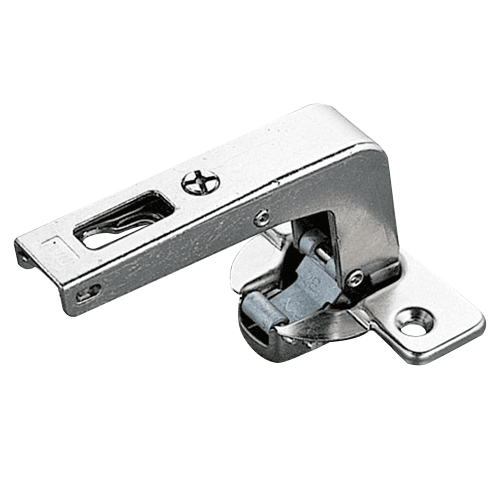

Series 200 Blind Corner 110° Opening Hinge, 45mm Bore Pattern, Self-Closing, Overlay, Nickel-Plated, Logica
Item # SALC2J6N99AM
•Mfr # C2J6N99AM
$4.61
/Each
150 items
$4.24/Each
Mounting Type: Tool-Free
Min Order: 1
Qty mult. by: 1
Product Details
The Series 200 make up an integrated system of hinges developed to provide a solution to any situation involving concealed hinges
Features:
• Logica mount
• Blind corner hinge in Nickel-Plated finish
• Compensating side adjustment from -1.5 mm to +4.5 mm
• Height adjustment ?2 mm
• Depth adjustment with Series 200 mounting plates +2.8 mm
• Depth adjustment with Dome snap-on mounting plates from -0.5 mm to +2.8 mm
• Anti-sliding safety stop
Features:
• Logica mount
• Blind corner hinge in Nickel-Plated finish
• Compensating side adjustment from -1.5 mm to +4.5 mm
• Height adjustment ?2 mm
• Depth adjustment with Series 200 mounting plates +2.8 mm
• Depth adjustment with Dome snap-on mounting plates from -0.5 mm to +2.8 mm
• Anti-sliding safety stop
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Tool-Free |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Blind Corner Hinge |
| Finish | Nickel-Plated |

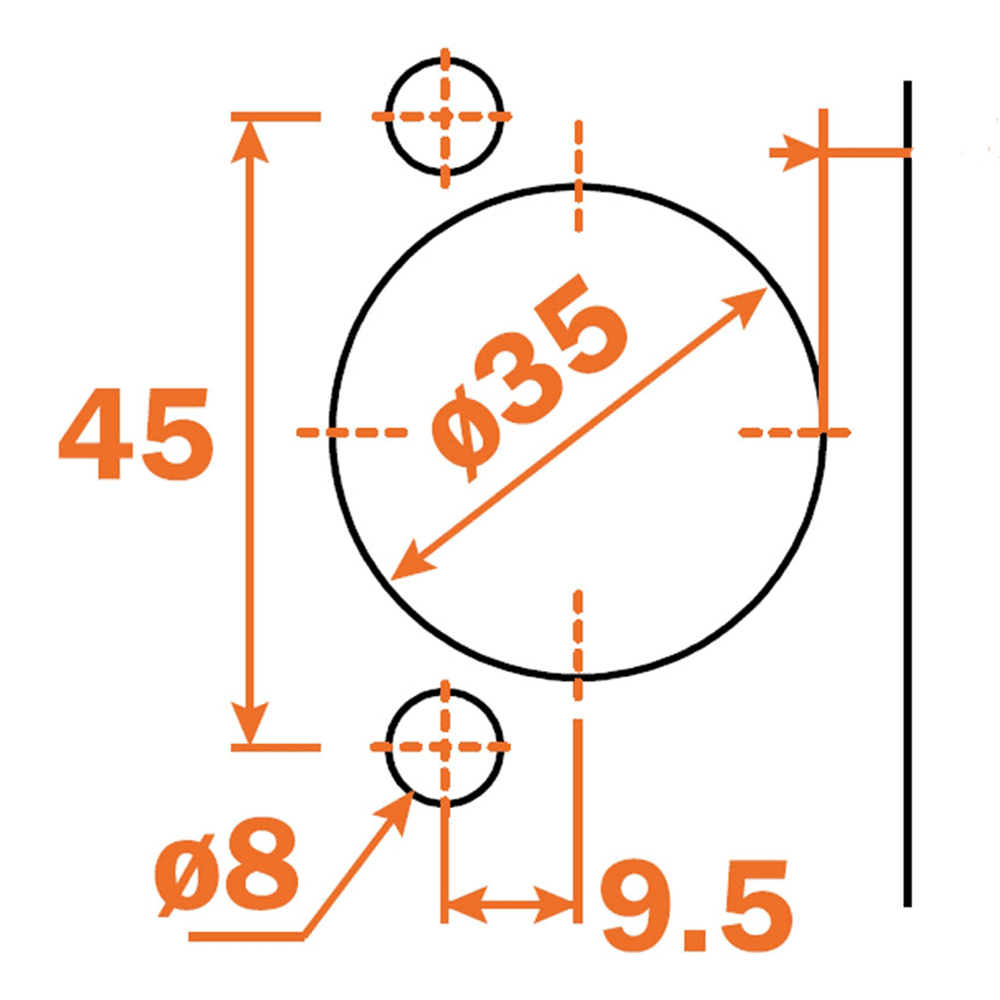

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
