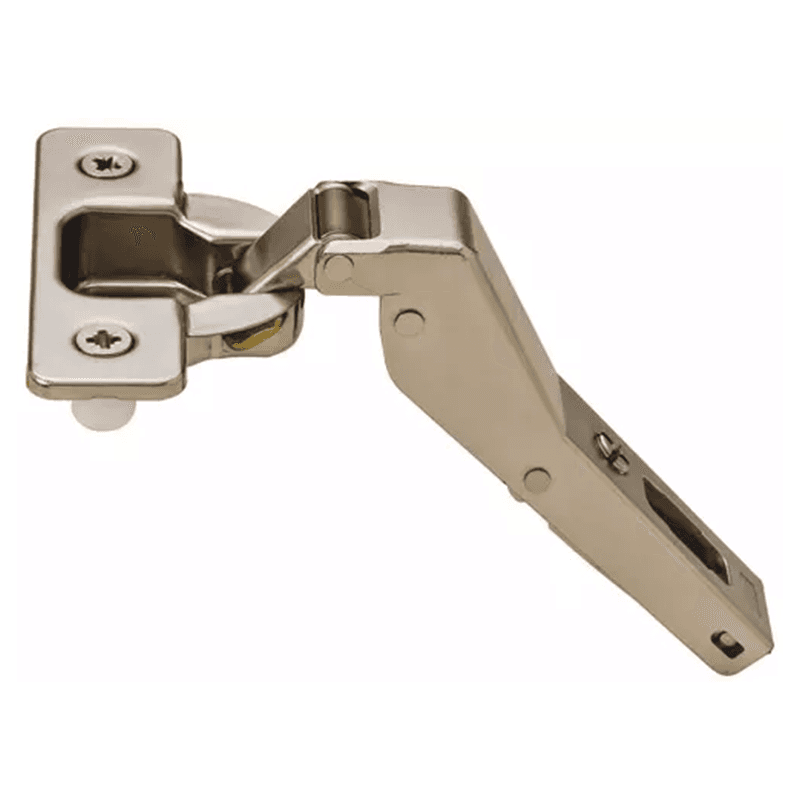

Series 200 +30° Angle Corner 94° Opening Hinge, Self-Closing, Overlay, Nickel-Plated, Dowelled
Item # SALC2RBE99
•Mfr # C2RBE99
Mounting Type: Dowelled
Product Details
Features:
• Dowelled mount
• +30? angled corner hinge
• Series 200 positive angle hinges are designed for use in both residential and commercial cabinets
• Series 200 hinges exceed ANSI/BHMA Grade 2 standards and meet ISO9001 and ISO14001 environmental certifications
• All steel hinge is nickel plated for corrosion resistance and is permanently self lubricating utilizing environmentally safe lubricants
• Cup depth of only 11 mm making the hinge compatible with most cabinet door profiles
• Hinge cup edge drilling distance of 3 mm to 6 mm
• Patented parallel side-to-side adjustment of +4.5 mm to -1.5 mm via hinge arm screw
• Series 200 hinges are designed to work with all Salice mounting plates
• Series 200 hinges are compatible with Smove soft-close devices
• Dowelled mount
• +30? angled corner hinge
• Series 200 positive angle hinges are designed for use in both residential and commercial cabinets
• Series 200 hinges exceed ANSI/BHMA Grade 2 standards and meet ISO9001 and ISO14001 environmental certifications
• All steel hinge is nickel plated for corrosion resistance and is permanently self lubricating utilizing environmentally safe lubricants
• Cup depth of only 11 mm making the hinge compatible with most cabinet door profiles
• Hinge cup edge drilling distance of 3 mm to 6 mm
• Patented parallel side-to-side adjustment of +4.5 mm to -1.5 mm via hinge arm screw
• Series 200 hinges are designed to work with all Salice mounting plates
• Series 200 hinges are compatible with Smove soft-close devices
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 94° |
| Model | |
| Hinge Type | +30° Angled |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type |
