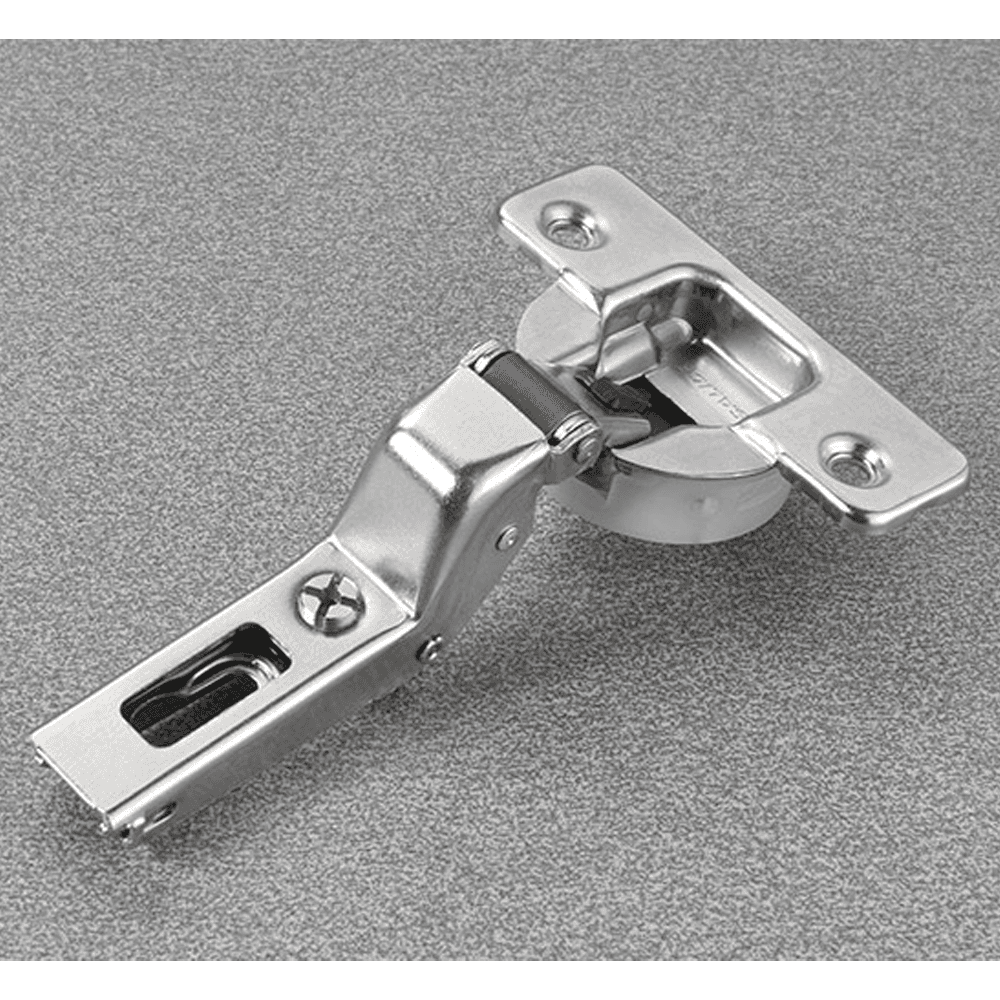

Series 100 105° Opening Hinge, 45mm Bore Pattern, Silentia+ Soft Closing, Inset, Nickel, Screw-On
Item # SALC1P6PE9
•Mfr # C1P6PE9
$3.20
/Each
300 items
$2.96/Each
Min Order: 1
Qty mult. by: 1
Product Details
Features:
• Standard euro hinge in Nickel finish
• Screw-on mount
• Integrated soft-close motion
• New soft close adjustment switch
• Smooth opening with little resistance
• Impervious to temperature extremes
• Edge bore distance (K) from 3mm to 6mm
• Up to 21mm overlay
• For door thickness up to 25mm
• Uniform closing action regardless of door size
• Compatible with all series 200 mounting plates
• Standard 45mm x 9.5mm Salice boring pattern
• Exceeds ANSI/BHMA standards. A156.9-2010
• Standard euro hinge in Nickel finish
• Screw-on mount
• Integrated soft-close motion
• New soft close adjustment switch
• Smooth opening with little resistance
• Impervious to temperature extremes
• Edge bore distance (K) from 3mm to 6mm
• Up to 21mm overlay
• For door thickness up to 25mm
• Uniform closing action regardless of door size
• Compatible with all series 200 mounting plates
• Standard 45mm x 9.5mm Salice boring pattern
• Exceeds ANSI/BHMA standards. A156.9-2010
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | Inset Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 105° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12mm |
| Material | |
| Cabinet Type | Face Frame/Frameless |
