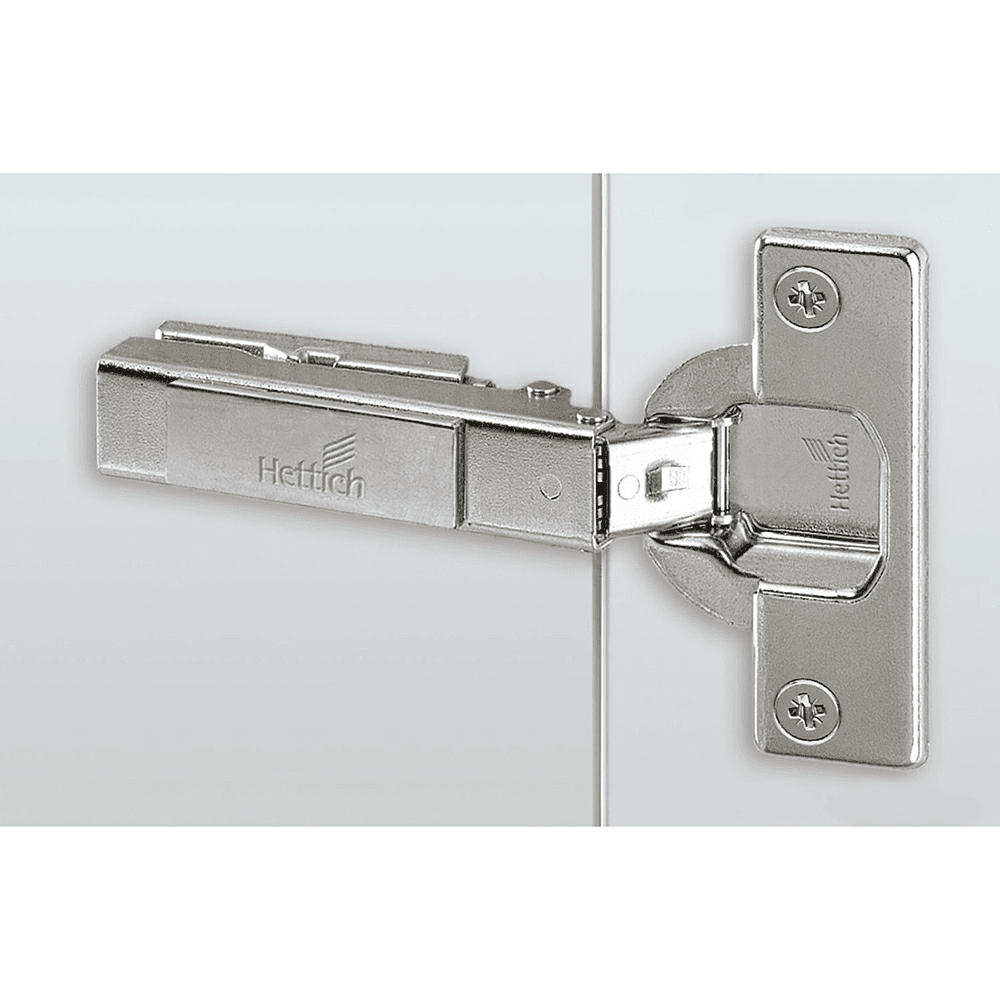

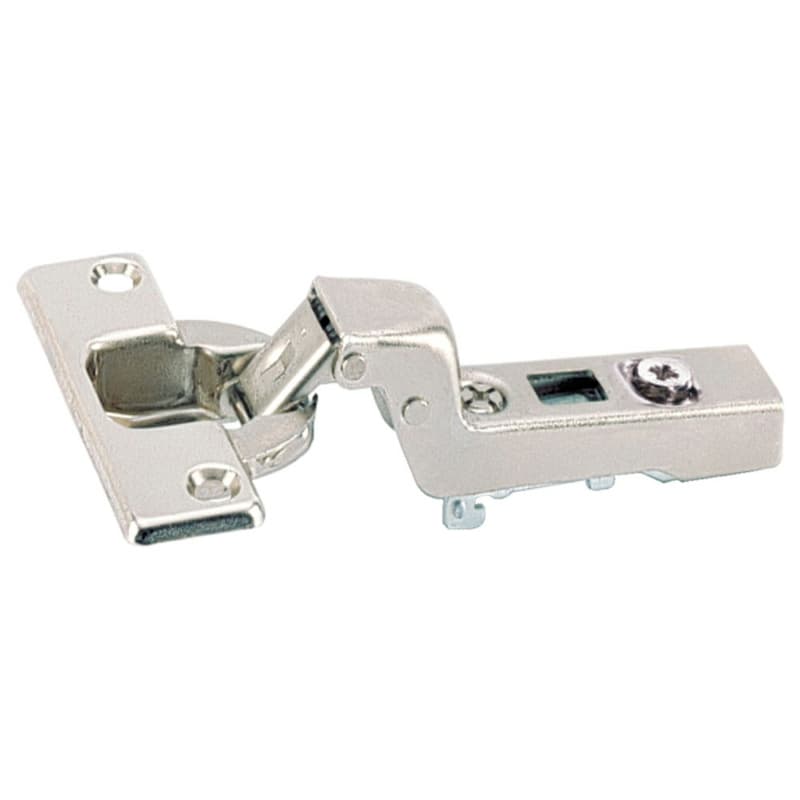

Intermat 9936 95° Opening Thick Door Hinge, 45mm Bore Pattern, Self-Closing, Inset, Nickel-Plated, Dowelled
Item # HET1058447
•Mfr # 1058447
$1.76
/Each
200 items
$1.70/Each
Mounting Type: Dowelled
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• Dowelled mounting type
• Intermat thick door hinge in Nickel-Plated finish, door thickness up to 32mm
• With self closing feature (Intermat 9936)
• Quality classification under EN 15570, Level 2
• Opening angle 95?
• For door thickness 14mm - 32mm
• Door mounting option inset
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +2.5mm / -1.5mm
• Height adjustment at mounting plate
• Dowelled mounting type
• Intermat thick door hinge in Nickel-Plated finish, door thickness up to 32mm
• With self closing feature (Intermat 9936)
• Quality classification under EN 15570, Level 2
• Opening angle 95?
• For door thickness 14mm - 32mm
• Door mounting option inset
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +2.5mm / -1.5mm
• Height adjustment at mounting plate
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Mounting Type | Dowelled |
| Overlay | Inset Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 95° |
| Model | |
| Hinge Type | Thick Door Hinge |
| Finish | Nickel-Plated |

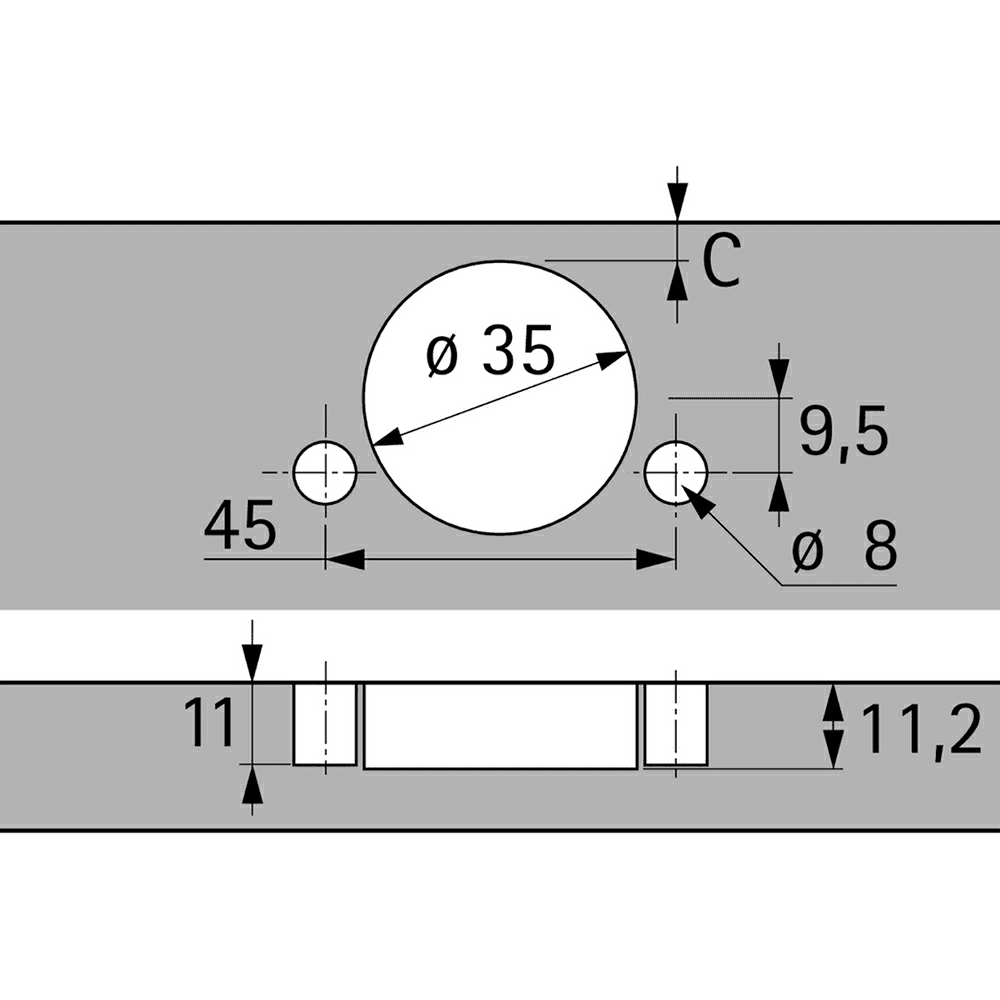

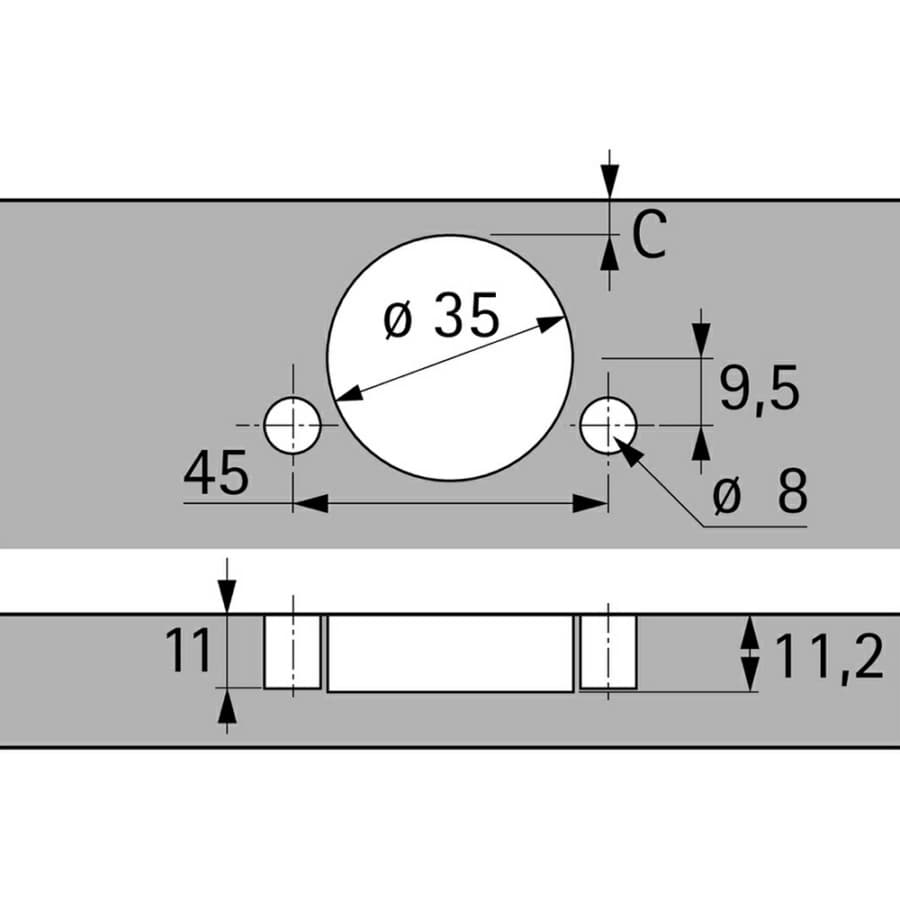

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 10.5mm |
| Material | Steel |
| Cabinet Type |
