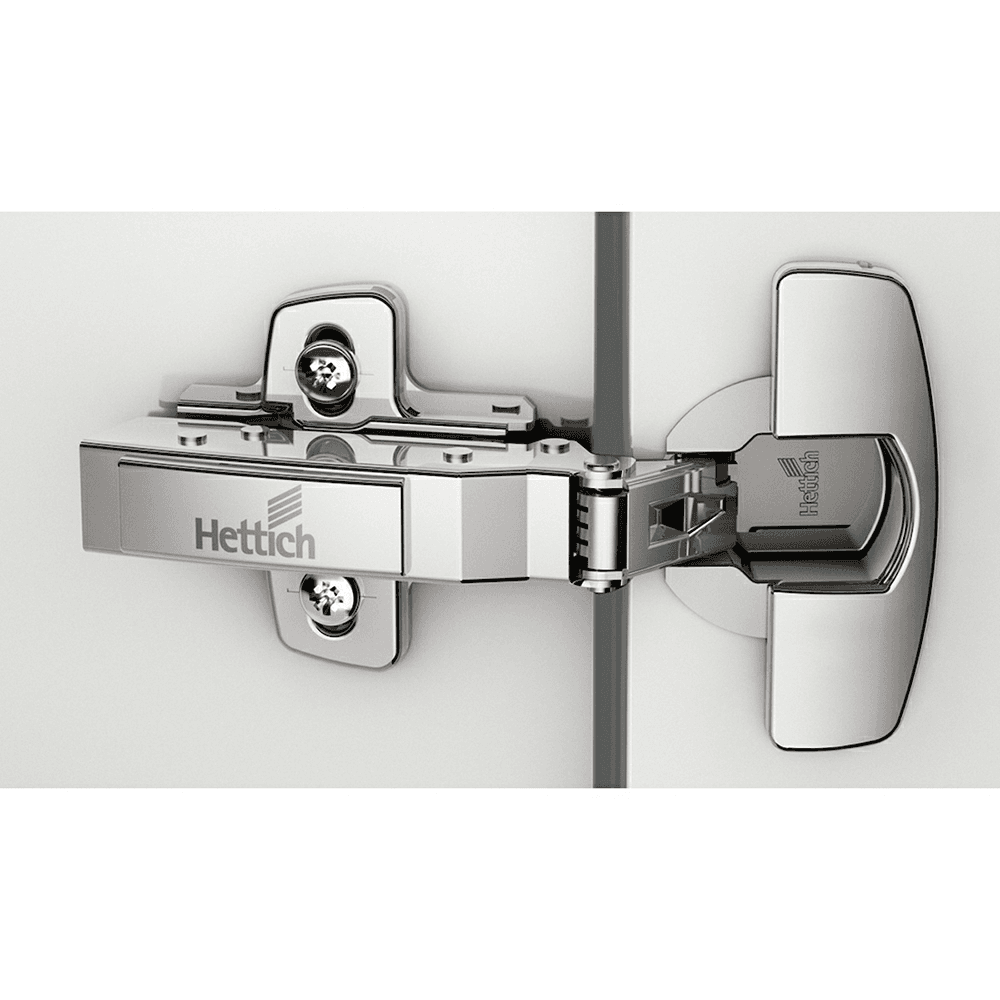

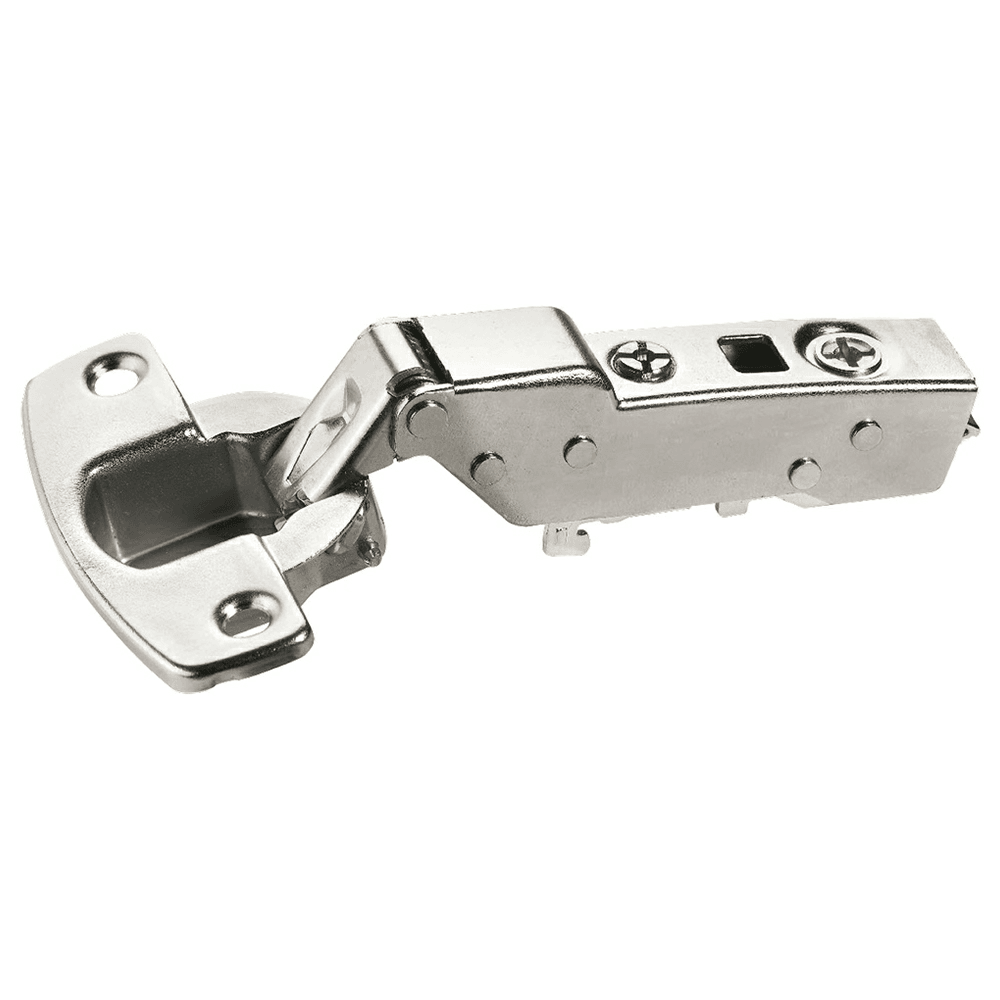

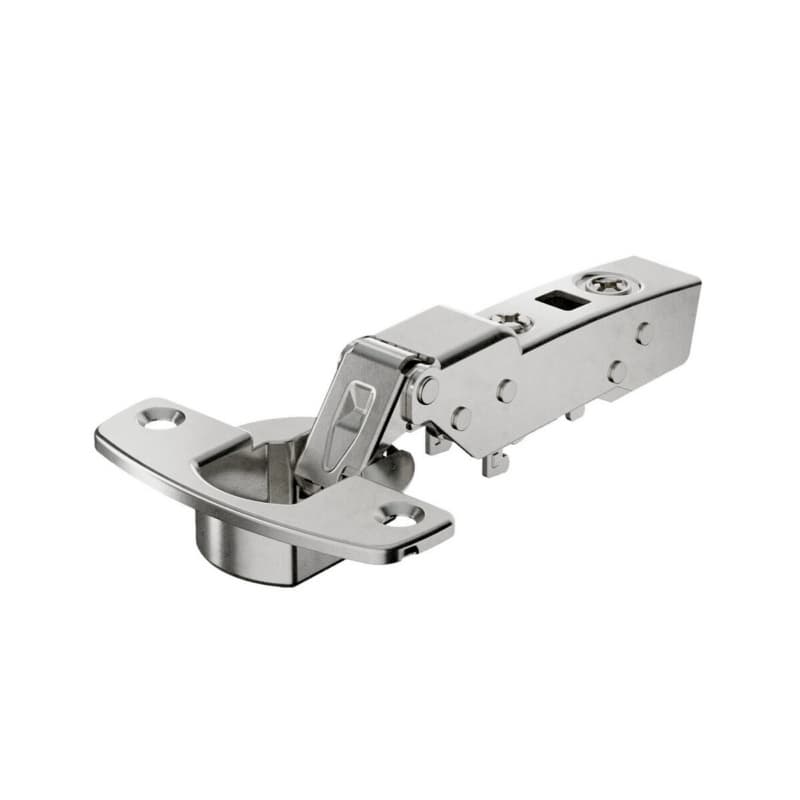

Sensys 8645i 110° Opening Face Frame Hinge with Integrated Silent System, 45mm Boring Pattern, Self-Closing, Half Overlay, Screw-On
Item # HET9073618
•Mfr # 9073618
Mounting Type: Screw-On
Product Details
Features:
• Screw-on mounting type
• With integrated silent system, with self closing feature (Sensys 8645i)
• Quality classification under EN 15570, Level 3
• For door thickness 15mm - 24mm

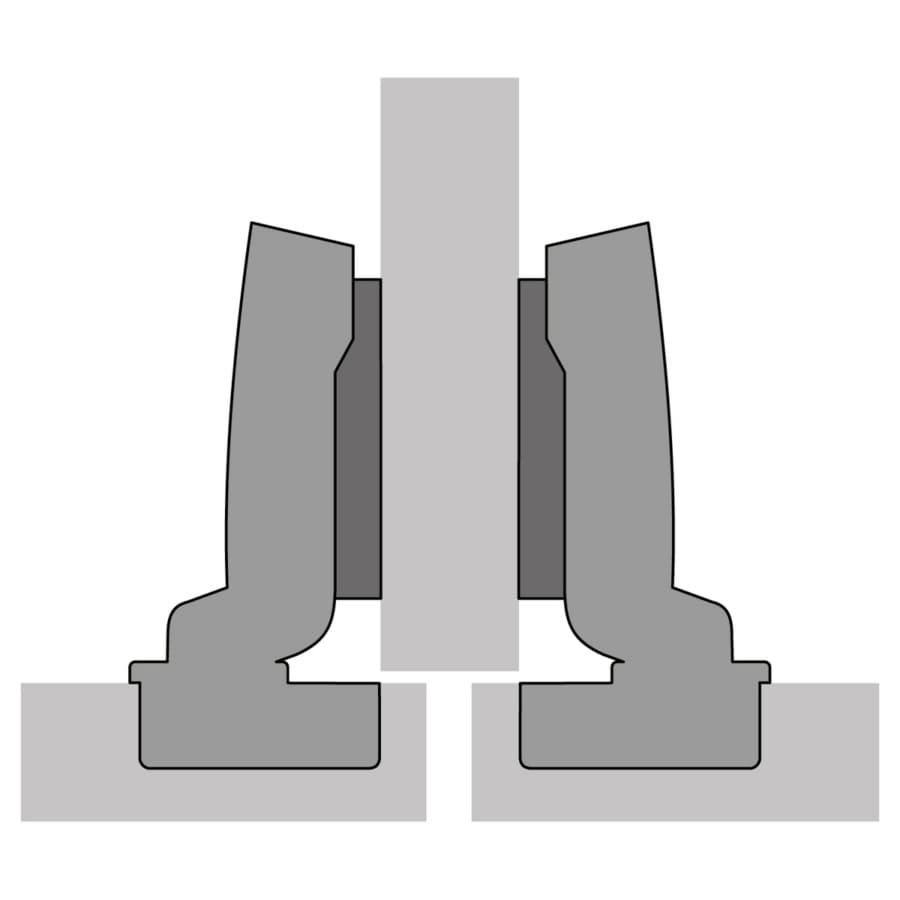

• Door mounting option half overlay
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +3mm / -2mm
• Height adjustment at mounting plate
• Screw-on mounting type
• With integrated silent system, with self closing feature (Sensys 8645i)
• Quality classification under EN 15570, Level 3
• For door thickness 15mm - 24mm
• Door mounting option half overlay
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +3mm / -2mm
• Height adjustment at mounting plate
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | Half Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Face Frame Hinge |
| Finish | Nickel-Plated |

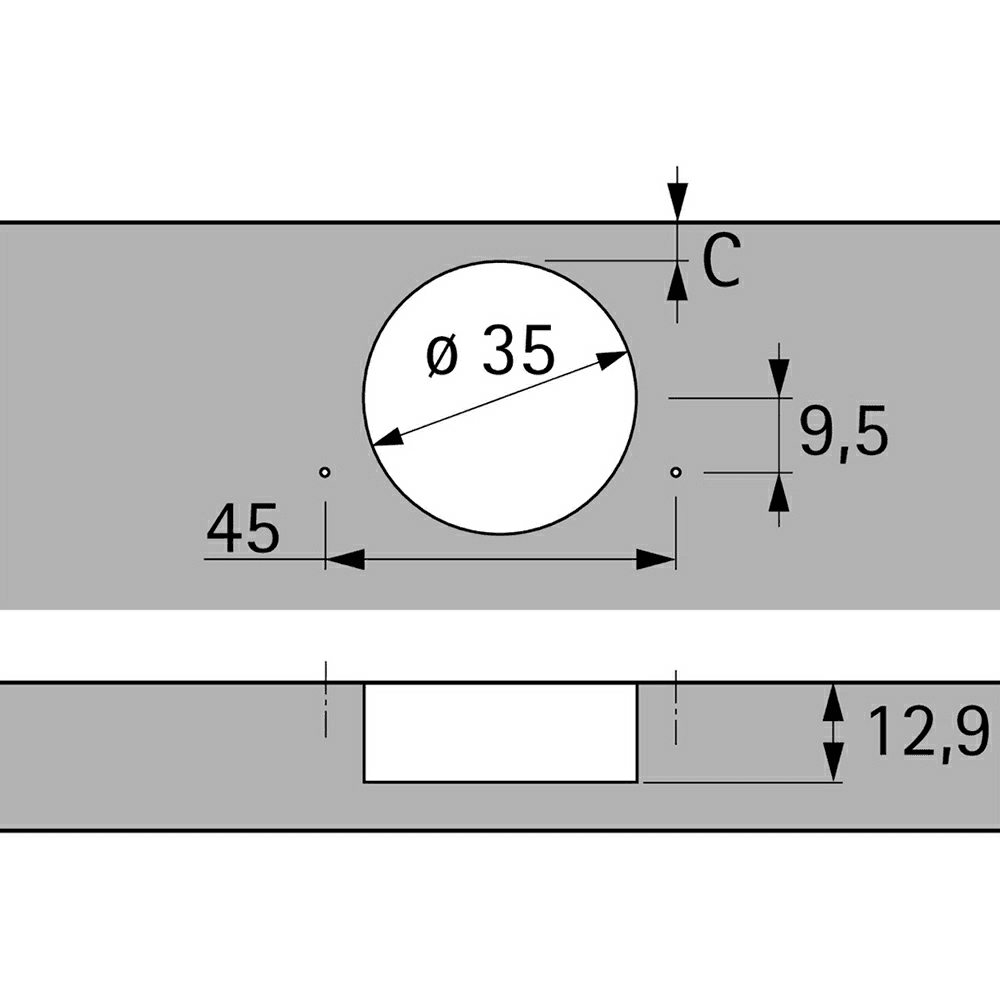

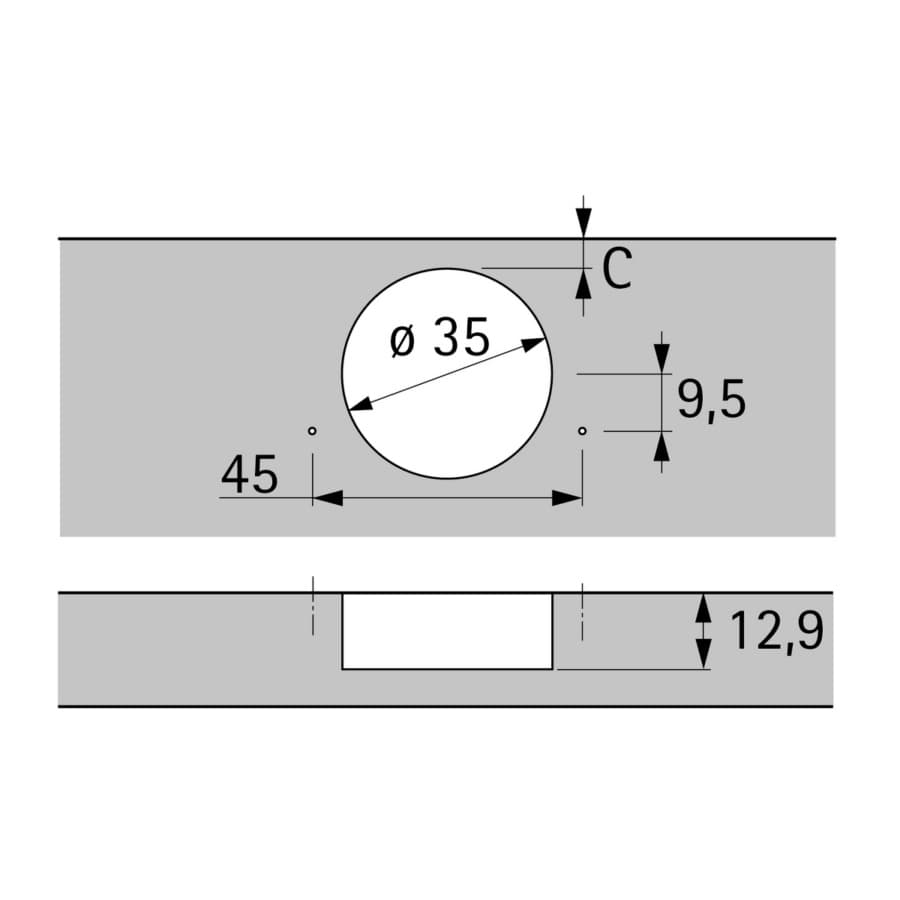

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.8mm |
| Material | Steel |
| Cabinet Type |
