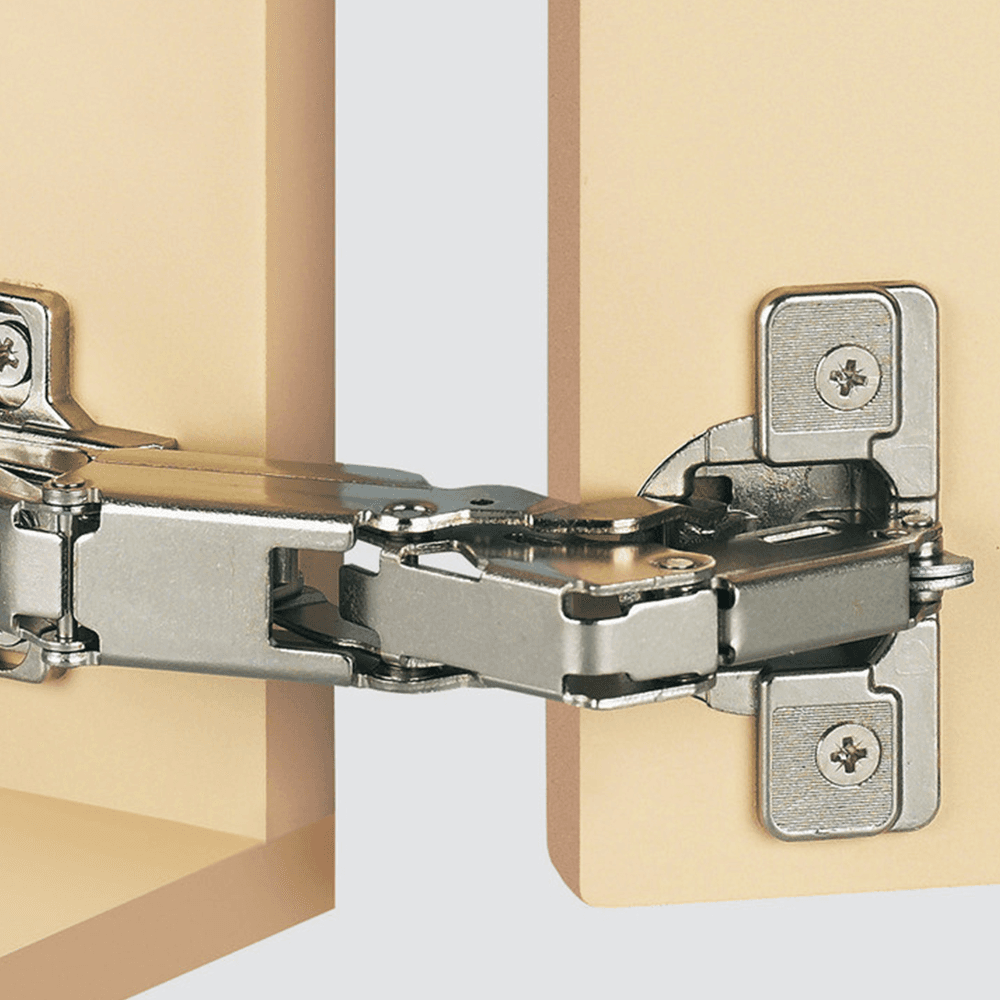

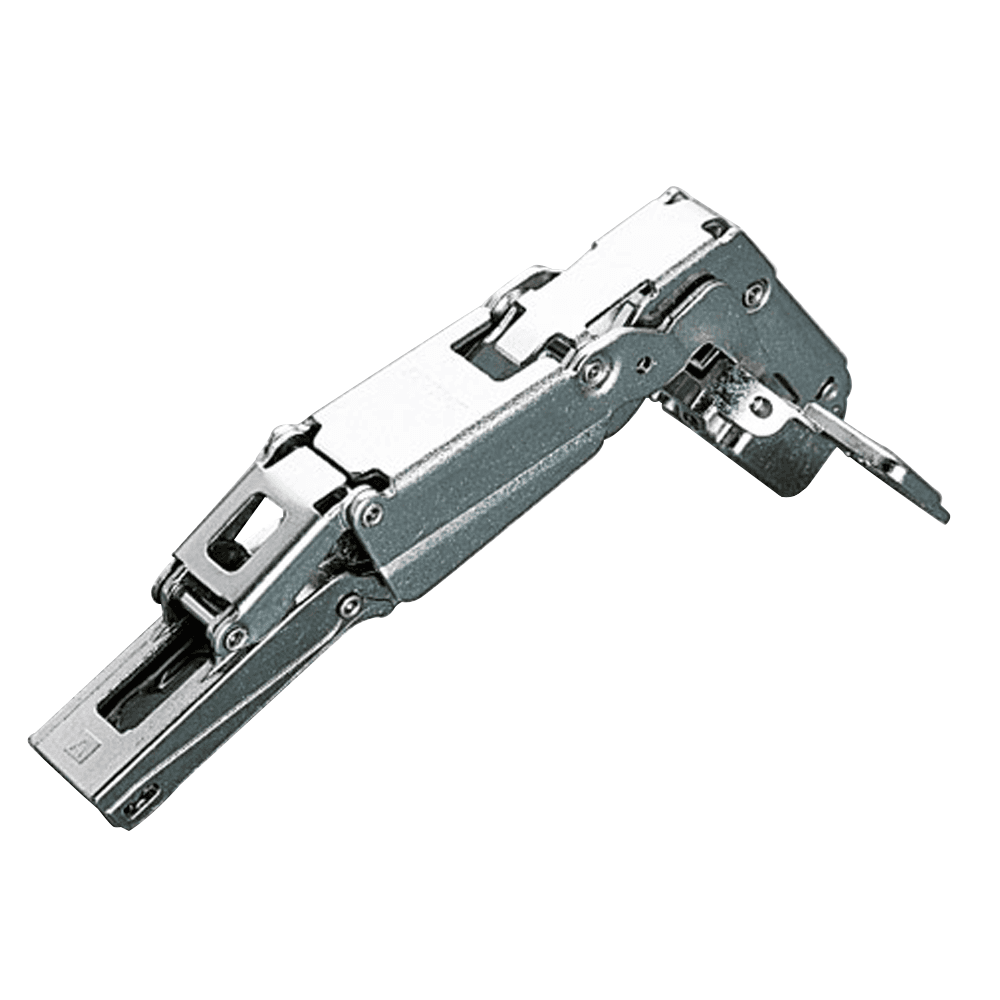

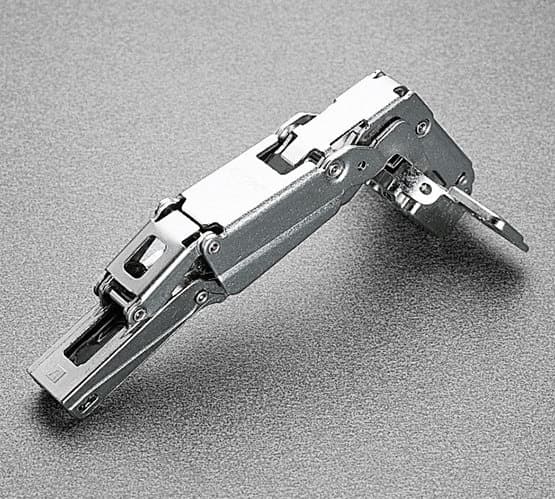

Series 200 165° Opening Hinge, 45mm Bore Pattern, Self-Closing, Full Overlay, Nickel-Plated, Rapido
Item # SALC27FA99
•Mfr # C27FA99
$4.58
/Each
100 items
$4.22/Each
Mounting Type: Expanding Dowels
Min Order: 1
Qty mult. by: 1
Product Details
Series 200 hinges are for thicker doors. They feature an integrated soft-close mechanism in the hinge cup. Bright nickel plated steel cup and arm.
Features:
• Compensating side adjustment from -1.5 mm to +4.5 mm
• Height adjustment ?2 mm
• Depth adjustment with Series 200 mounting plates +2.8 mm
• Depth adjustment with Domi snap-on mounting plates from -0.5 mm to +2.8 mm
• Anti-sliding safety stop
• Symmetrical and asymmetrical bright nickel plated steel or die-cast Series 200 mounting plates
• Snap-on assembly on Domi mounting plates
• Positioning with pre-determined stop on traditional Series 200 mounting plates
• Use POZIDRIVE No. 2 screwdrivers for all screws.
Features:
• Compensating side adjustment from -1.5 mm to +4.5 mm
• Height adjustment ?2 mm
• Depth adjustment with Series 200 mounting plates +2.8 mm
• Depth adjustment with Domi snap-on mounting plates from -0.5 mm to +2.8 mm
• Anti-sliding safety stop
• Symmetrical and asymmetrical bright nickel plated steel or die-cast Series 200 mounting plates
• Snap-on assembly on Domi mounting plates
• Positioning with pre-determined stop on traditional Series 200 mounting plates
• Use POZIDRIVE No. 2 screwdrivers for all screws.
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Expanding Dowels |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 165° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
