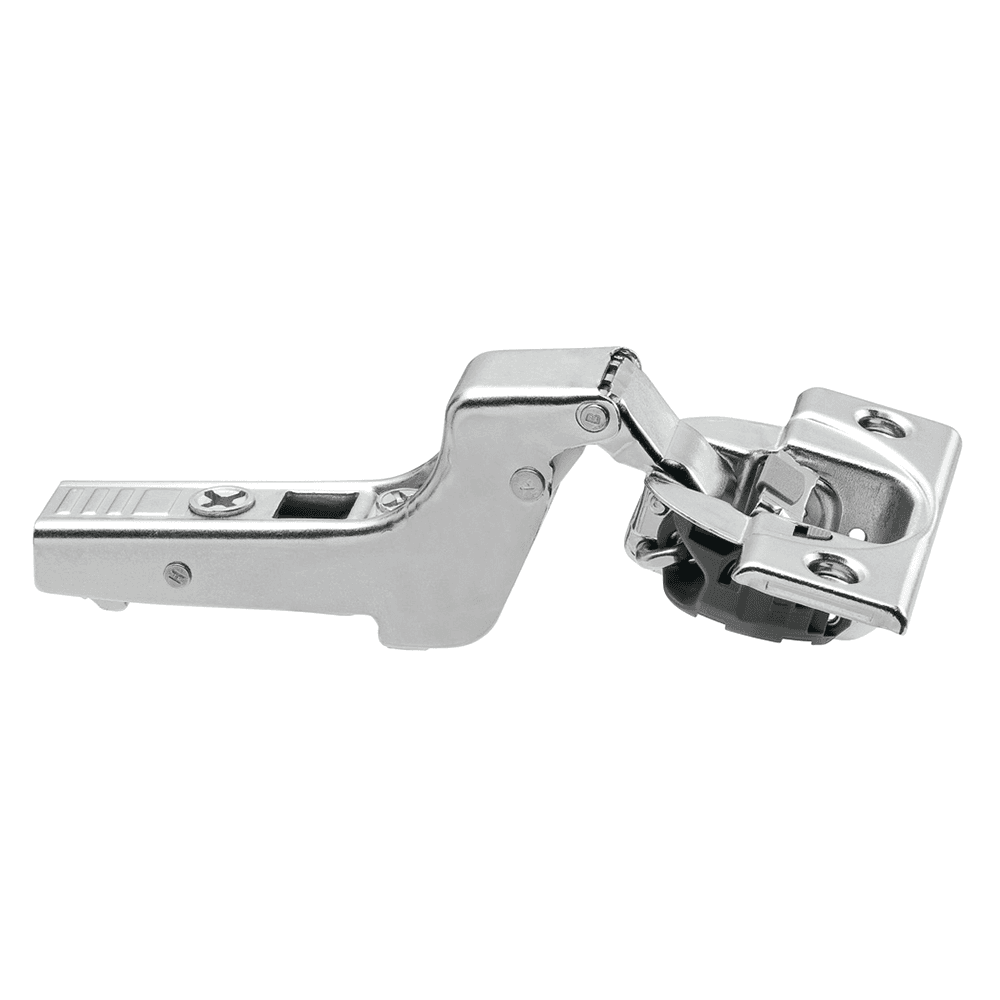

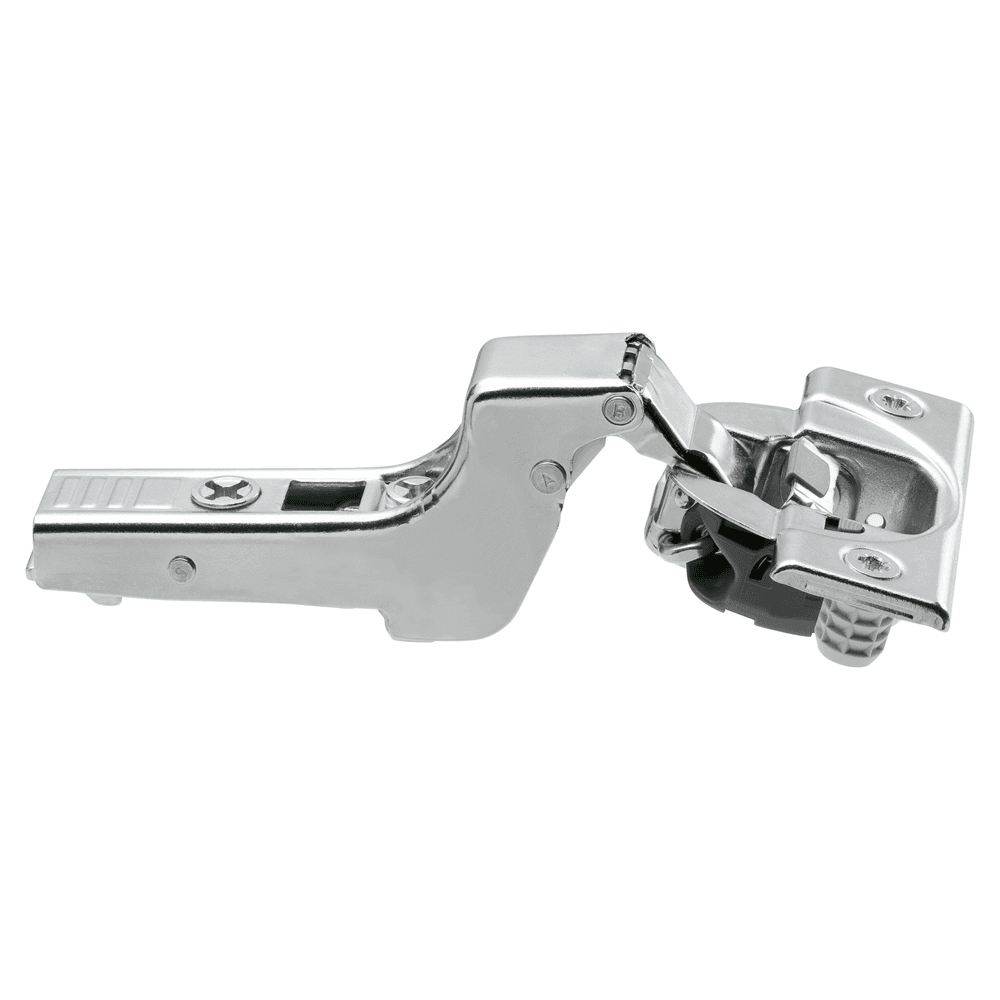

Clip Top 110° Opening Hinge with BLUMOTION Soft-Closing, 45mm Bore Pattern, Inset, Nickel-Plated, Dowelled
250 items
1250 items
Mounting Type: Dowelled
Finish: Nickel-Plated
Product Details
Silent and effortless, that's how cabinet doors close with Blum hinges - regardless of the weight or closing speed. CLIP top BLUMOTION hinges have the soft close mechanism integrated in the hinge cup, and continues to provide the quality of motion you have come to expect from Blum.
Features:
• BLUMOTION integrated into the hinge cup
• Deactivation switch for small/light doors
• For door thicknesses up to 26mm
• Overload safety feature
• 86° angle restriction clip available
• Compatible with existing CLIP mounting plates and hinge arm cover caps
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 250 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Inset Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |

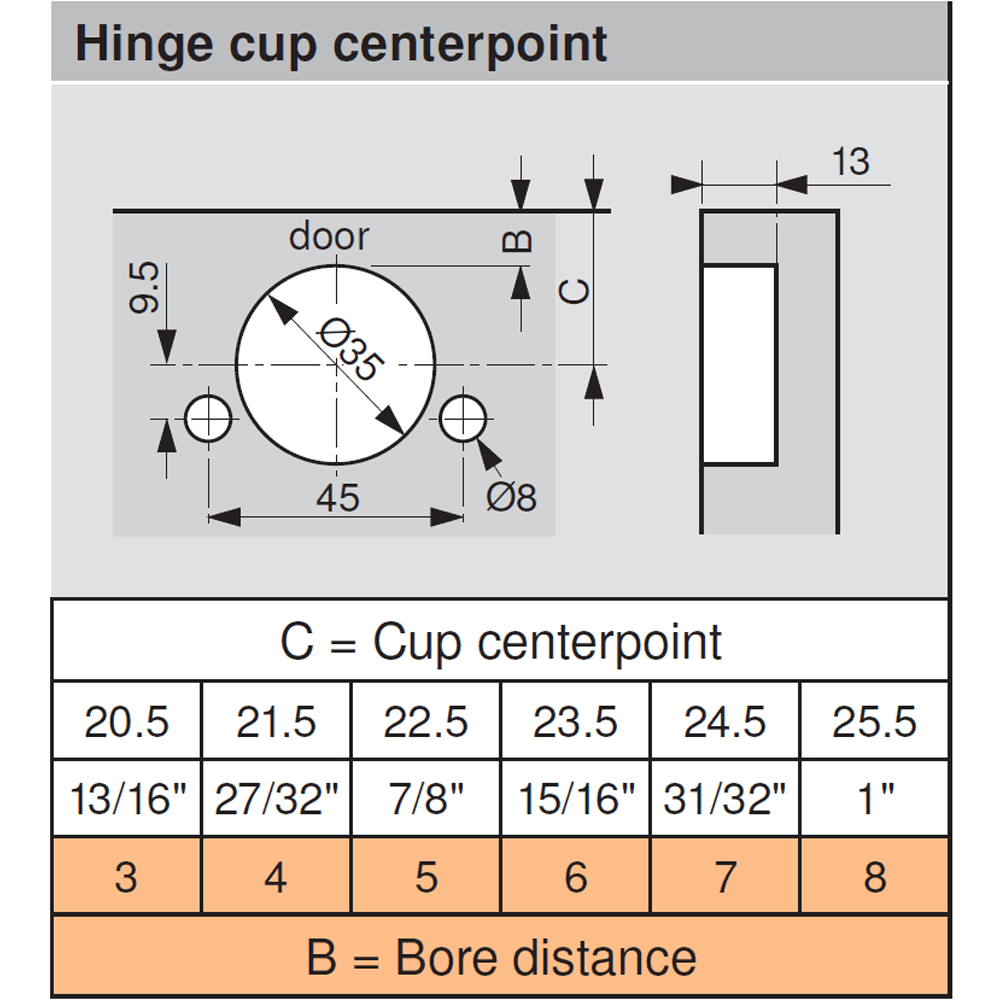

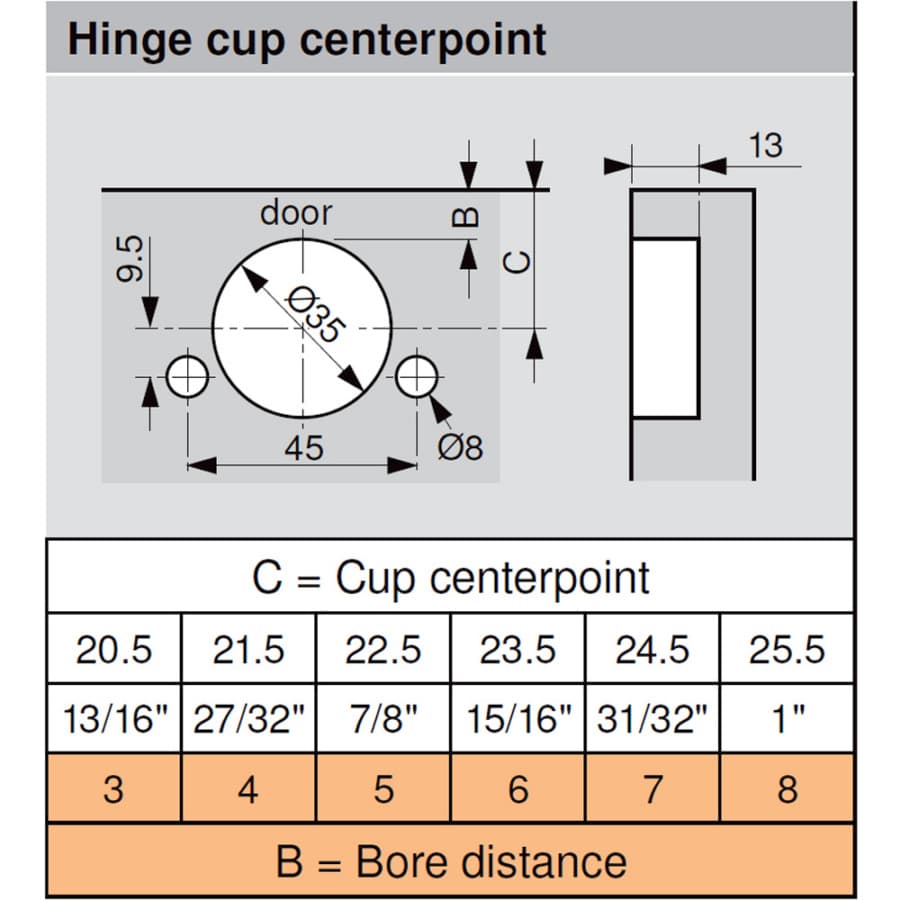

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 13mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
