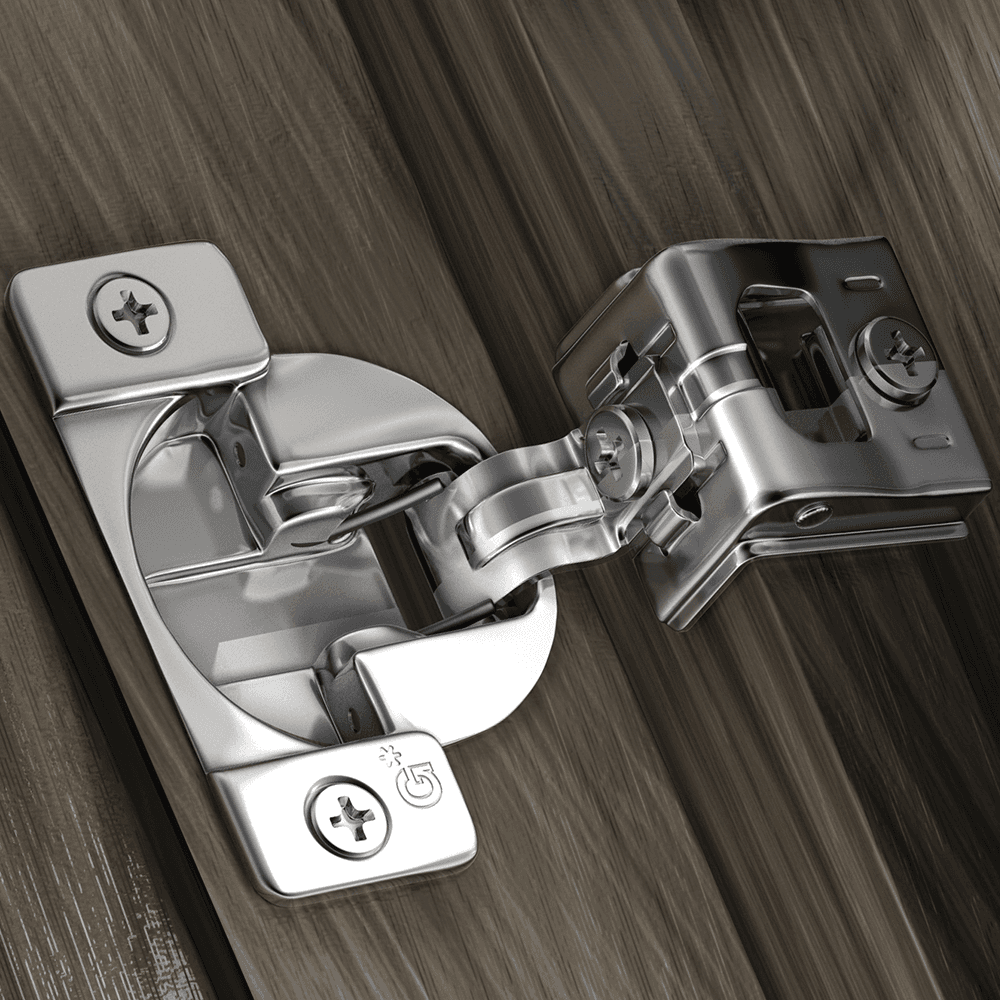

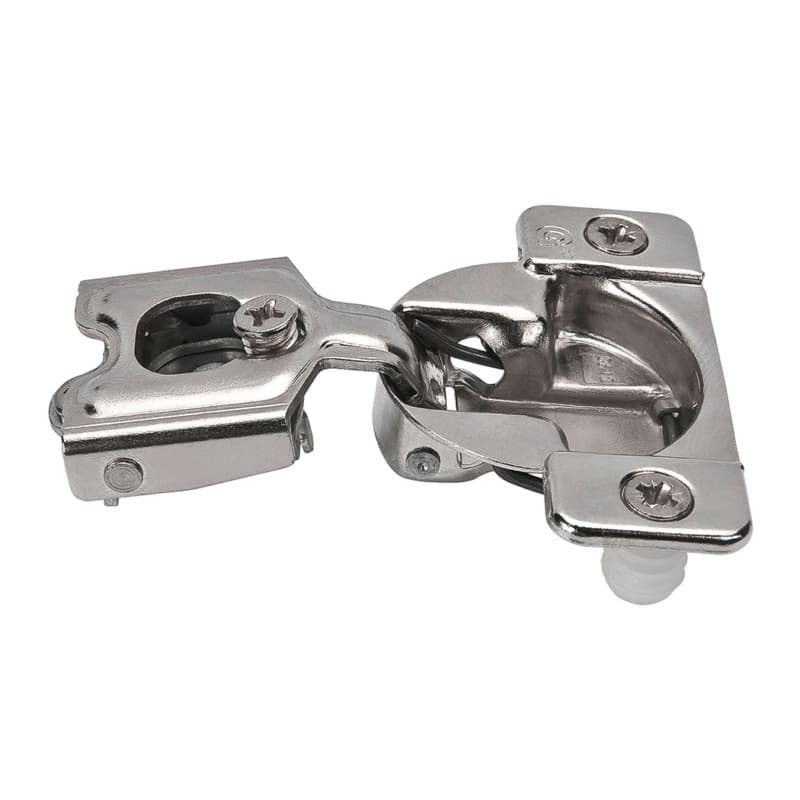

TEC 864 108° Opening Side-Mount Face Frame Hinge, 45mm Boring Pattern, Soft-Closing, 1/2" Overlay, Dowelled
Item # GTEC2750-15
•Mfr # 02750A-15
$4.36
/Each
300 items
$3.69/Each
1500 items
$3.55/Each
Mounting Type: Dowelled
Overlay: 1/2"
Min Order: 1
Quantity Multiple by: 1
Product Details
The TEC hinge system offers a proven technology that makes TEC the first brand choice among face frame hinge systems. Quiet and effortless closing action is guaranteed every time with TEC Soft-close hinges. Sleek in design with the soft-close mechanism pre-mounted in the hinge cup. TEC Self-close hinges include three dimensional adjustment and a variety of overlays to meet your hinge needs. Made in the USA, TEC hinges are built to last.
Features:
• Soft-close damper is pre-mounted in the hinge cup
• Adjustment switch to regulate closing action
• One piece hinge and base plate combination
• 3 dimensional adjustment
• 11mm cup drilling depth
• Front locating tabs position hinge on face frame
• Cam side adjustment
• Cam depth adjustment
• Height adjustment at mounting screw
• Works with current GRASS insertion machinery
Features:
• Soft-close damper is pre-mounted in the hinge cup
• Adjustment switch to regulate closing action
• One piece hinge and base plate combination
• 3 dimensional adjustment
• 11mm cup drilling depth
• Front locating tabs position hinge on face frame
• Cam side adjustment
• Cam depth adjustment
• Height adjustment at mounting screw
• Works with current GRASS insertion machinery
Specifications
| Mounting Type | Dowelled |
| Overlay | 1/2" |
| Closing Type | Soft-Closing |
| Opening Angle | 108° |
| Model | |
| Hinge Type | Side-Mount Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
