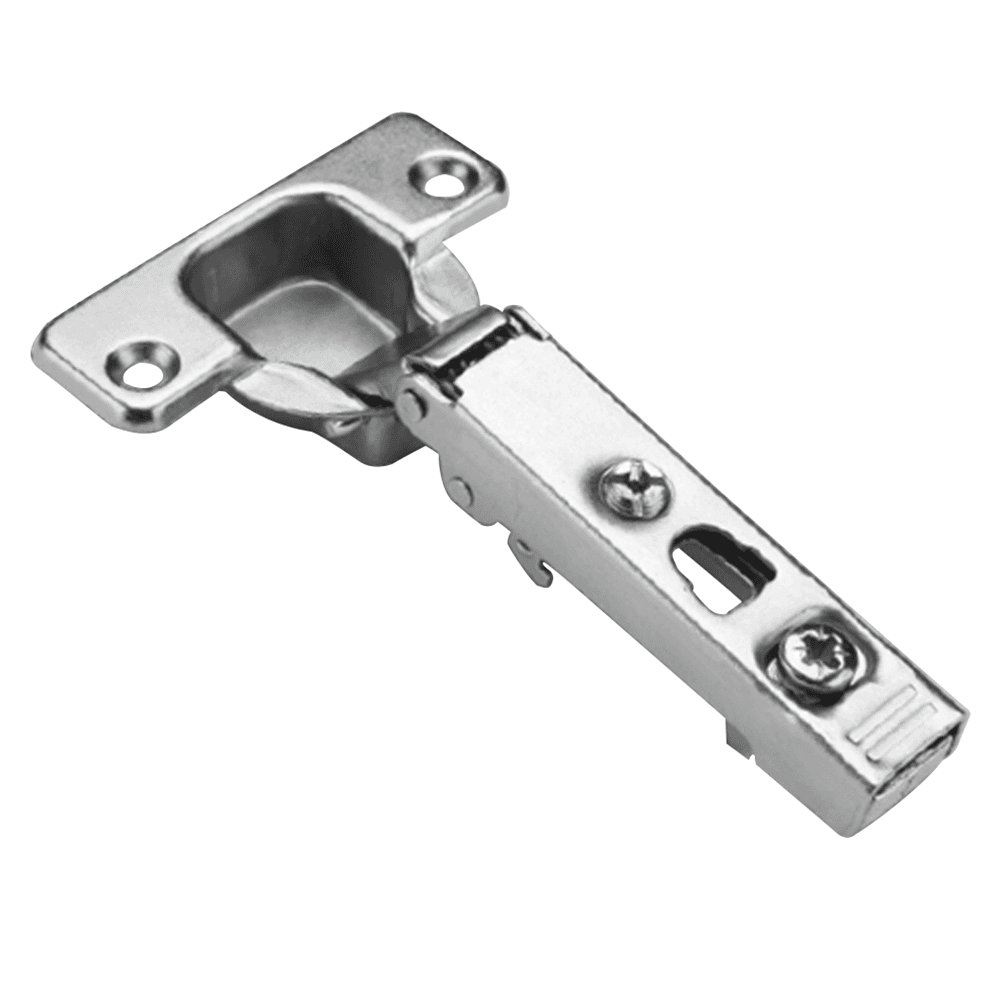

C98 120° Opening Hinge, 45mm Bore Pattern, Self-Closing, Full Overlay, Nickel-Plated, Dowelled
Item # PRO3214-8D
•Mfr # 0683114295961 200
Product Details
The well-made PRO self-close hinges fit with various cabinet door applications, supporting and facilitating designers ideas. The hinge's effortless opening and long durability contribute to the enjoyment of the furniture users.
Features:
• Range of door thickness: 14-24 mm
• Possible drilling distances on the door: 3-7 mm
• Cam Adjustment: +2 to -4 Side-to-Side
For use with all PRO Model Baseplates.
Features:
• Range of door thickness: 14-24 mm
• Possible drilling distances on the door: 3-7 mm
• Cam Adjustment: +2 to -4 Side-to-Side
For use with all PRO Model Baseplates.
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Mounting Type | Dowelled |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 120° |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.5mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
