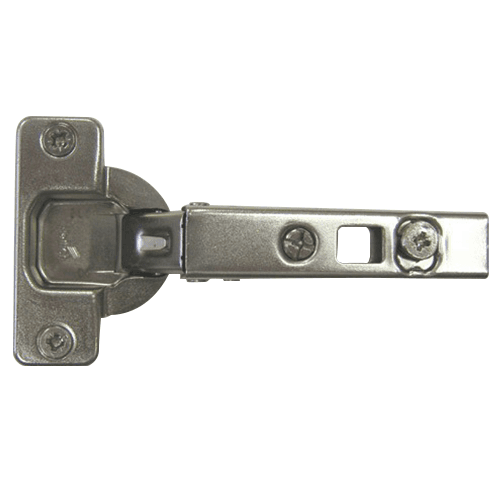

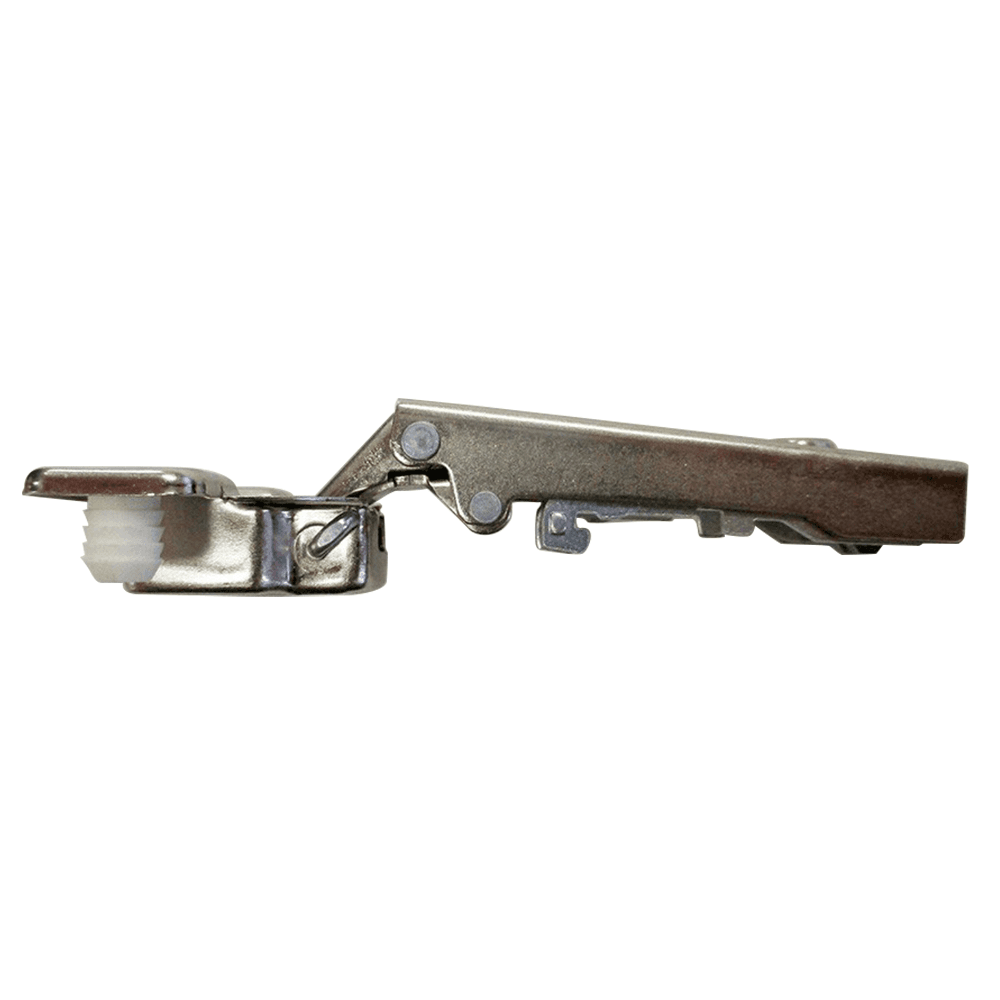

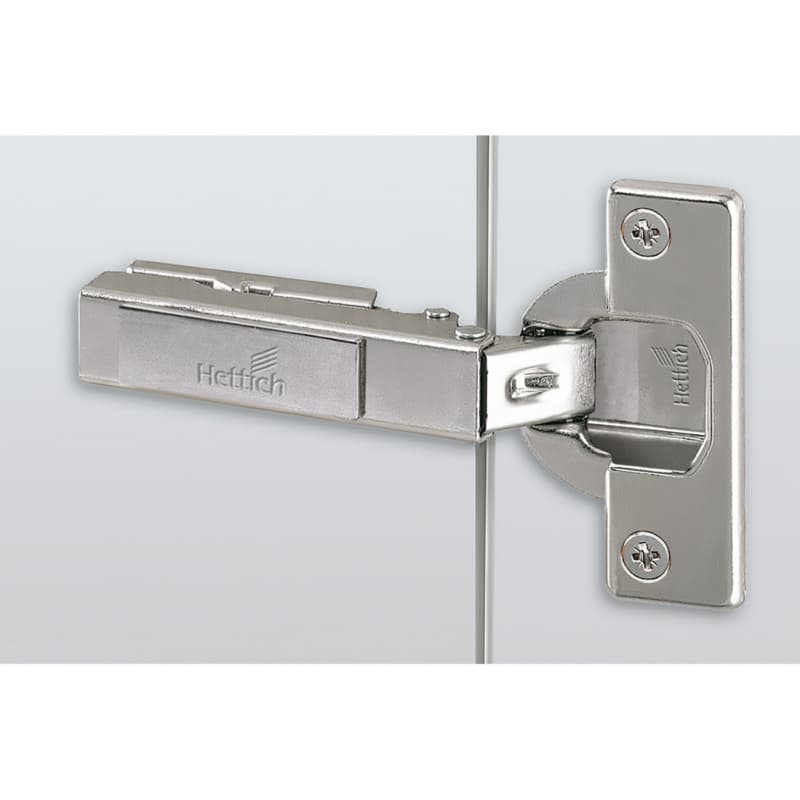

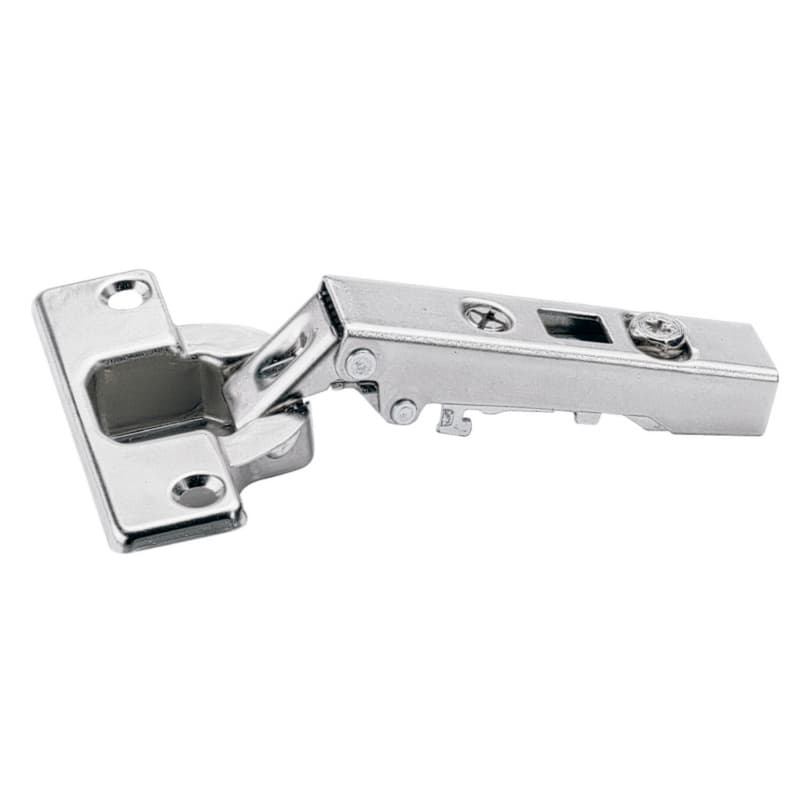

Intermate 110° Opening Hinge, 43mm Bore Pattern, Self-Close, Full Overlay, Nickel-Plated, Dowelled
Item # HET1029522
•Mfr # 1029522
$1.60
/Each
200 items
$1.36/Each
1000 items
$1.27/Each
Mounting Type: Dowelled
Min Order: 1
Qty mult. by: 1
Product Details
Features:
• Dowelled mounting type with Nickel-plated finish
• Concealed hinge with snap-on assembly, integrated door overlay and eccentric depth adjustment

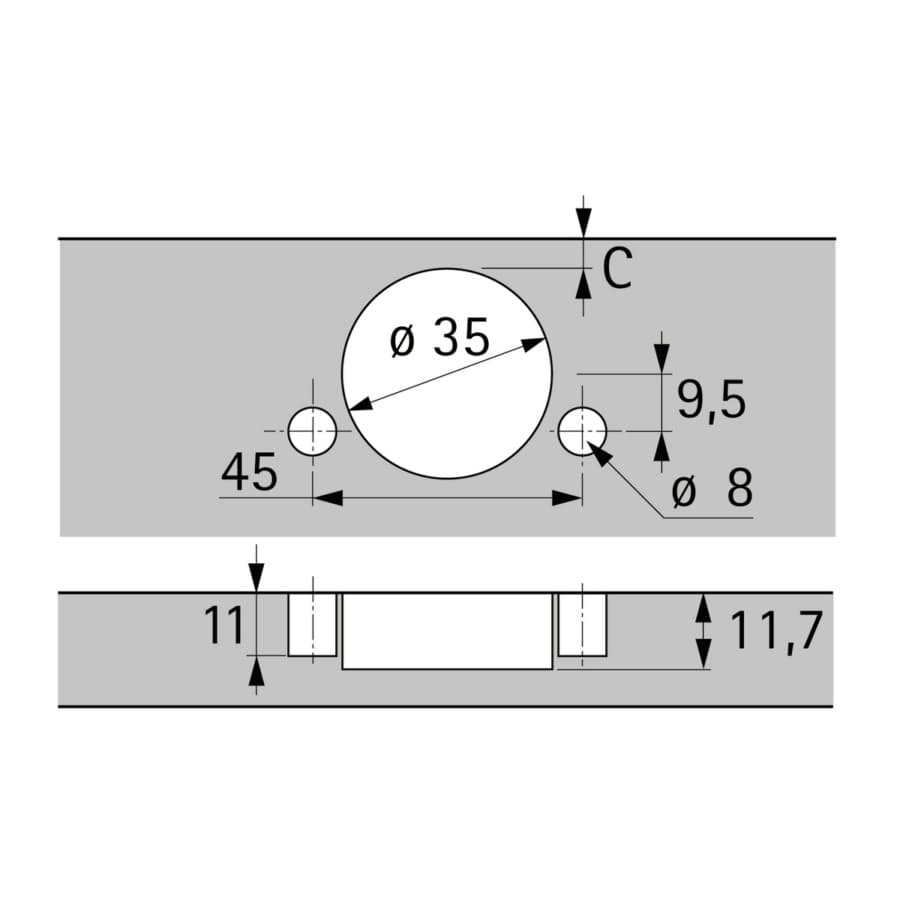

• Opening angle 110?, cup diameter 35mm
• Shallow hole depth for door thickness min. of 15mm
• Intermat 9943 hinges are snapped on to the mounting plate
• Depth adjustment via eccentric screw are -0.5mm/+3.5mm
• Height adjustment via mounting plate are +2mm/-2mm
• Overlay adjustment of about +0.5mm/-3mm
• Dowelled mounting type with Nickel-plated finish
• Concealed hinge with snap-on assembly, integrated door overlay and eccentric depth adjustment
• Opening angle 110?, cup diameter 35mm
• Shallow hole depth for door thickness min. of 15mm
• Intermat 9943 hinges are snapped on to the mounting plate
• Depth adjustment via eccentric screw are -0.5mm/+3.5mm
• Height adjustment via mounting plate are +2mm/-2mm
• Overlay adjustment of about +0.5mm/-3mm
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 200 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 43mm |
| Cup Diameter | 35mm |
| Cup Depth | |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
