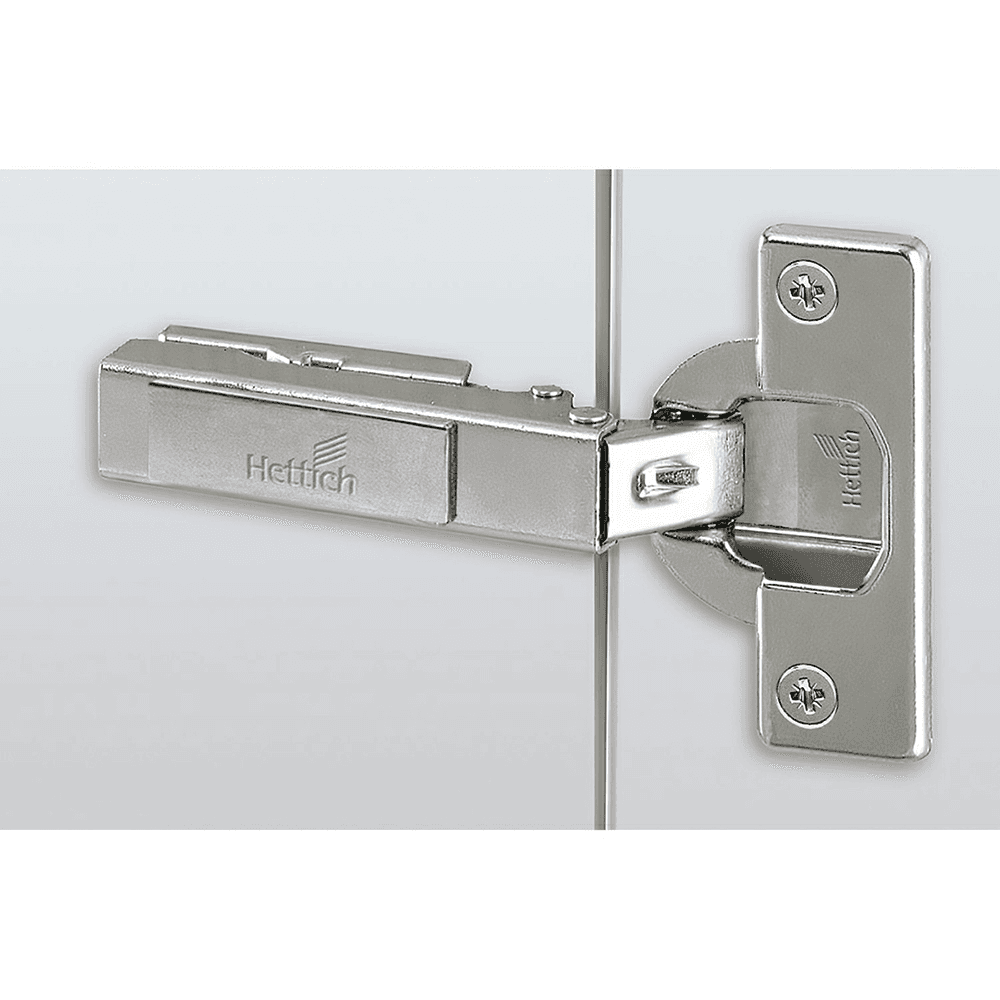

Intermat 9943 110° Opening Hinge, 45mm Bore Pattern, Self-Closing, Inset, Nickel-Plated, Dowelled
Item # HET1030925
•Mfr # 1030925
Mounting Type: Dowelled
Product Details
Features:
• Dowelled mount
• 110? Intermat hinge is finished in Nickel-Plated
• With self closing feature (Intermat 9943)
• Quality classification under EN 15570, Level 3
• Opening angle 110?
• For door thickness 15mm - 25mm
• Door mounting option inset

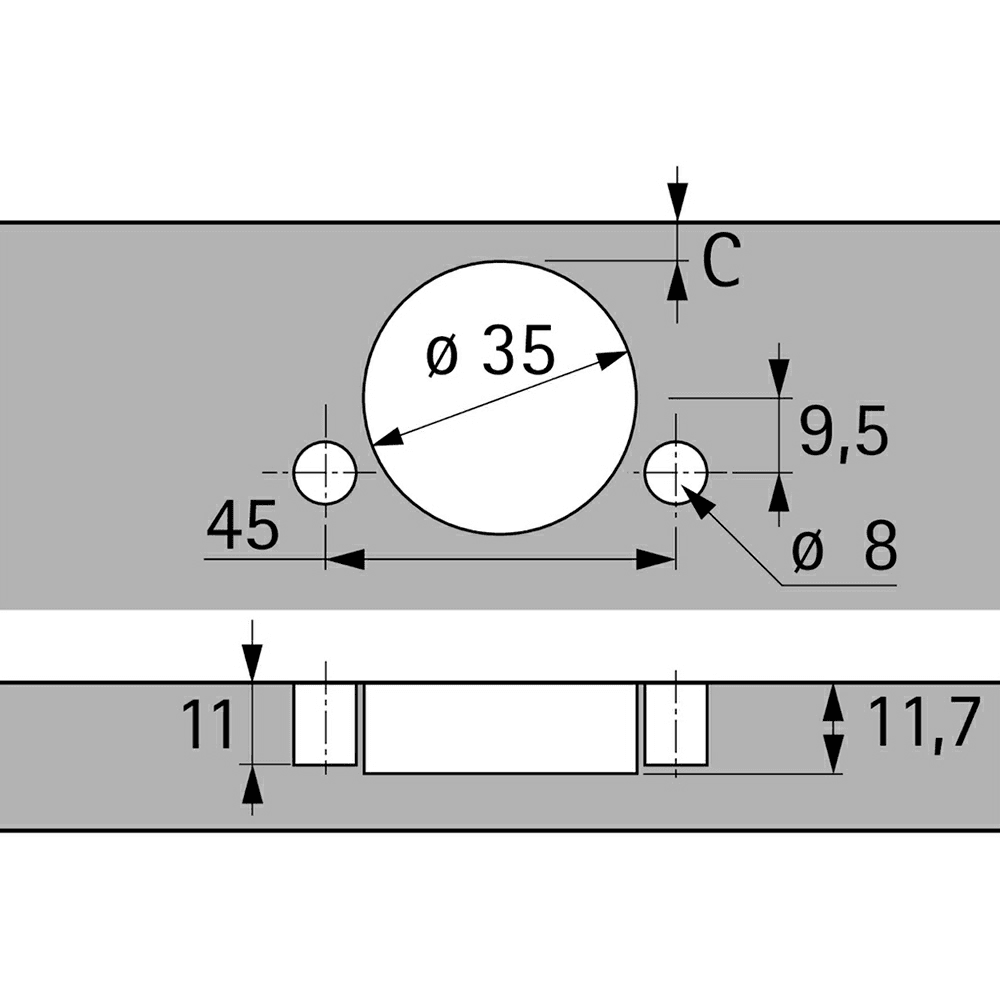

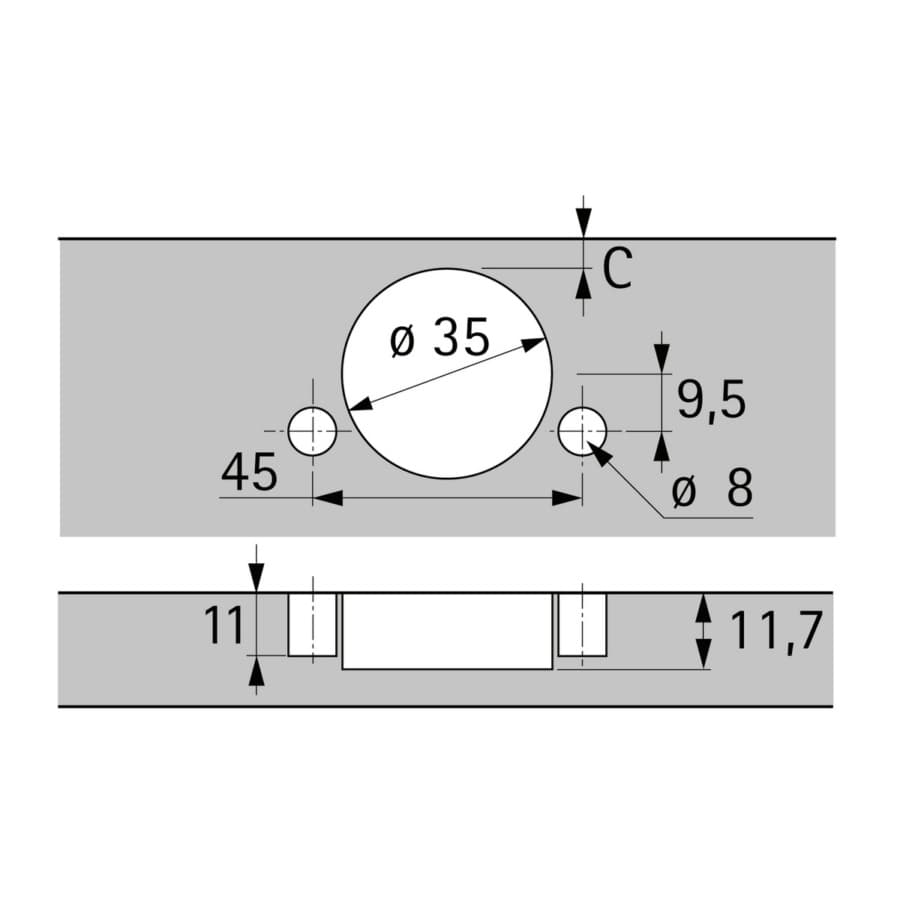

• Drilling pattern TB 45mm x 9.5mm
• Installation for pressing in
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +2.5mm / -1.5mm
• Height adjustment at mounting plate
• Dowelled mount
• 110? Intermat hinge is finished in Nickel-Plated
• With self closing feature (Intermat 9943)
• Quality classification under EN 15570, Level 3
• Opening angle 110?
• For door thickness 15mm - 25mm
• Door mounting option inset
• Drilling pattern TB 45mm x 9.5mm
• Installation for pressing in
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +2.5mm / -1.5mm
• Height adjustment at mounting plate
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Inset Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Intermat Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11.6mm |
| Material | Steel |
| Cabinet Type |
