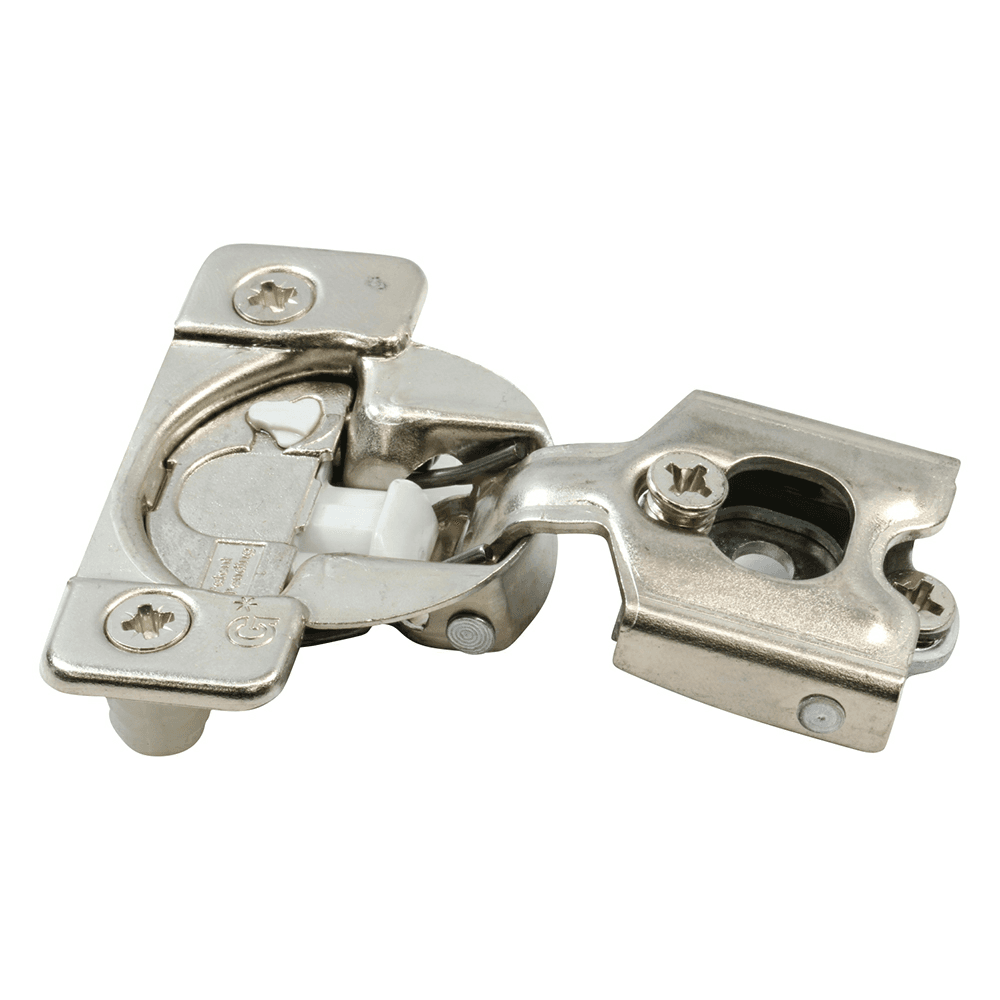

Tec 863 108° Opening Euro Face Frame Hinge, 42mm Boring Pattern, Self-Closing, Variable Overlay, Dowelled
Item # GTEC02282-15
•Mfr # 02282-15
$3.42
/Each
300 items
$2.89/Each
1500 items
$2.78/Each
Min Order: 1
Qty mult. by: 1
Product Details

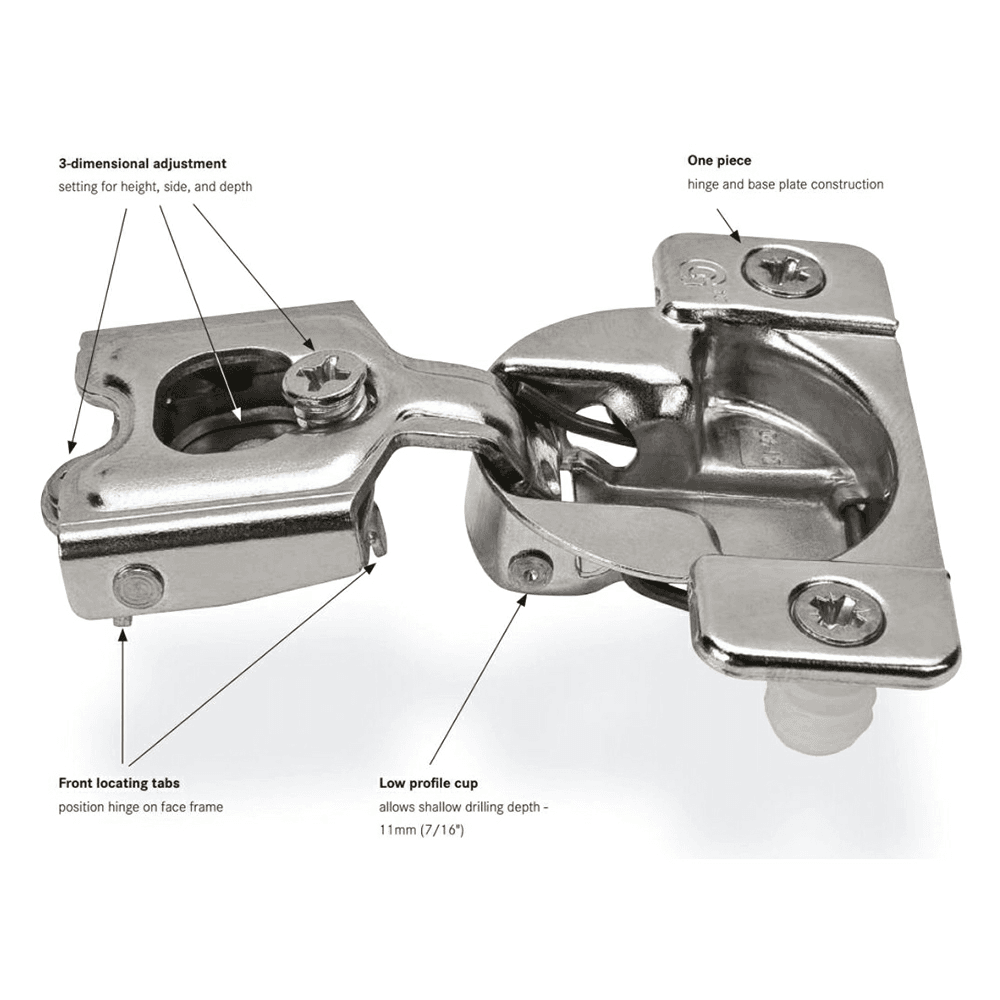

Features:
• Soft-close damper is pre-mounted in the hinge cup
• Adjustment switch on Soft-close to regulate closing action
• One piece hinge and base plate combination
• 2 dimensional adjustment
• 11mm (7/16") cup drilling depth
• Height adjustment at mounting screw
• For overlays 1-7/16" and greater
• 85? angle reduction clip available for Soft-close and Self-close
• Soft-close damper is pre-mounted in the hinge cup
• Adjustment switch on Soft-close to regulate closing action
• One piece hinge and base plate combination
• 2 dimensional adjustment
• 11mm (7/16") cup drilling depth
• Height adjustment at mounting screw
• For overlays 1-7/16" and greater
• 85? angle reduction clip available for Soft-close and Self-close
Specifications
| Box Quantity | 300 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Variable |
| Closing Type | Self-Closing |
| Opening Angle | 108° |
| Model | |
| Hinge Type | Euro Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 42mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
