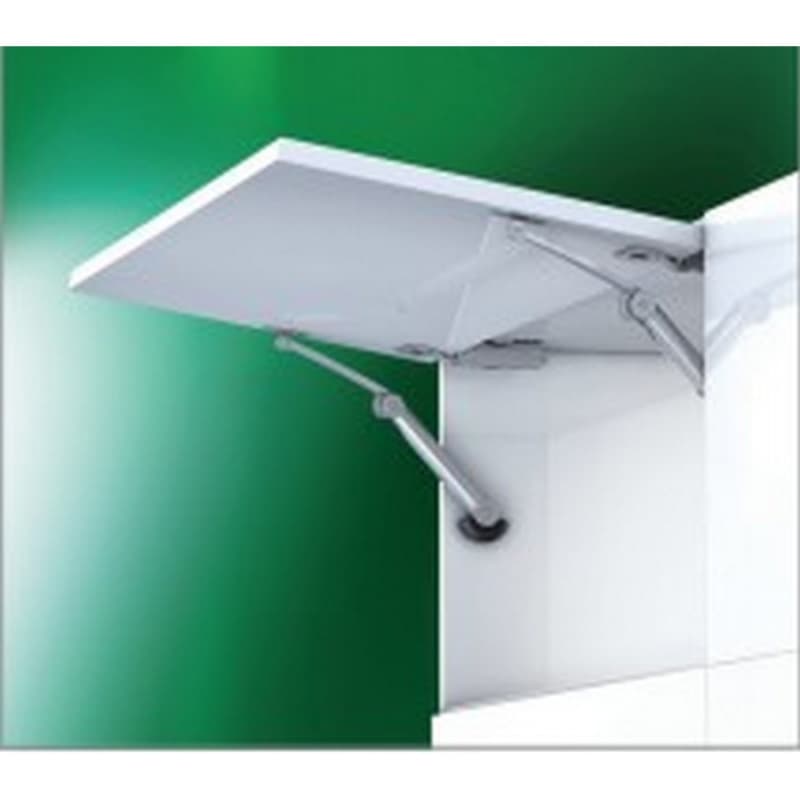

Kinvaro T-105 Left Hand Standard Flap Stay, Nickel-Plated

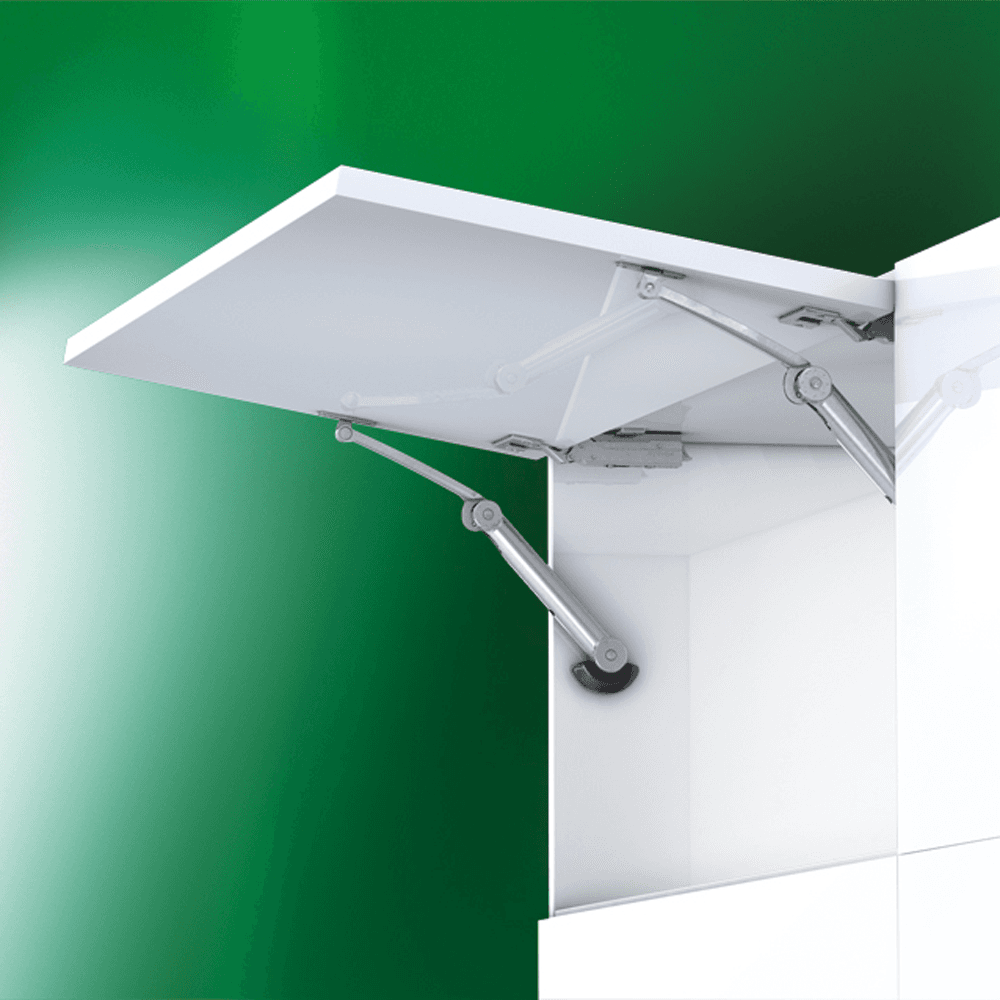

Distinguished by its simplicity, the T-series Lifter opens a single door that pivots the door to the top of the wall cabinet. The integrated Soft-close and its stay put feature contribute to the functionality of these lifters. Enhance your door design with glass inserts or aluminum frames.

Features
• Variable opening angle, holds flaps securely from 45• to 105•
• Spring-supported opening function
• Convenient access, flap lifts clear of the work area
• Suitable for wooden doors and aluminum frames with glass inserts
• Allows additional cabinet installation above
• Maintenance-free, no re-adjustment required
• High-quality zinc diecasting, nickel-plated

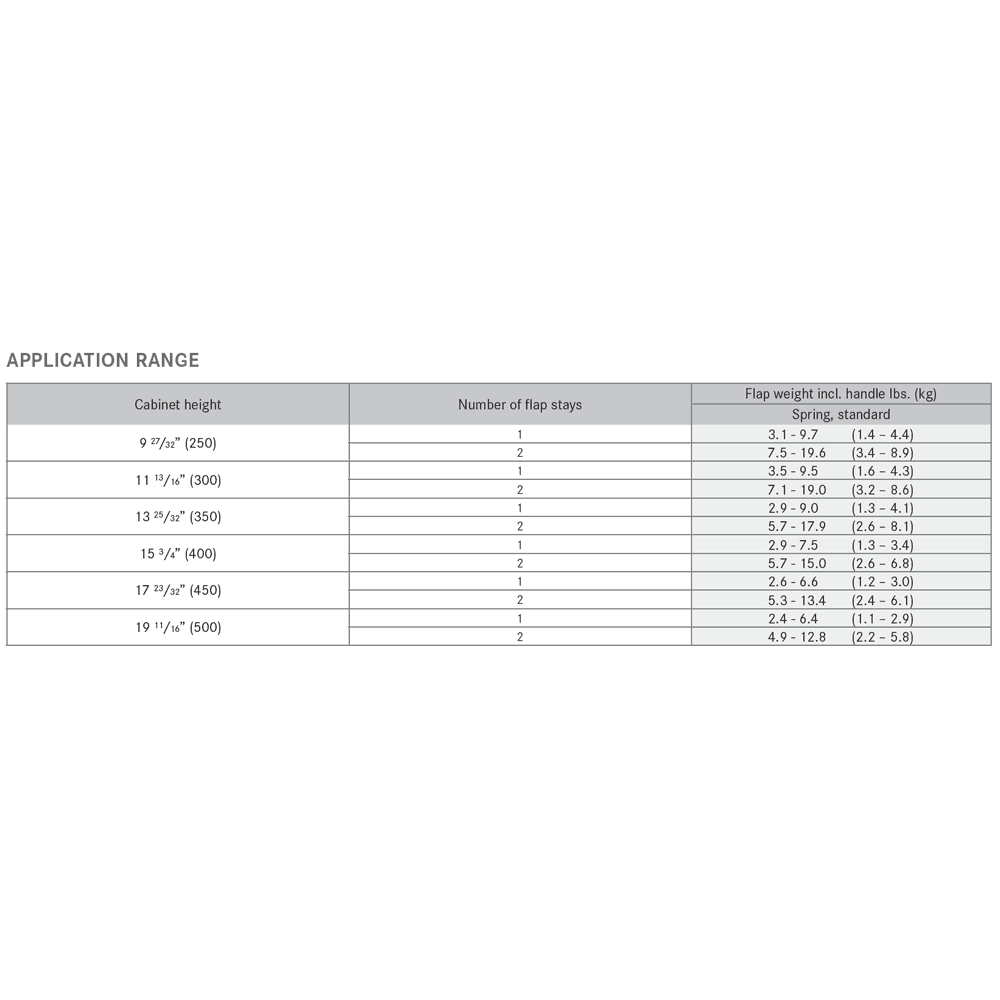

• Range of flaps:
Width: up to 47 1•4" (up to 1200 mm)
Height: 9 27•32" - 19 11•16" (250 - 500 mm)

Note:
Please order separately: Tiomos or Nexis hinges 0 crank with spring, without Soft-close, and respective mounting plates for top panel.

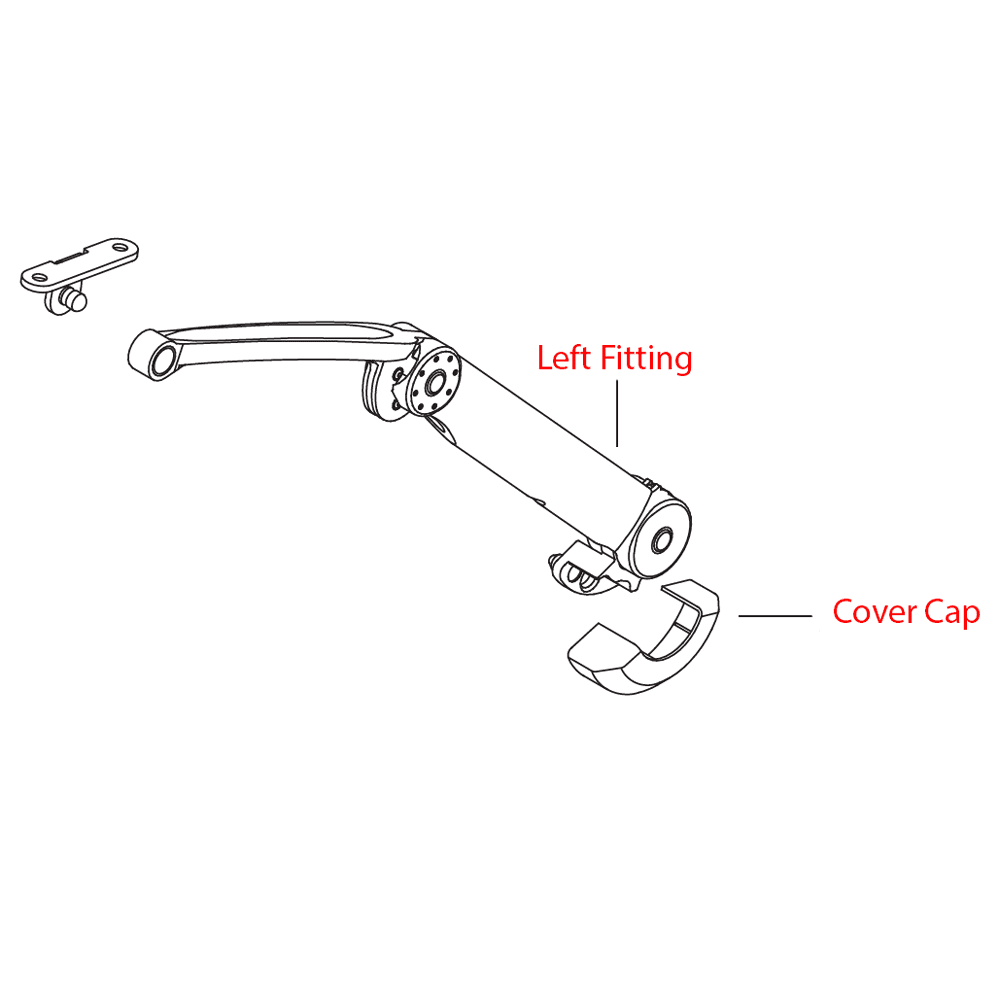

Kinvaro T-105 set includes:
• 1 Fitting, right or left (Sold Seperately)
• 2 Cover caps, right or left, in black (1x)
• 1 Paper template (1x)
• 1 Installation instructions (1x)
