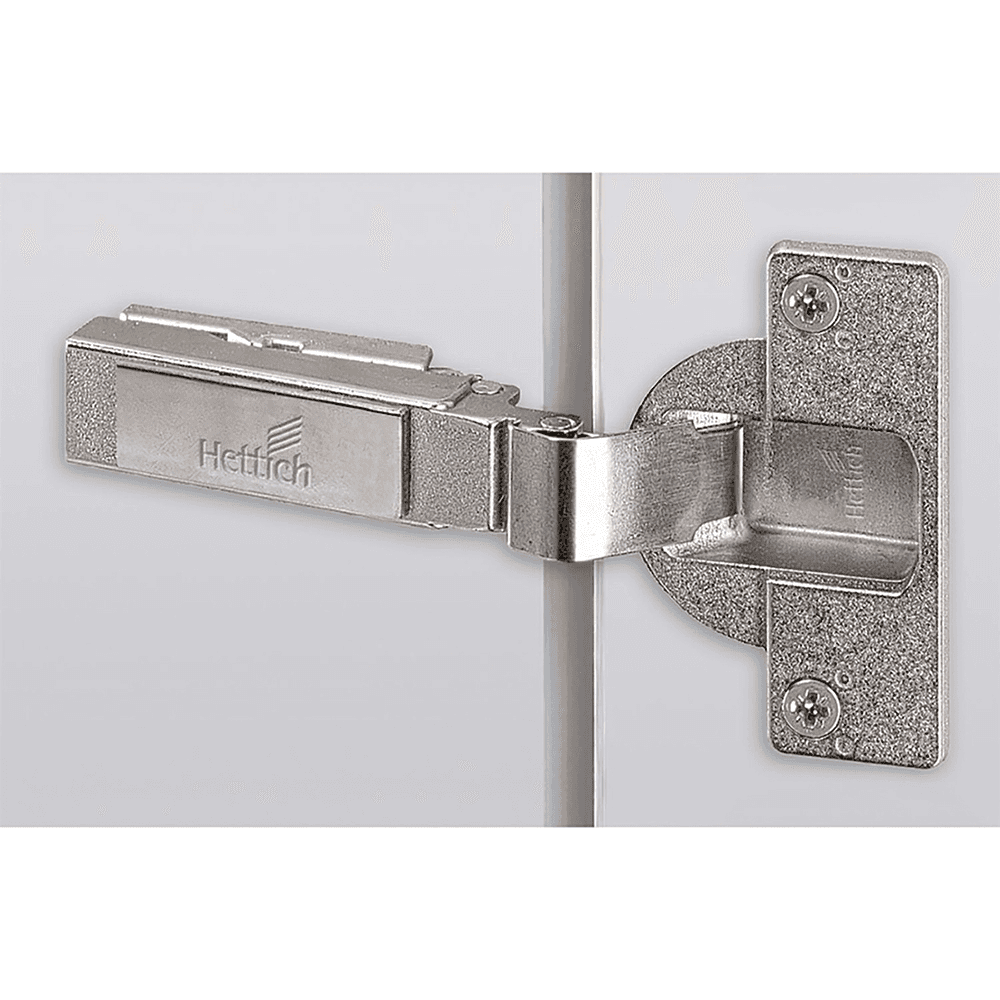

Intermat Spezial 95° Opening Thick Door Hinge, 52mm Boring Pattern, Self-Closing, Overlay, Nickel-Plated, Screw-On
Item # HET9117716
•Mfr # 9117716
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
Product Details
Features:
Screw-on mount
Thick door hinge in Nickel-Plated finish
Intermat Spezial thick door hinge, door thickness up to 43 mm
With self closing feature (Intermat 9935)
Quality classification under EN 15570, Level 2
For door thickness 26mm - 43mm
Door mounting option overlay

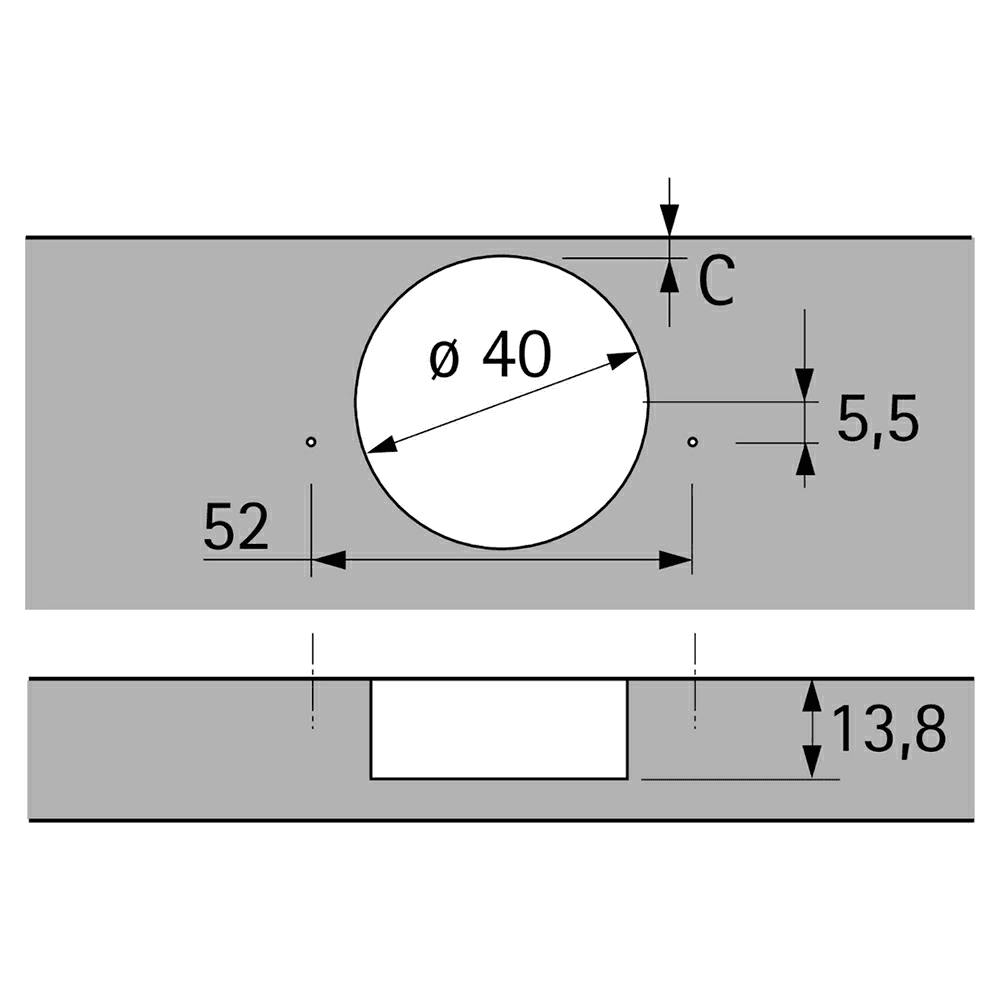

Drilling pattern TH 52mm x 5,5mm
Integrated overlay adjustment +2mm / -2mm
Integrated depth adjustment +2.5mm / -1.5mm
Height adjustment at mounting plate
Screw-on mount
Thick door hinge in Nickel-Plated finish
Intermat Spezial thick door hinge, door thickness up to 43 mm
With self closing feature (Intermat 9935)
Quality classification under EN 15570, Level 2
For door thickness 26mm - 43mm
Door mounting option overlay
Drilling pattern TH 52mm x 5,5mm
Integrated overlay adjustment +2mm / -2mm
Integrated depth adjustment +2.5mm / -1.5mm
Height adjustment at mounting plate
Specifications
Mounting Type | Screw-On |
Overlay | Overlay |
Closing Type | Self-Closing |
Opening Angle | 95° |
Model | |
Hinge Type | Thick Door Hinge |
Finish | Nickel-Plated |
Boring Pattern | 52mm |
Cup Diameter | 40mm |
Cup Depth | 13.7mm |
Material | Steel/Die-Cast Zinc |
Cabinet Type |
