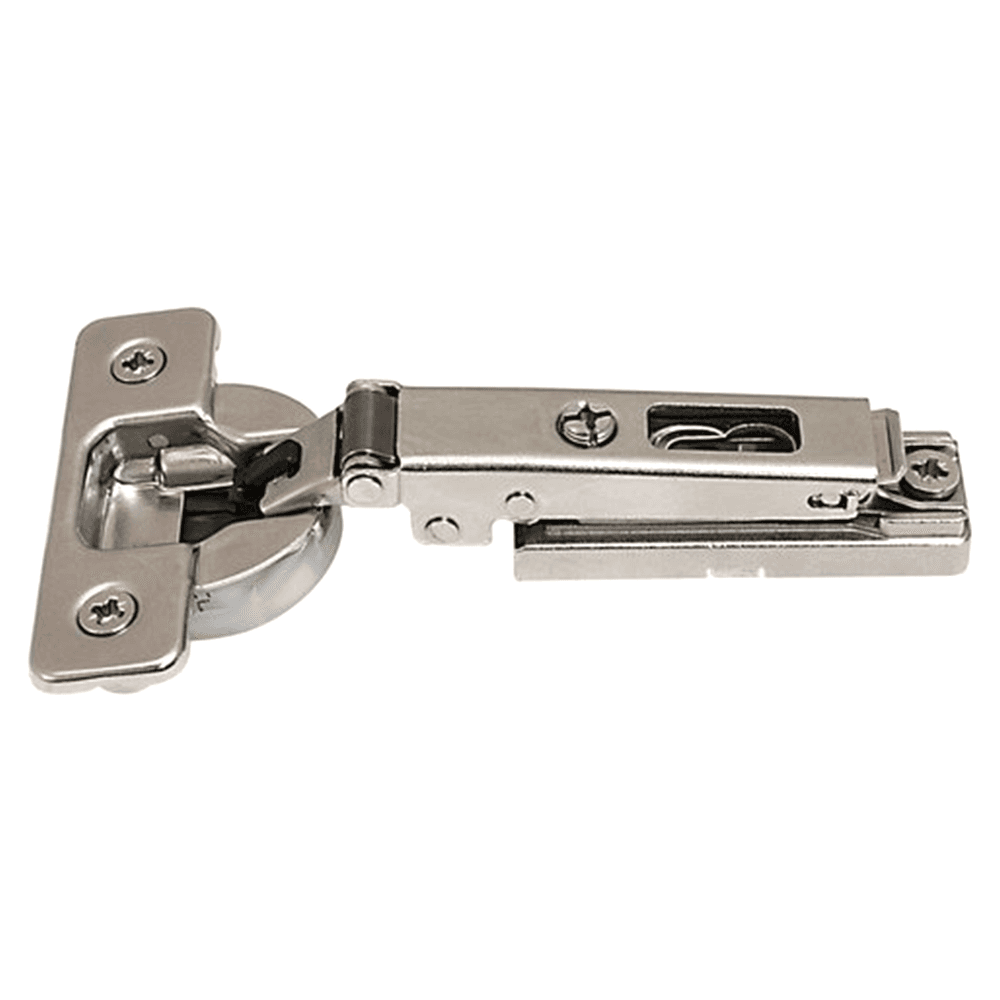

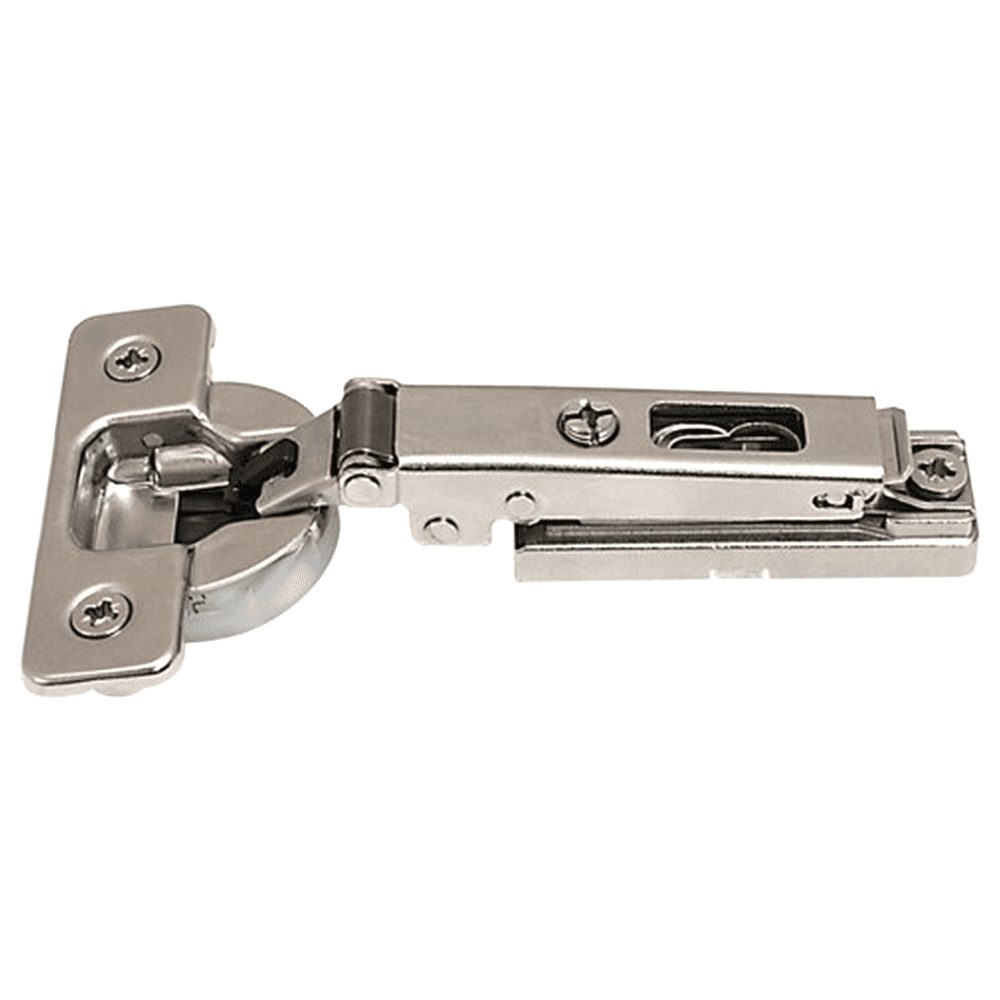

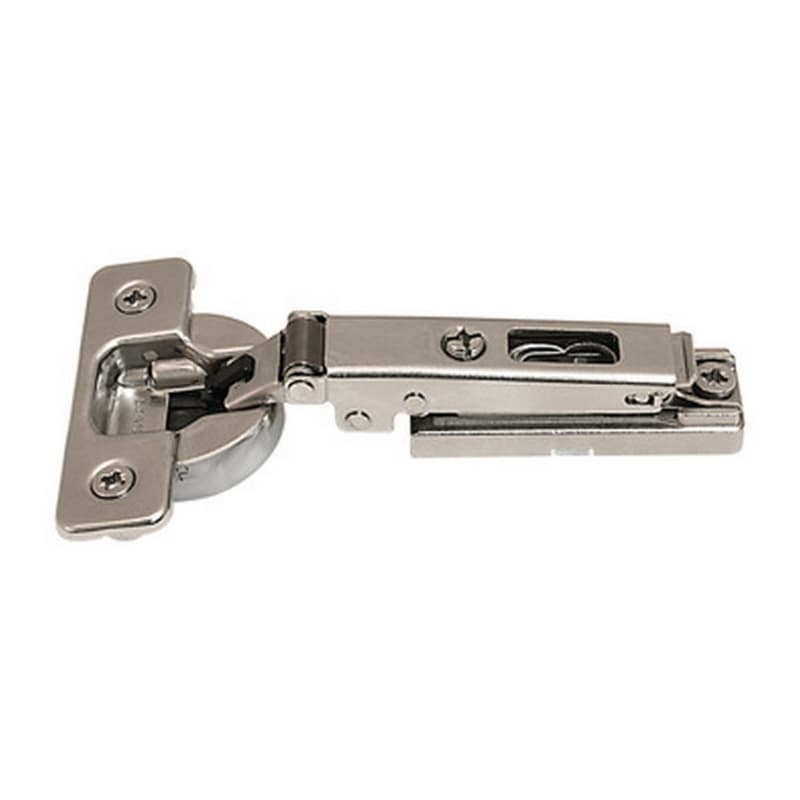

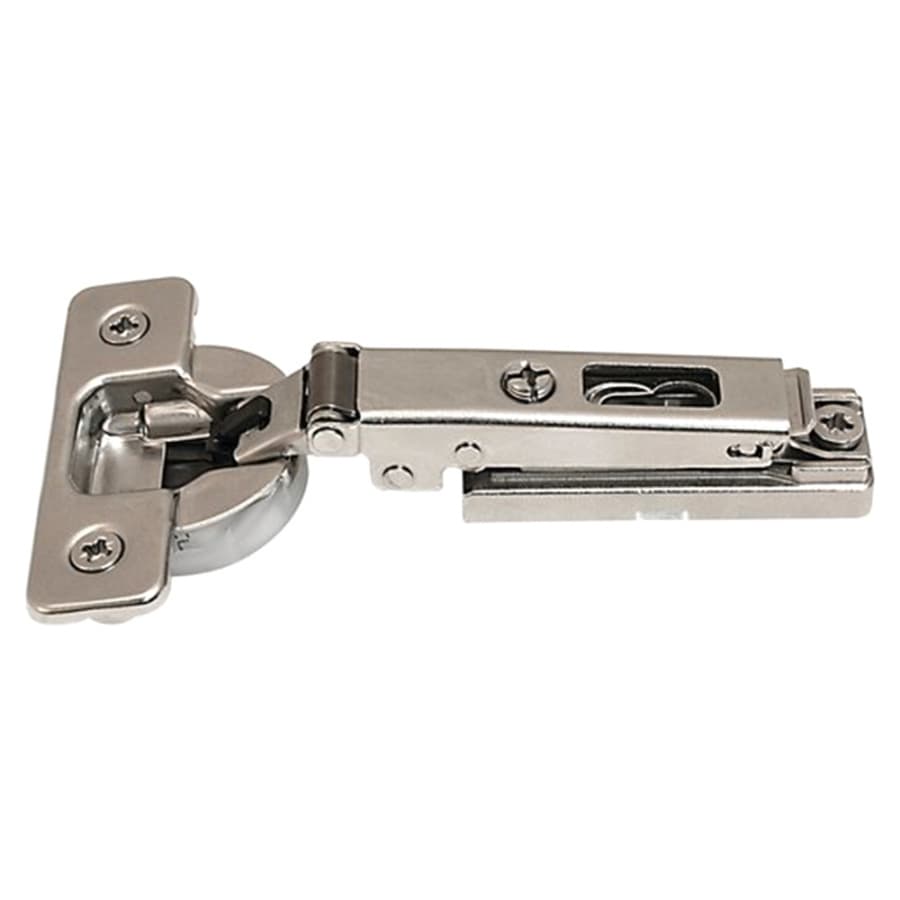

Series 100 105° Cabinet Hinge, Soft-Close Silentia+, 45mm Bore Pattern, Full Overlay, Nickel-Plated, Dowelled

The Salice Silentia+ Series 100 105° soft-close cabinet hinge is precise, reliable, and quiet. This modern soft-open hinge is ideal for both residential and commercial cabinetry. Featuring integrated Silentia+ technology, this full overlay hinge consistently performs with a smooth, uniform closing action, no matter the application.

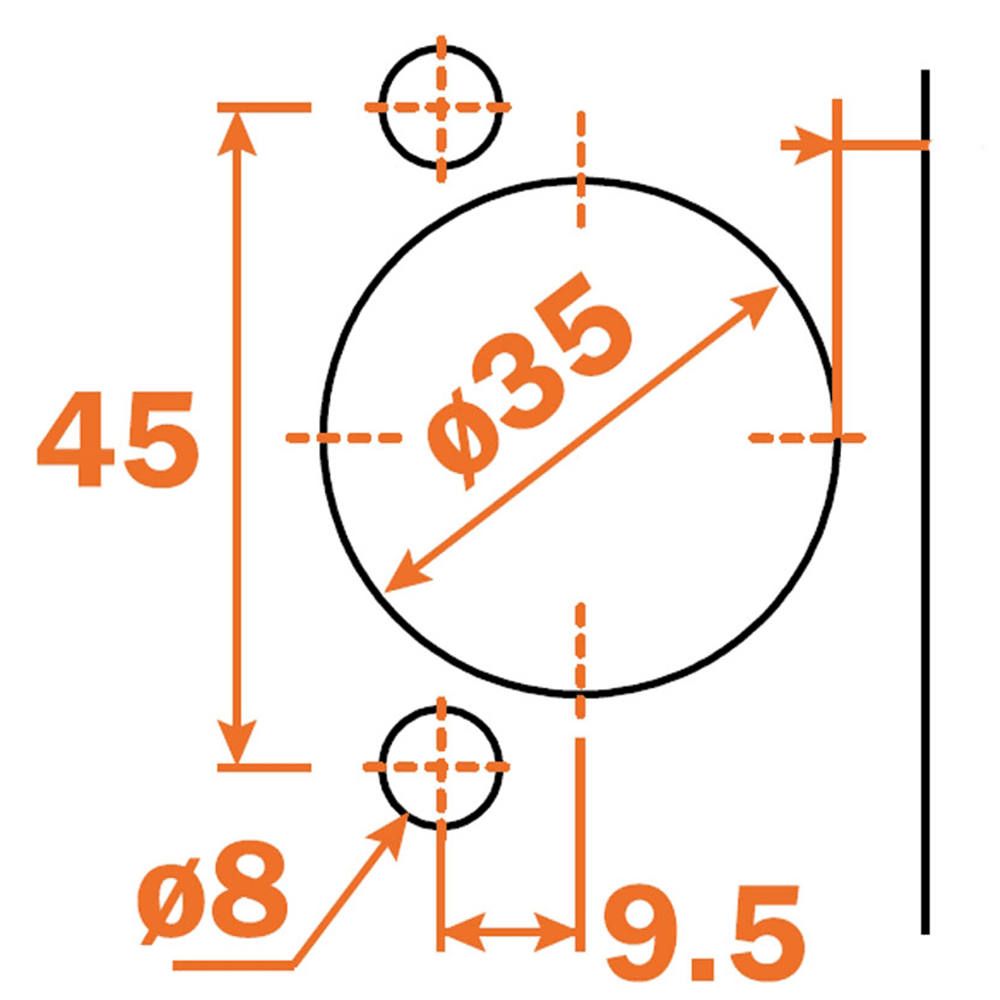

This nickel-plated soft-close hinge is compatible with face frame and frameless cabinets and supports a wide range of overlays. The 45mm bore pattern ensures easy alignment, and the dowelled design provides a secure, tool-friendly installation process. Part of Salice’s advanced euro hinge lineup, this Series 100 soft-close face frame cabinet hinge with Silentia+ delivers consistent performance through innovative damping technology, making it a trusted solution for high-use kitchens, bathrooms, and custom furniture builds.

Features:

• 105° opening angle

• Anti-sliding safety stop

• Depth adjustment with Domi mounting plates: -0.5 mm to +2.8 mm

• Depth adjustment with Series 200 mounting plates: up to +2.8 mm

• Height adjustment ±2 mm

• Nickel-plated steel or die-cast construction

• Side adjustment: -1.5 mm to +4.5 mm

Installation Notes:

• Compatible with Series 200 and Domi snap-on mounting plates (sold separately)

• Positioning with pre-determined stop on traditional Series 200 plates

• Use POZIDRIVE No. 2 screwdrivers for all screws
