Clip Top 125° Opening Zero Protrusion Thick Door Hinge with BLUMOTION Soft-Closing, Full Overlay, Nickel-Plated, Dowelled
25 items
125 items
Mounting Type: Dowelled
Product Details

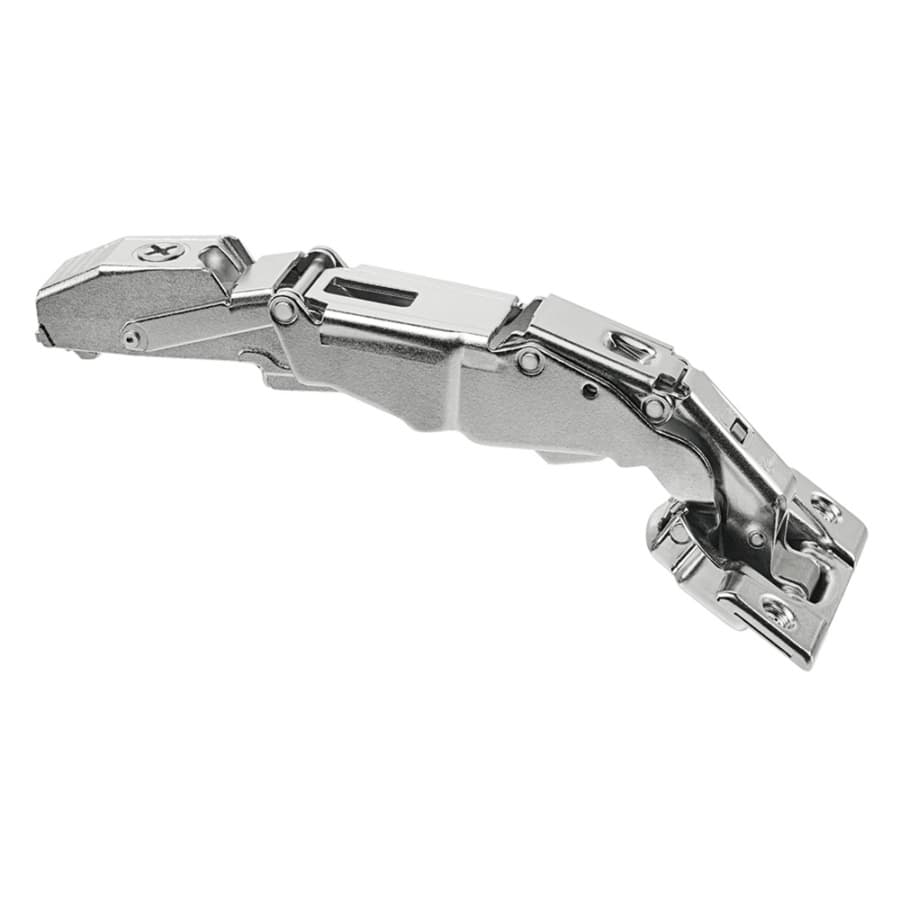

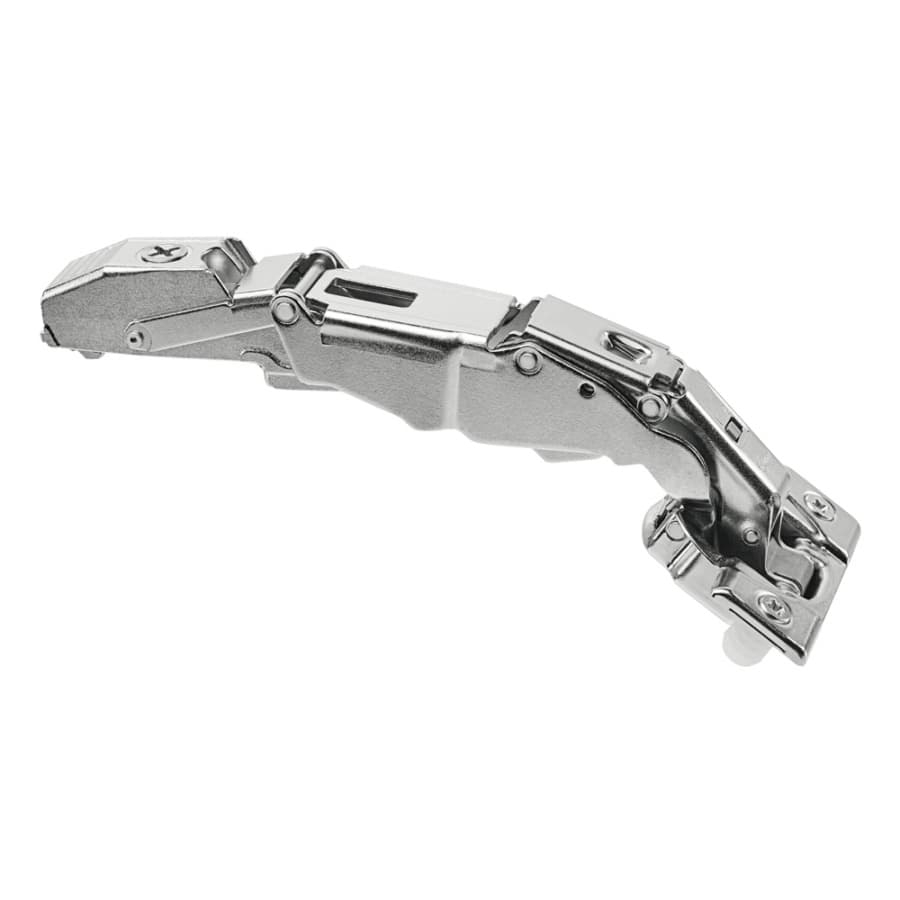

CLIP top hinges are concealed hinges for cabinet doors, meaning they cannot be seen when the door is closed. These hinges are easy to use and they work in almost any hinge application because of the wide variety of mounting plates available. That's right, these Euro hinges can be used in frameless and face frame cabinets. CLIP top hinges can also be easily upgraded with soft closing BLUMOTION making them a flexible and reliable option for any cabinet.
Features
• 0-protrusion for overlay application (for cabinets with inner pull-outs or pull-out surrounds)
• Hinge for thick doors and doors with profile
• CLIP top BLUMOTION with integrated BLUMOTION (with deactivation option)
• 125° opening angle
• 3-dimensional front adjustment
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Mounting Type | Dowelled |
| Overlay | Full Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 125° |
| Model | |
| Hinge Type | Thick Door Hinge |
| Finish | Nickel-Plated |

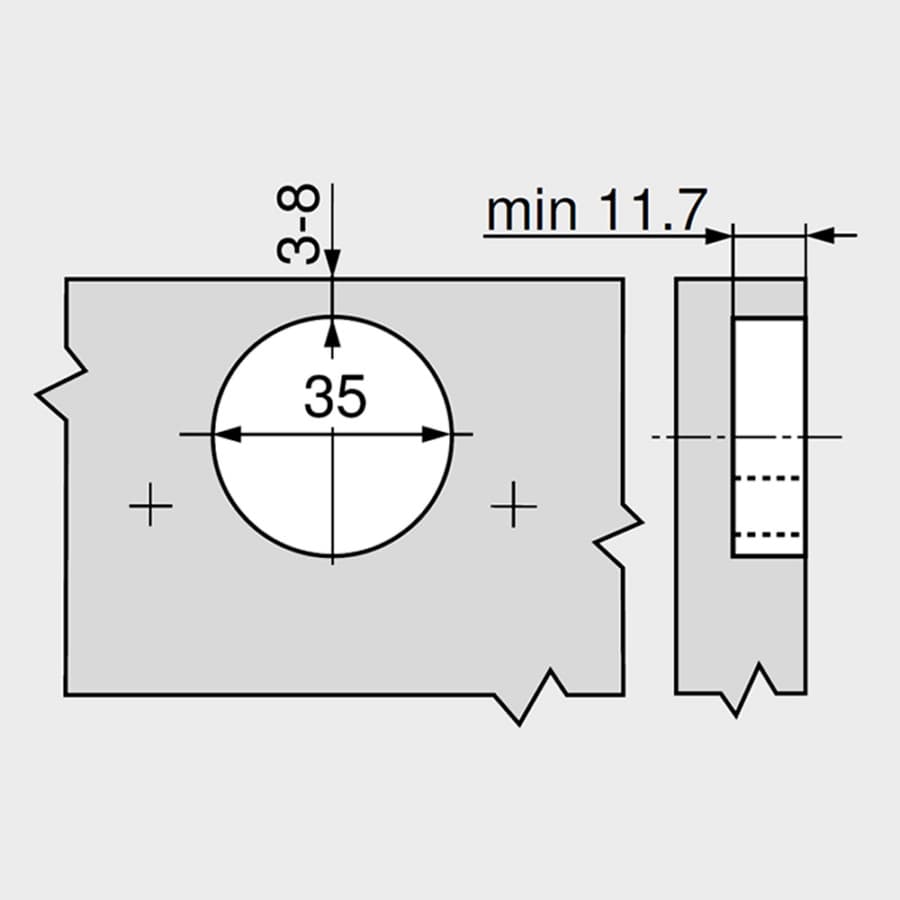

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11.7mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
