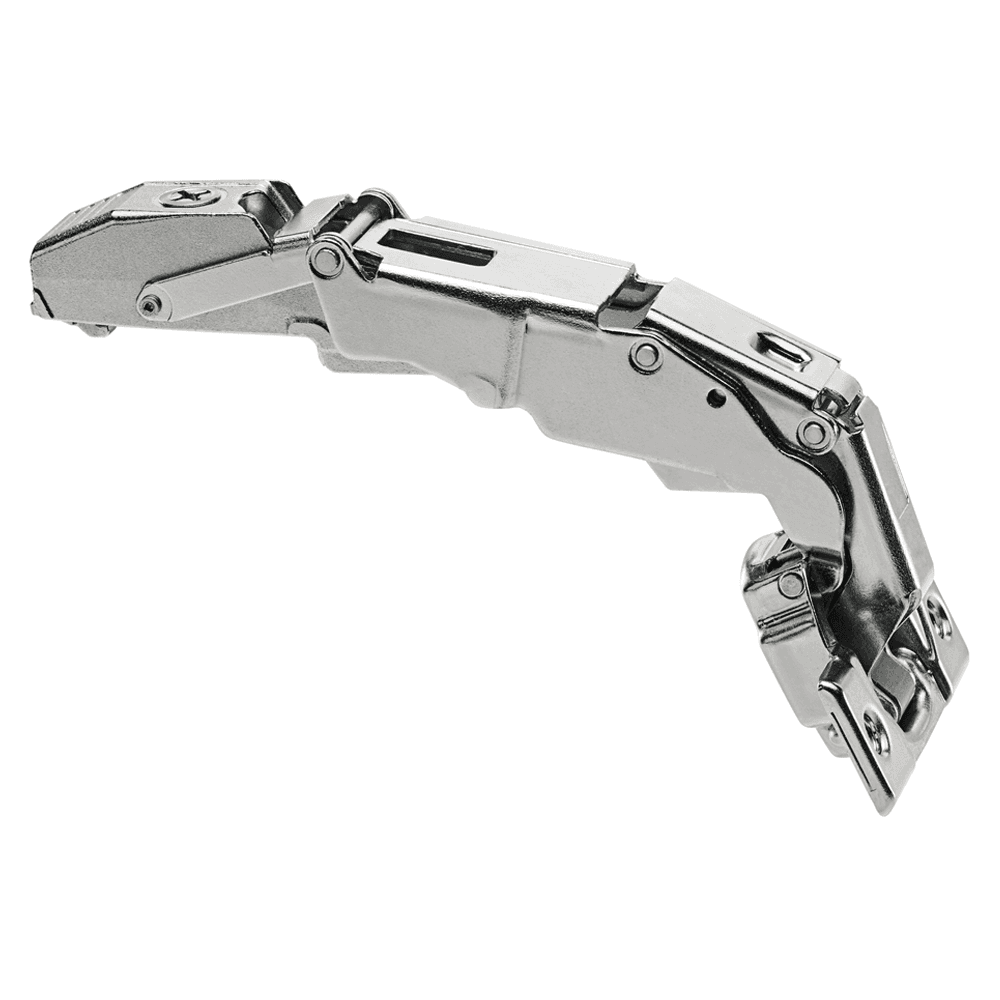

Clip Top 155° Opening Zero Protrusion Hinge, 45mm Bore Pattern, Self-Closing, Full Overlay, Nickel-Plated, Screw-On
125 items
Mounting Type: Screw-On
Product Details

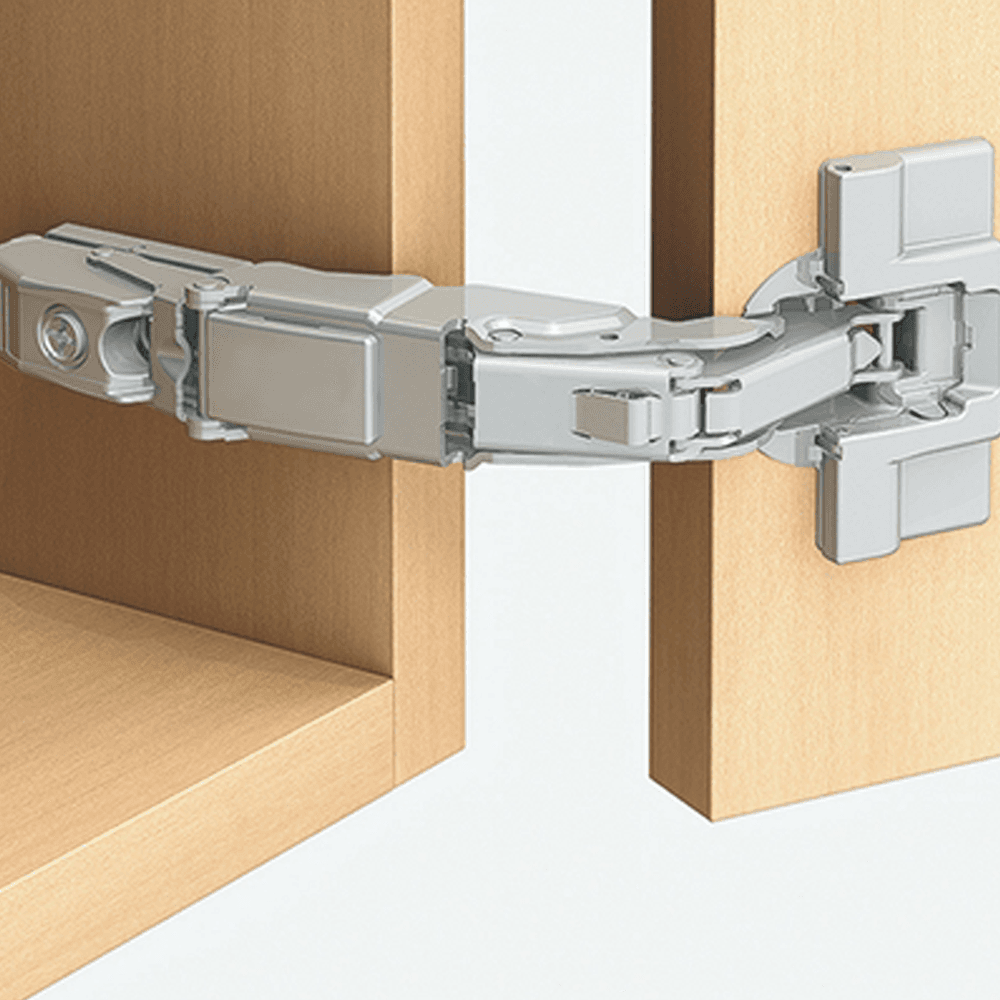

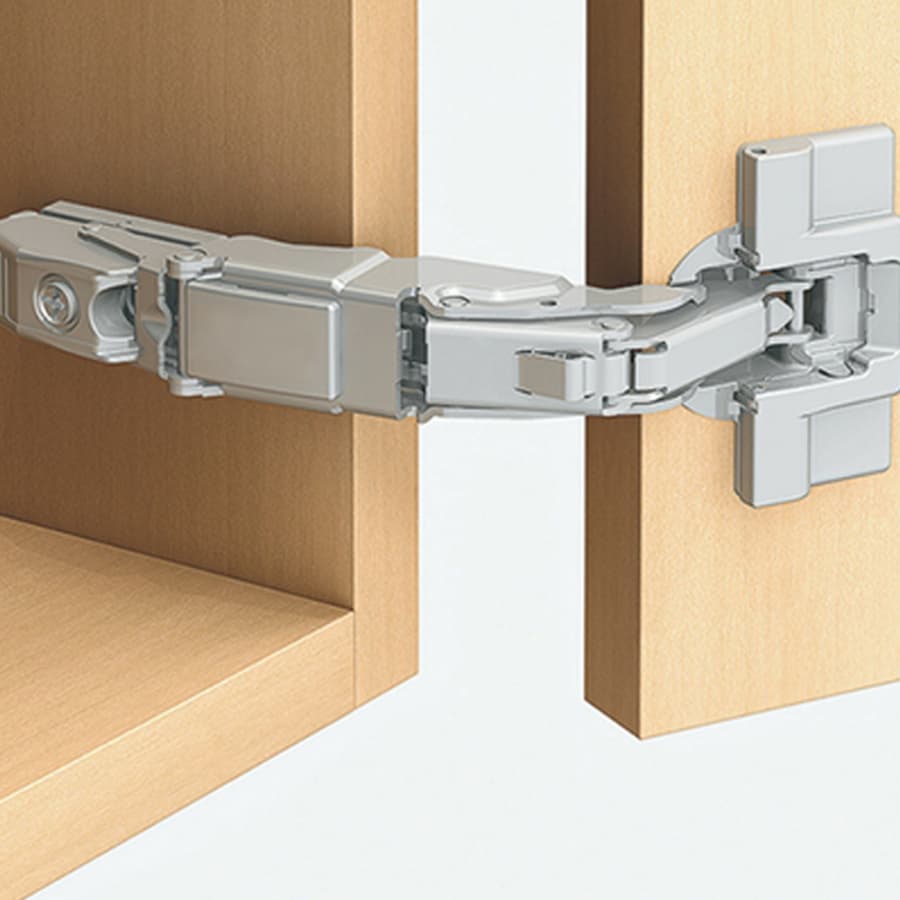

CLIP top hinges are concealed hinges for cabinet doors, meaning they cannot be seen when the door is closed. These hinges are easy to use and they work in almost any hinge application because of the wide variety of mounting plates available. That's right, these Euro hinges can be used in frameless and face frame cabinets. CLIP top hinges can also be easily upgraded with soft closing BLUMOTION making them a flexible and reliable option for any cabinet.
Features:
• For use in cabinets with interior roll-outs
• Three-dimensional adjustment
• Available with INSERTA attachment
• For door thicknesses up to 24 (15/16")
• Angle restriction clips available
• All metal hinge, nickel-plated
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Mounting Type | Screw-On |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 155° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |

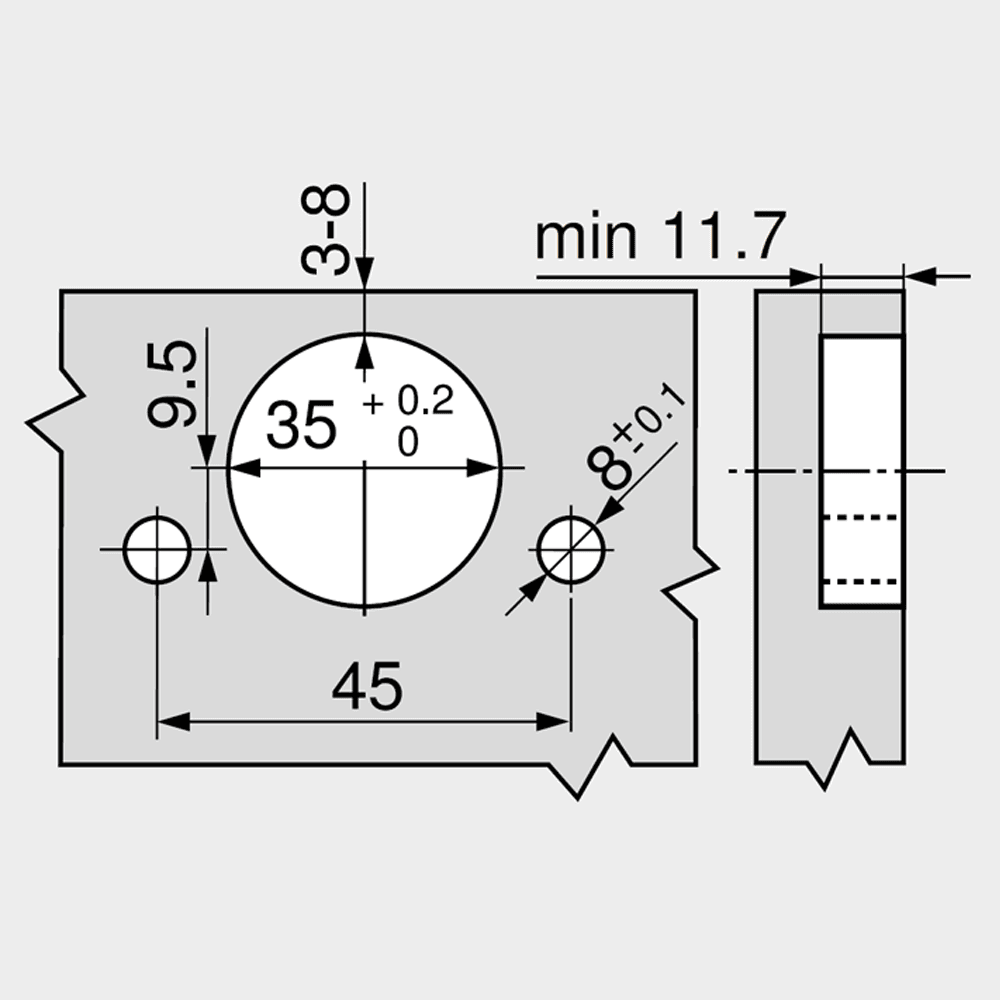

| Boring Pattern | 45mm |

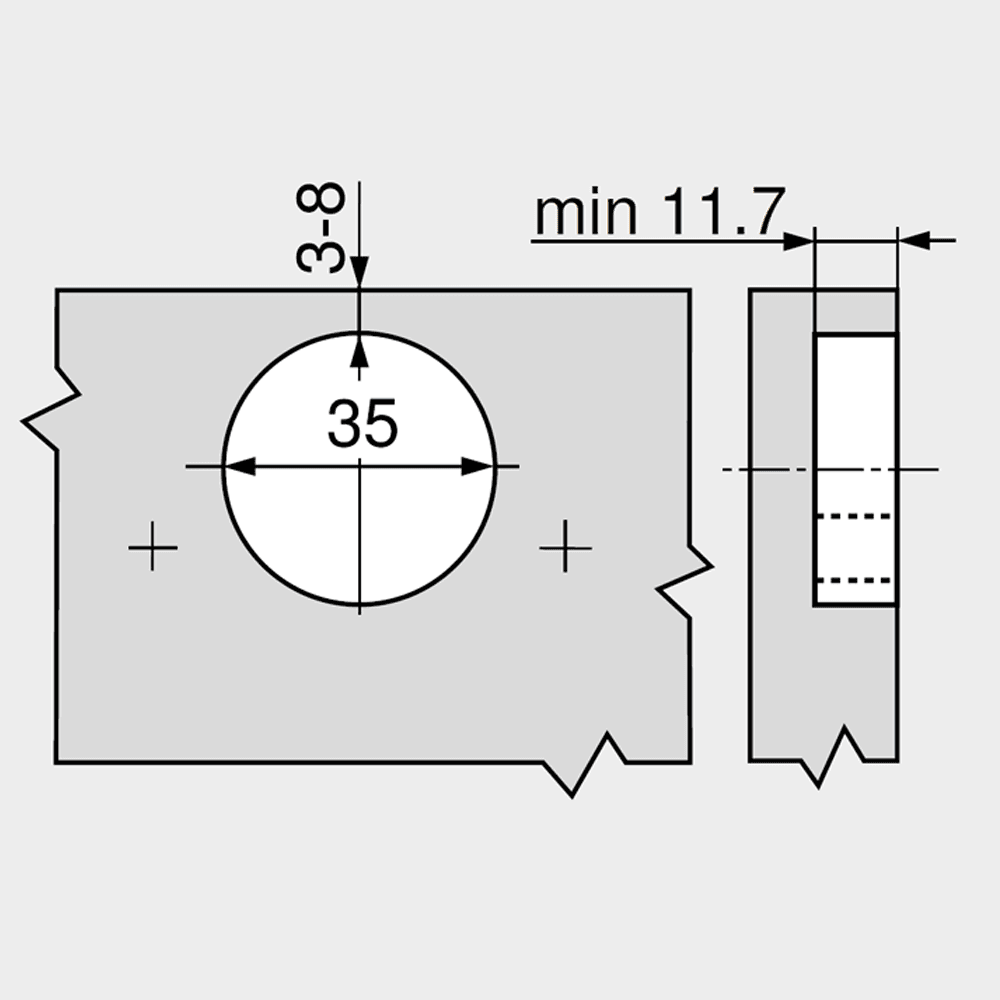

| Cup Diameter | 35mm |
| Cup Depth | 11.7mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
