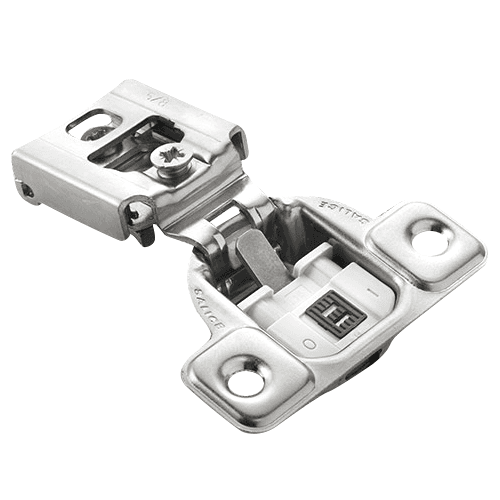

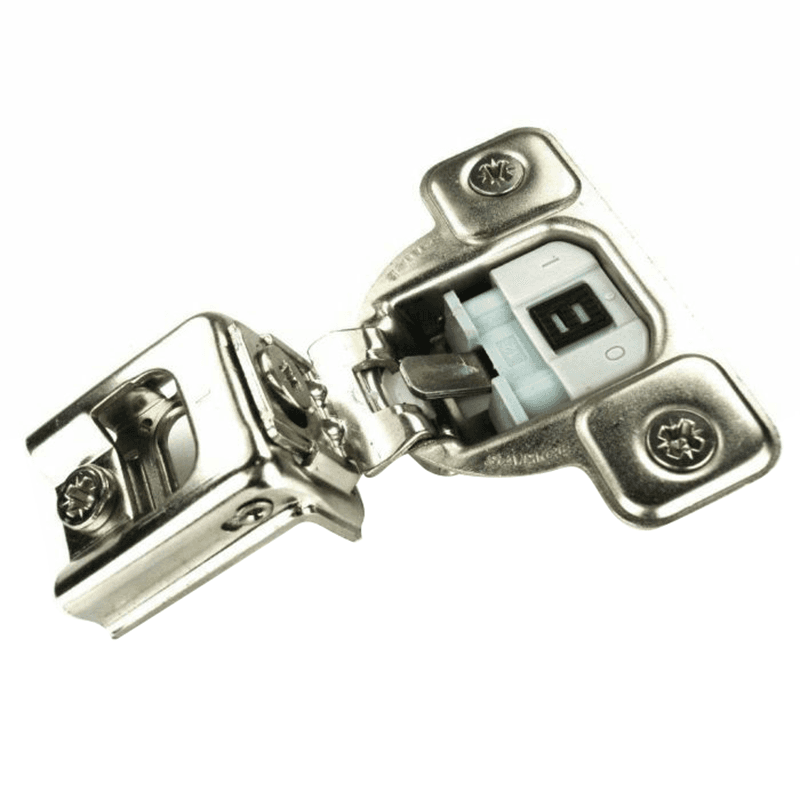

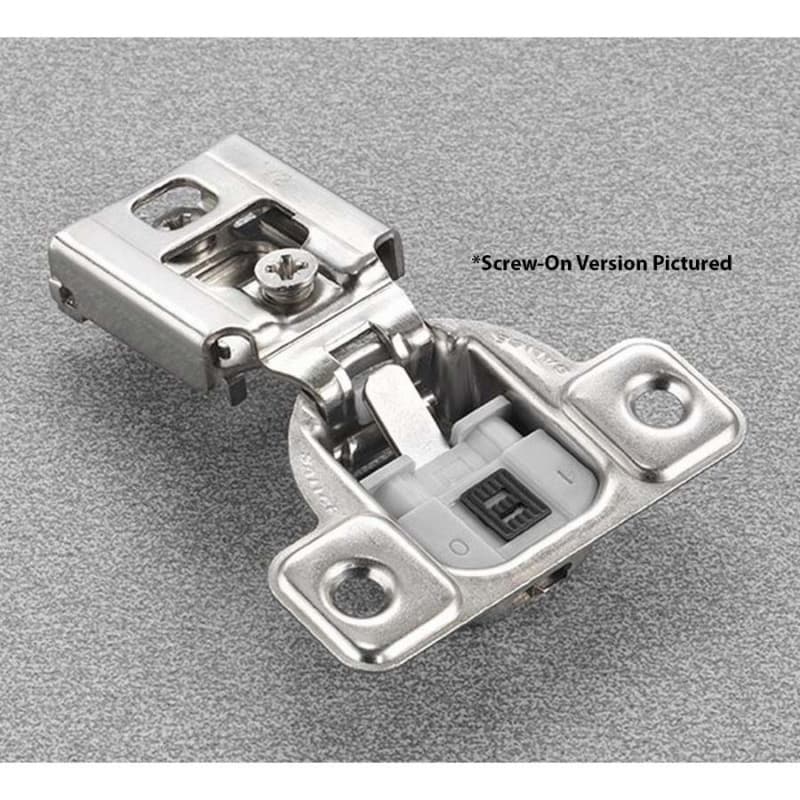

Excentra S 106° Opening Wrap-Around Face Frame Hinge, 45mm Boring Pattern, Silentia Soft-Closing, 5/8" Overlay, Screw-On
Item # SALCUP35D9
•Mfr # CUP35D9
Mounting Type: Screw-On
Overlay: 5/8"
Product Details
Features:
• 5/8" overlay
• Screw-on mount
• 106? opening angle
• Wrap-around mount
• Minimum door thickness 14 mm (9/16")
• Maximum door thickness 22 mm (7/8")
• 7/16" cup depth
• Stamped Steel
• Suggested frame fixing screw #8 3/4" modified truss head
• 5/8" overlay
• Screw-on mount
• 106? opening angle
• Wrap-around mount
• Minimum door thickness 14 mm (9/16")
• Maximum door thickness 22 mm (7/8")
• 7/16" cup depth
• Stamped Steel
• Suggested frame fixing screw #8 3/4" modified truss head
Specifications
| Box Quantity | 300 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | 5/8" |
| Closing Type | Soft-Closing |
| Opening Angle | 106° |
| Model | |
| Hinge Type | Wrap-Around Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
