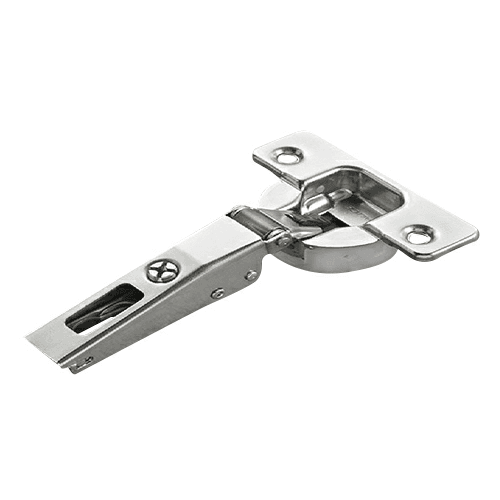

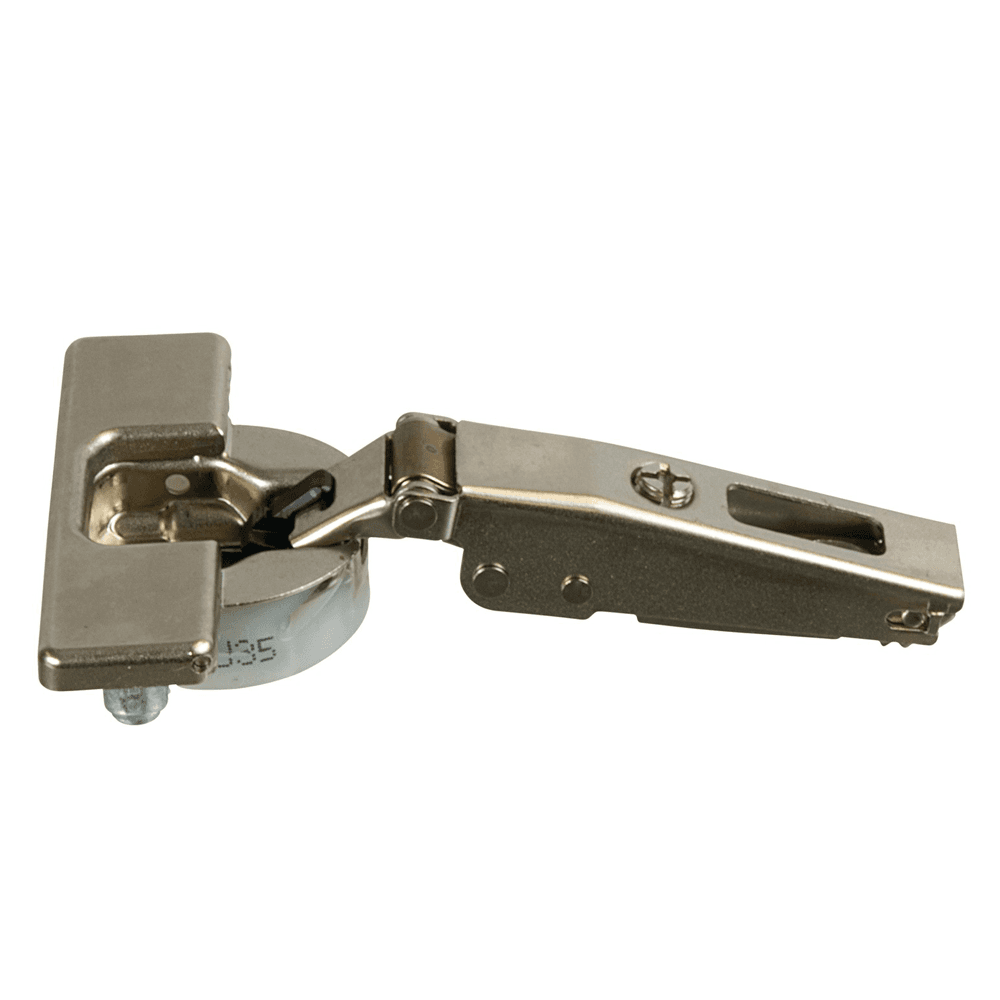

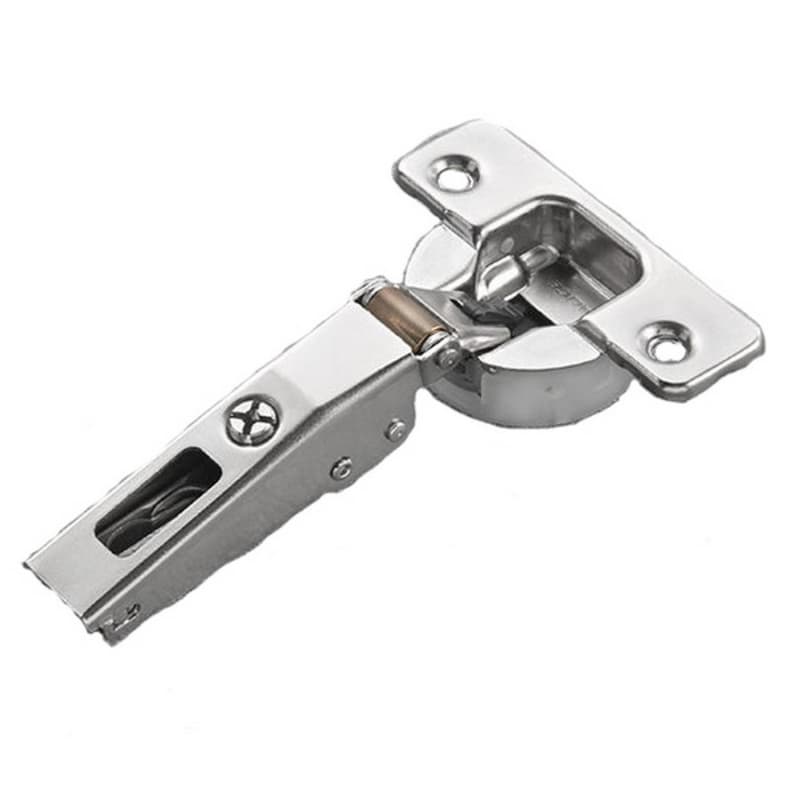

Series 700 110° Opening Hinge, 45mm Bore Pattern, Silentia+ Soft-Closing, 1/2" Overlay, Nickel-Plated, Logica
Item # SALC7J6DE9
•Mfr # C7J6DE9
$4.86
/Each
300 items
$4.15/Each
Mounting Type: Tool-Free
Min Order: 1
Qty mult. by: 1
Product Details
Silentia+ allows a perfect and constant closing of the door in any condition, use and application. The innovative soft-close technology guarantees excellent performances to the complete range of hinges. Silentia+ includes numerous technological elements in the required spaces and maintains the aesthetics of the hinges of the first generation.
Features:
• The decelerating effect is adjusted by using a simple switch
• Dimensions of the O35mm cup
• Hinges for minimum 16mm thick doors
• 13.5mm cup depth
• 110? opening

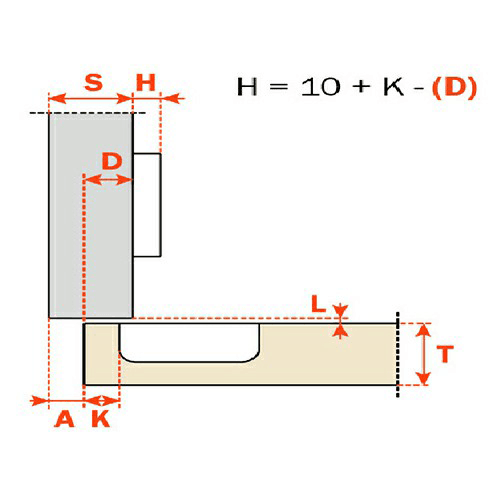

• Possible drilling distance on the door (K): from 3 to 6mm
• Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
Features:
• The decelerating effect is adjusted by using a simple switch
• Dimensions of the O35mm cup
• Hinges for minimum 16mm thick doors
• 13.5mm cup depth
• 110? opening
• Possible drilling distance on the door (K): from 3 to 6mm
• Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
Specifications
| Box Quantity | 300 |
| Product Type | |
| Mounting Type | Tool-Free |
| Overlay | 1/2" |
| Closing Type | Soft-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 13.5mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
