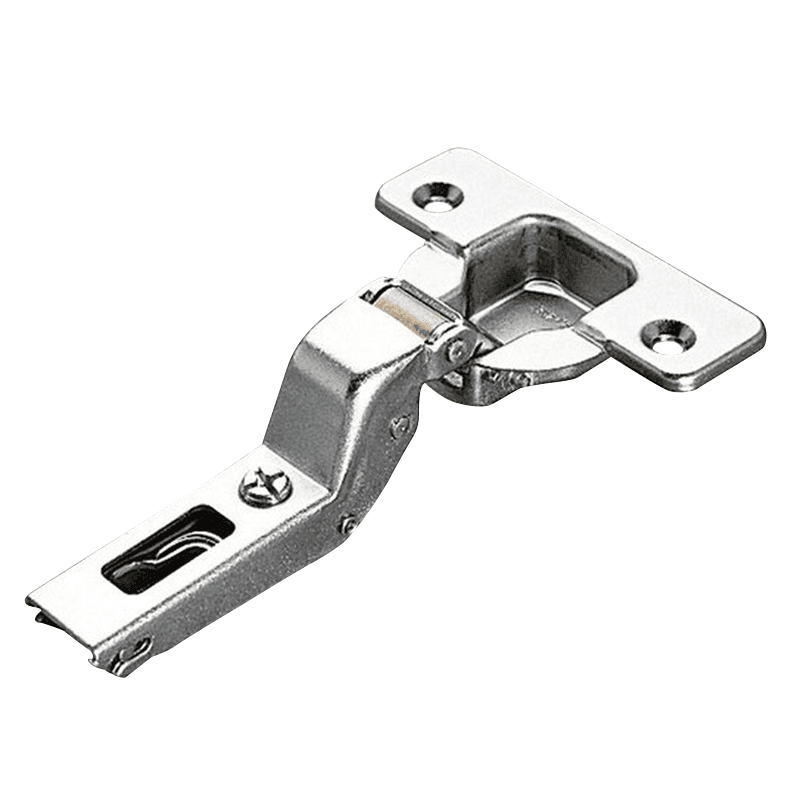

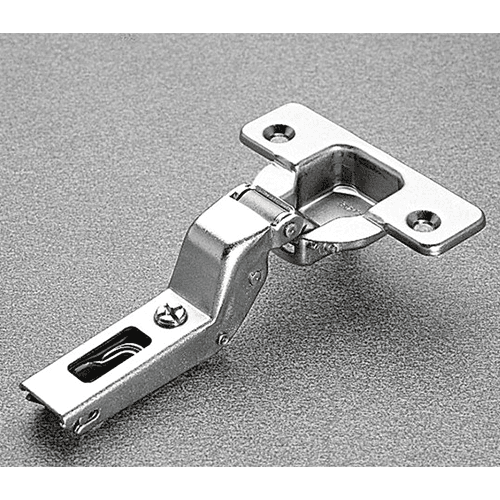

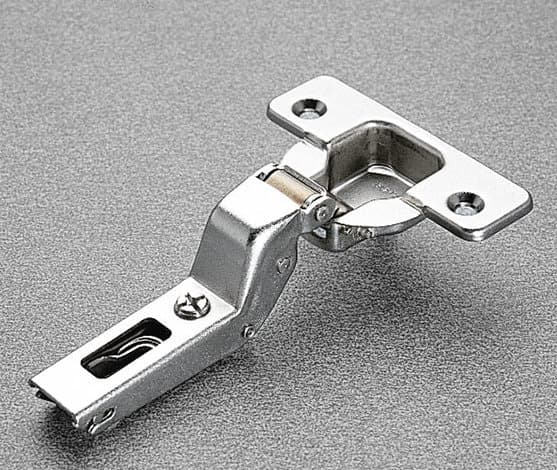

Series 200 110° Opening Hinge, 45mm Bore Pattern, Free-Swinging, Inset, Nickel-Plated, Screw-On
Item # SALC2P4P99
•Mfr # C2P4P99
$2.05
/Each
300 items
$1.88/Each
Mounting Type: Screw-On
Backordered
Min Order: 1
Qty mult. by: 1
Product Details
Features:
• Screw-on mount
• Standard euro hinge in Nickel-Plated finish
• Salice Series 200 hinges are designed for use in both residential and commercial cabinets
• Series 200 hinges exceed ANSI/BHMA Grade 2 standards and meet ISO9001 and ISO14001 environmental certifications
• All steel hinge is nickel plated for corrosion resistance and is permanently self lubricating utilizing environmentally safe lubricants
• 200 Series 110 degree opening hinges have:
• Cup depth of only 11mm making the hinge compatible with most cabinet door profiles
• Hinge cup edge drilling distance of 3mm to 6mm
• Patented parallel side-to-side adjustment of +4.5mm to -1.5mm via hinge arm screw
• Series 200 hinges are compatible with Smove soft-close door devices
• Series 200 hinges are designed to work with all Salice mounting plates
• Also available with Silentia: Integrated soft close action
• Screw-on mount
• Standard euro hinge in Nickel-Plated finish
• Salice Series 200 hinges are designed for use in both residential and commercial cabinets
• Series 200 hinges exceed ANSI/BHMA Grade 2 standards and meet ISO9001 and ISO14001 environmental certifications
• All steel hinge is nickel plated for corrosion resistance and is permanently self lubricating utilizing environmentally safe lubricants
• 200 Series 110 degree opening hinges have:
• Cup depth of only 11mm making the hinge compatible with most cabinet door profiles
• Hinge cup edge drilling distance of 3mm to 6mm
• Patented parallel side-to-side adjustment of +4.5mm to -1.5mm via hinge arm screw
• Series 200 hinges are compatible with Smove soft-close door devices
• Series 200 hinges are designed to work with all Salice mounting plates
• Also available with Silentia: Integrated soft close action
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | Inset Overlay |
| Closing Type | Free-Swinging |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
