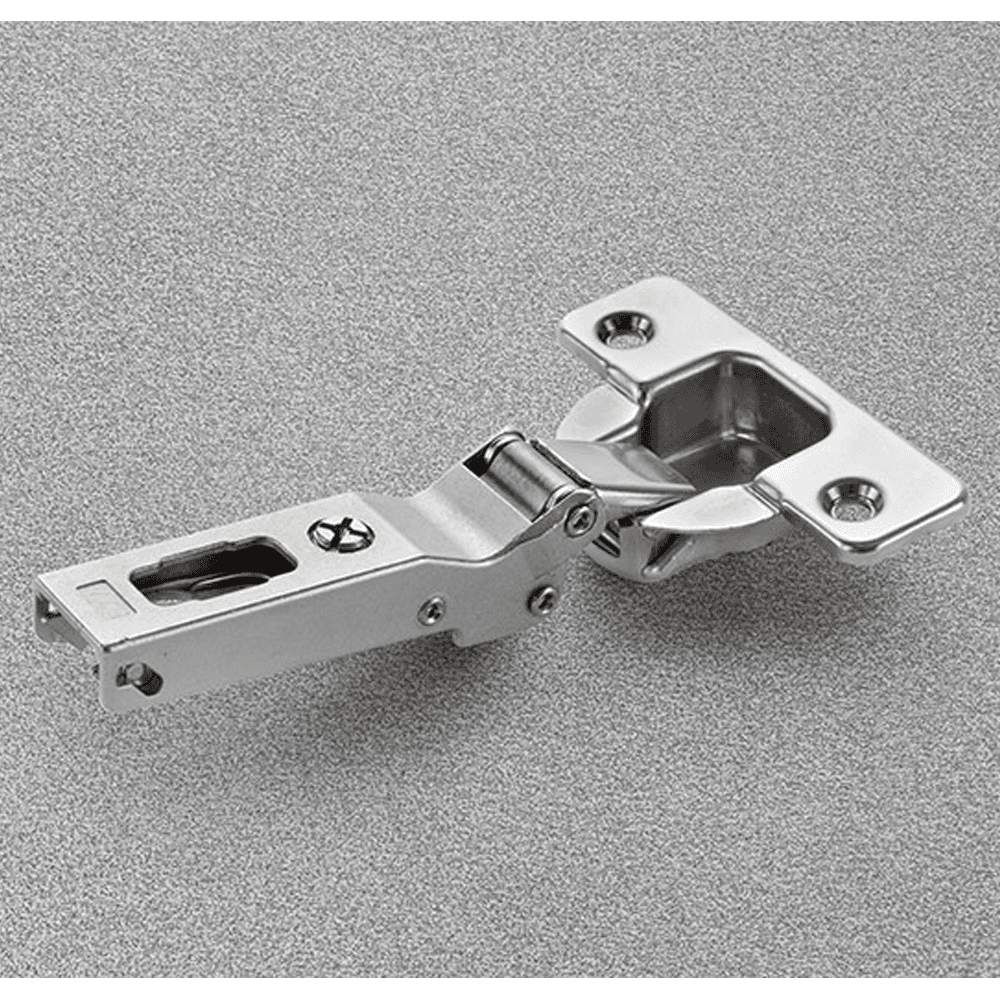

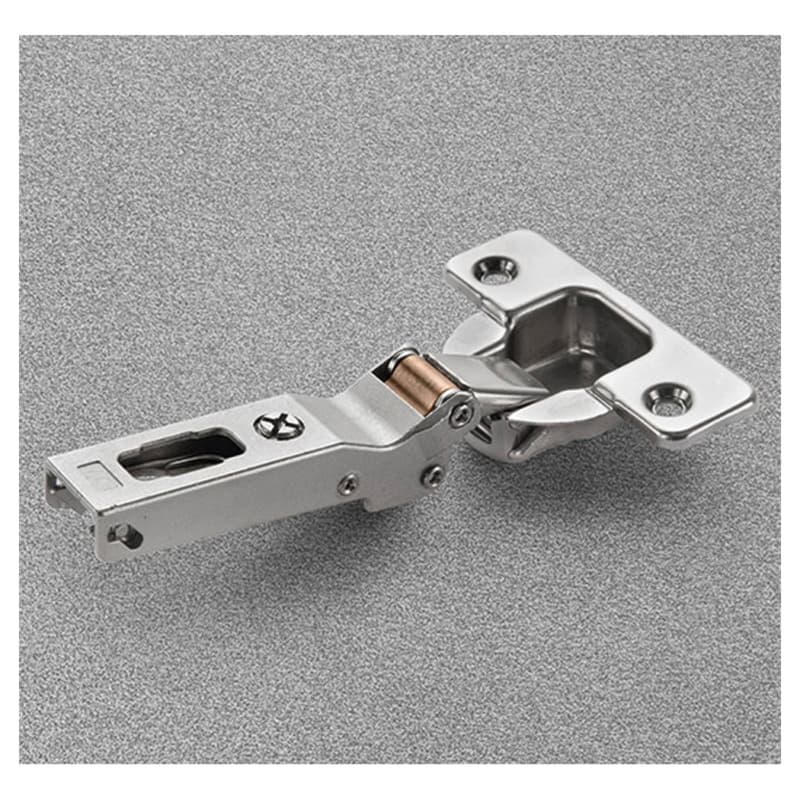

Series 200 -30° Angled Corner 120° Opening Hinge, Self-Closing, Overlay, Nickel-Plated, Logica
Item # SALC2JBW99
•Mfr # C2JBW99
Product Details
The Series 200 make up an integrated system of hinges developed to provide a solution to any situation involving concealed hinges.
Features:
• Logica mount
• -30? angled corner hinge
• Hinges for wooden doors with negative angled assembly

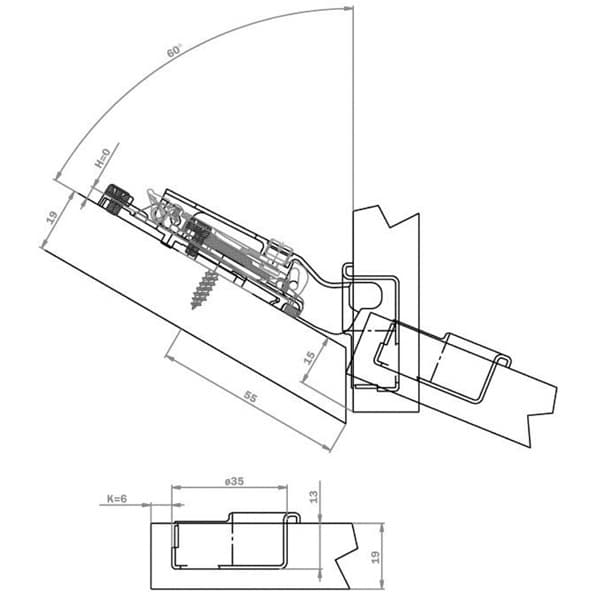

• Possible drilling distance on the door (K): from 3 to 6 mm
• Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
Features:
• Logica mount
• -30? angled corner hinge
• Hinges for wooden doors with negative angled assembly
• Possible drilling distance on the door (K): from 3 to 6 mm
• Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
Specifications
| Mounting Type | Tool-Free |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 120° |
| Model | |
| Hinge Type | -30° Angled |
| Finish | Nickel-Plated |
| Boring Pattern | |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | |
| Cabinet Type |
