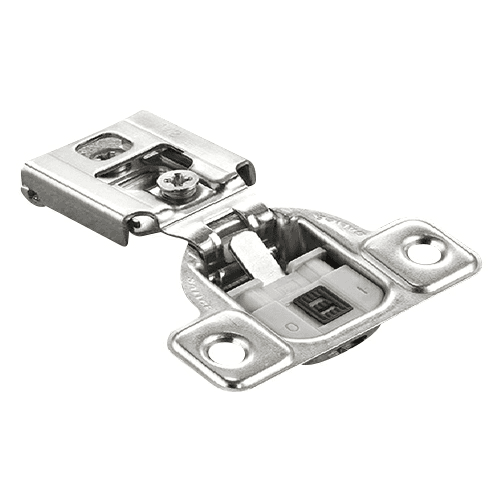

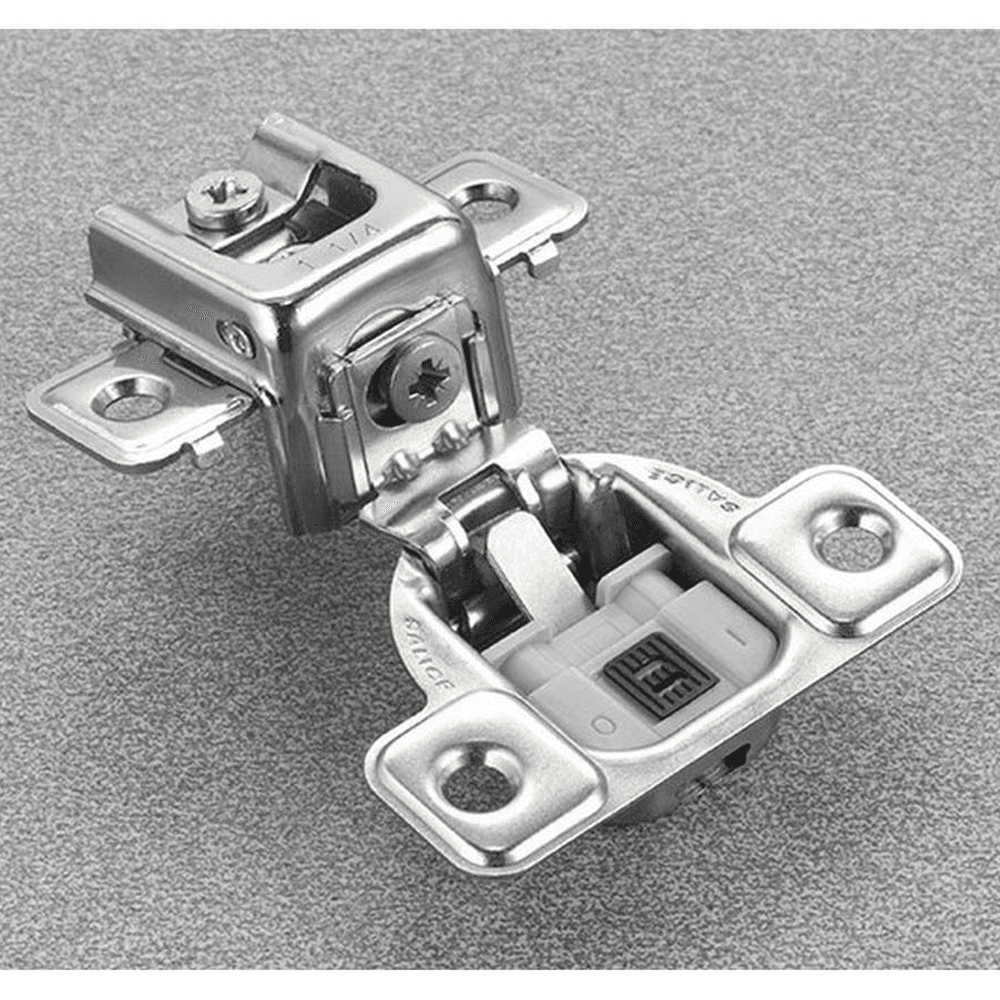

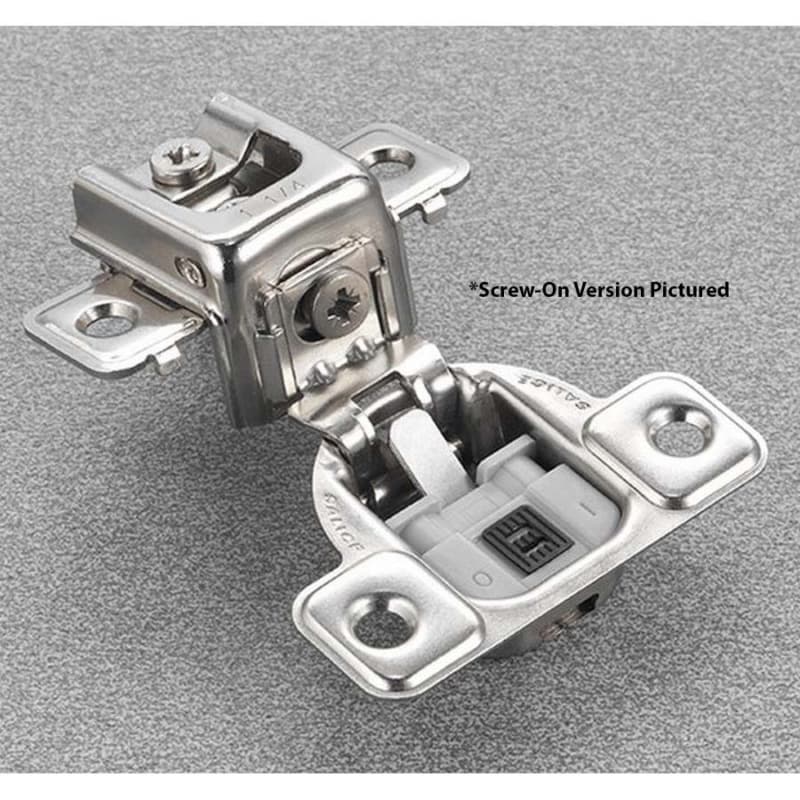

Series CU 106° Opening Wrap-Around Face Frame Hinge, 45mm Boring Pattern, Soft-Closing, 1-5/16" Overlay, Screw-On
Item # SALCUP3BD9
•Mfr # CUP3BD9
Mounting Type: Screw-On
Overlay: 1-5/16"
Product Details
When a different soft closing strength is desired, the decelerating mechanism on the hinge can be easily deactivated by using the activation switch clearly visible on the front of the unit. Adjustments made easy through eccentric cams.
Features:
Screw-on mount
1-5/16" overlay
Stamped steel
Minimum door thickness 14mm (9/16")
Maximum door thickness 22mm (7/8")
Cup depth 11mm (7/16?)
Opening 106?
Wrap-around (front tabs only)
All Silentia face frame hinges have a variable drilling
Side, height and depth adjustment
2 cam adjustment
Features:
Screw-on mount
1-5/16" overlay
Stamped steel
Minimum door thickness 14mm (9/16")
Maximum door thickness 22mm (7/8")
Cup depth 11mm (7/16?)
Opening 106?
Wrap-around (front tabs only)
All Silentia face frame hinges have a variable drilling
Side, height and depth adjustment
2 cam adjustment
Specifications
Mounting Type | Screw-On |
Overlay | 1-5/16" |
Closing Type | Soft-Closing |
Opening Angle | 106° |
Model | |
Hinge Type | Wrap-Around Face Frame |
Finish | Nickel-Plated |
Boring Pattern | 45mm |
Cup Diameter | 35mm |
Cup Depth | 11mm |
Material | Steel |
Cabinet Type | Face Frame |
