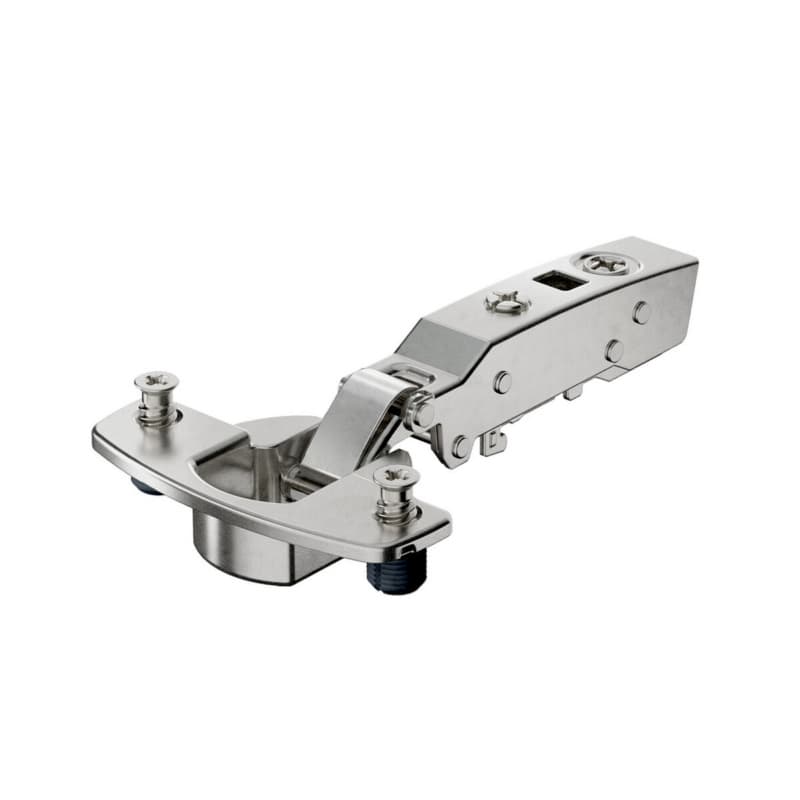

Sensys 8631i 95° Opening Thick Door Hinge, 45mm Bore Pattern, Self-Closing, Overlay, Nickel-Plated, Expando
50 items
Mounting Type: Expanding Dowels
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
Product Details
• Expando mounting type
• Sensys thick door hinge in Nickel-Plated finish, door thickness up to 32 mm
• With integrated silent system, with self closing feature (Sensys 8631i)
• Quality classification under EN 15570, Level 2
• For door thickness 15mm - 32mm
• Door mounting option overlay
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +3mm / -2mm
• Height adjustment at mounting plate
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Mounting Type | Expanding Dowels |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 95° |
| Model | |
| Hinge Type | Thick Door Hinge |
| Finish | Nickel-Plated |

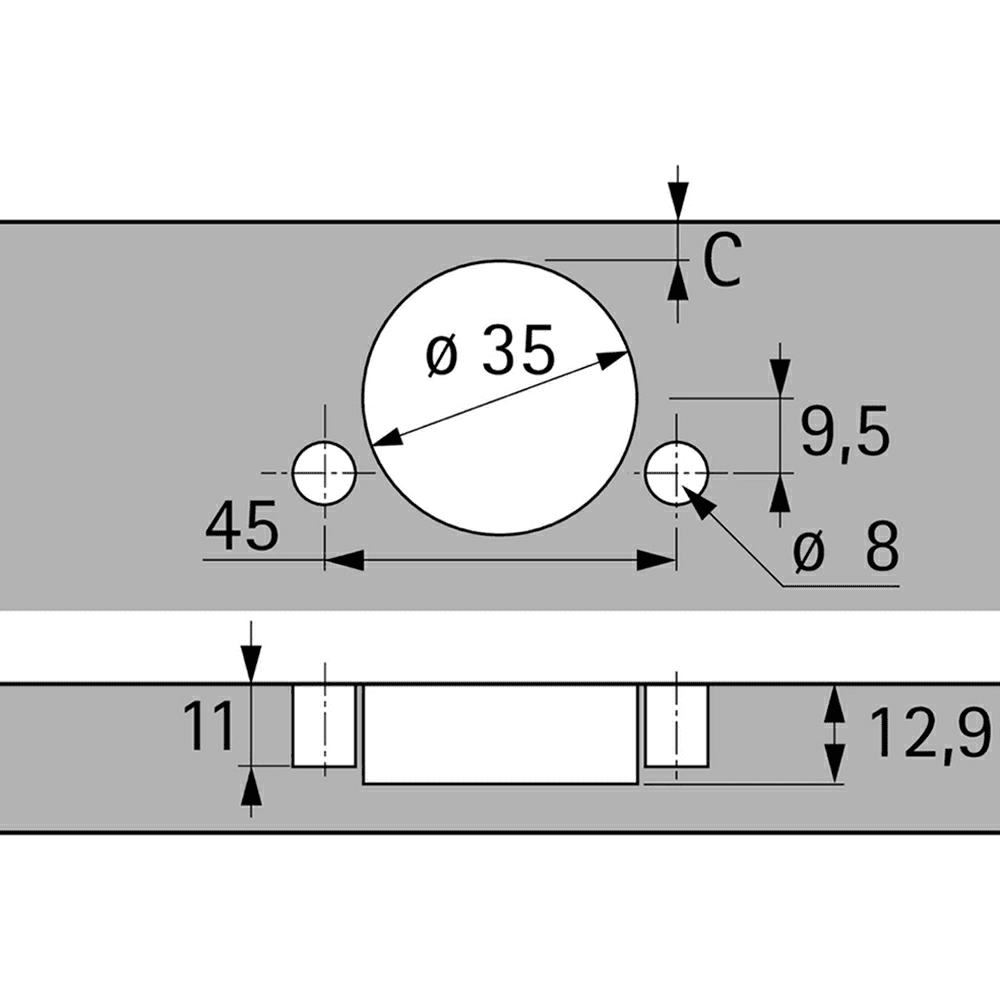

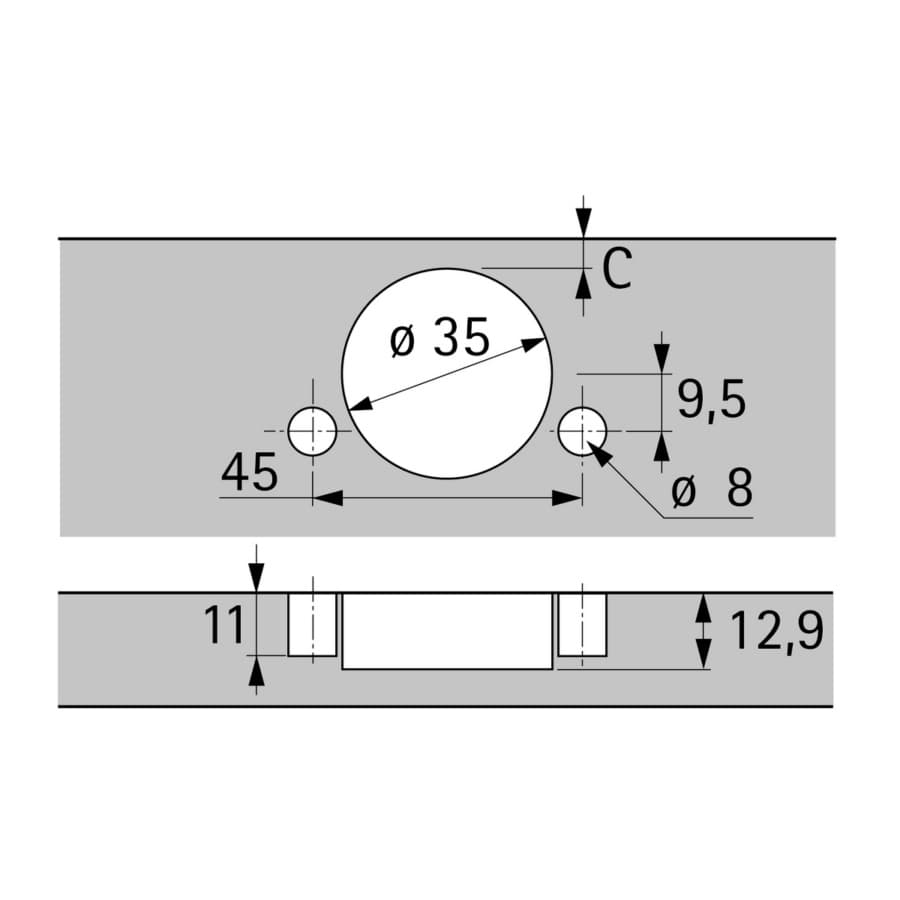

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.8mm |
| Material | Steel |
| Cabinet Type |
