Sensys 8646i 110° Opening Thin Door Hinge, 45mm Bore Pattern, Self-Closing, Inset, Nickel-Plated, Expando
50 items
Mounting Type: Expanding Dowels
Product Details
• Expando mounting type
• Sensys thin door hinge in Nickel-Plated finish, door thickness from 10 mm
• With integrated silent system, with self closing feature (Sensys 8646i)
• Quality classification under EN 15570, Level 3
• For door thickness 10mm - 19mm
• Door mounting option inset
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +3mm / -2mm
• Height adjustment at mounting plate
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Expanding Dowels |
| Overlay | Inset Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Thin Door Hinge |
| Finish | Nickel-Plated |

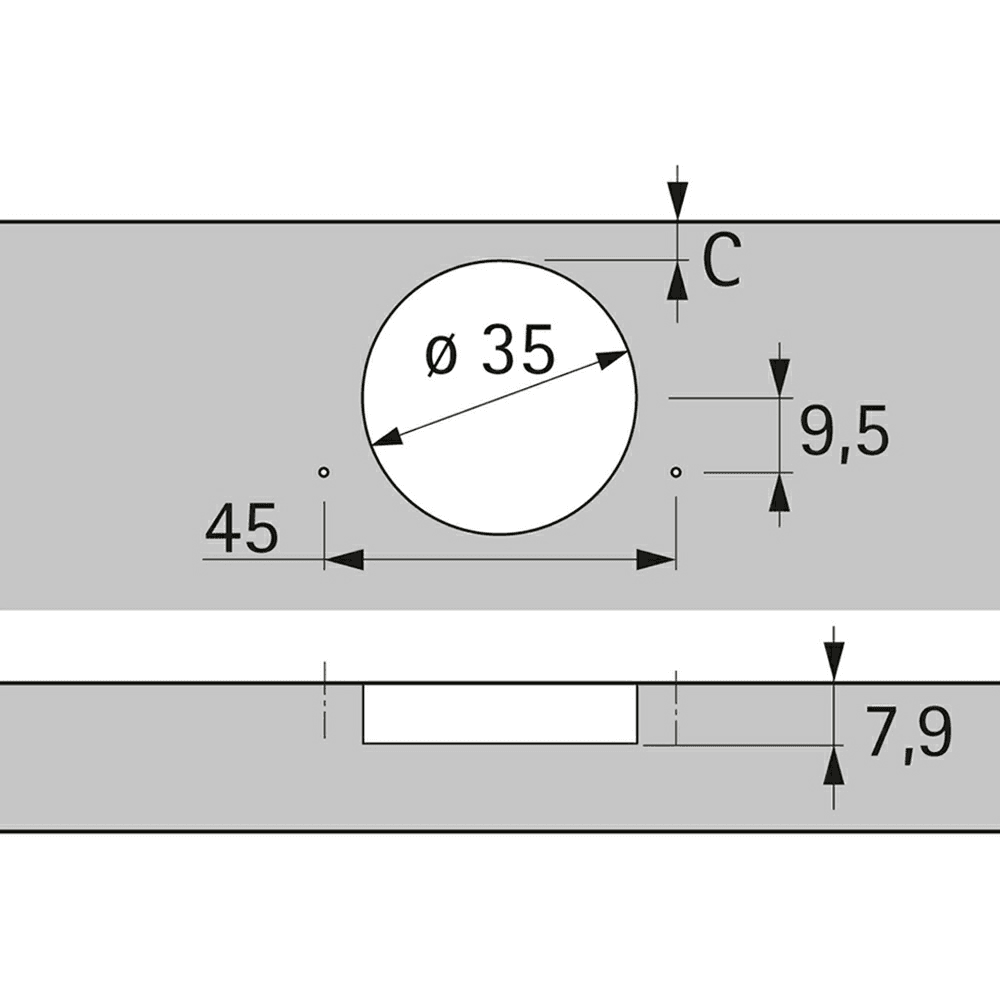

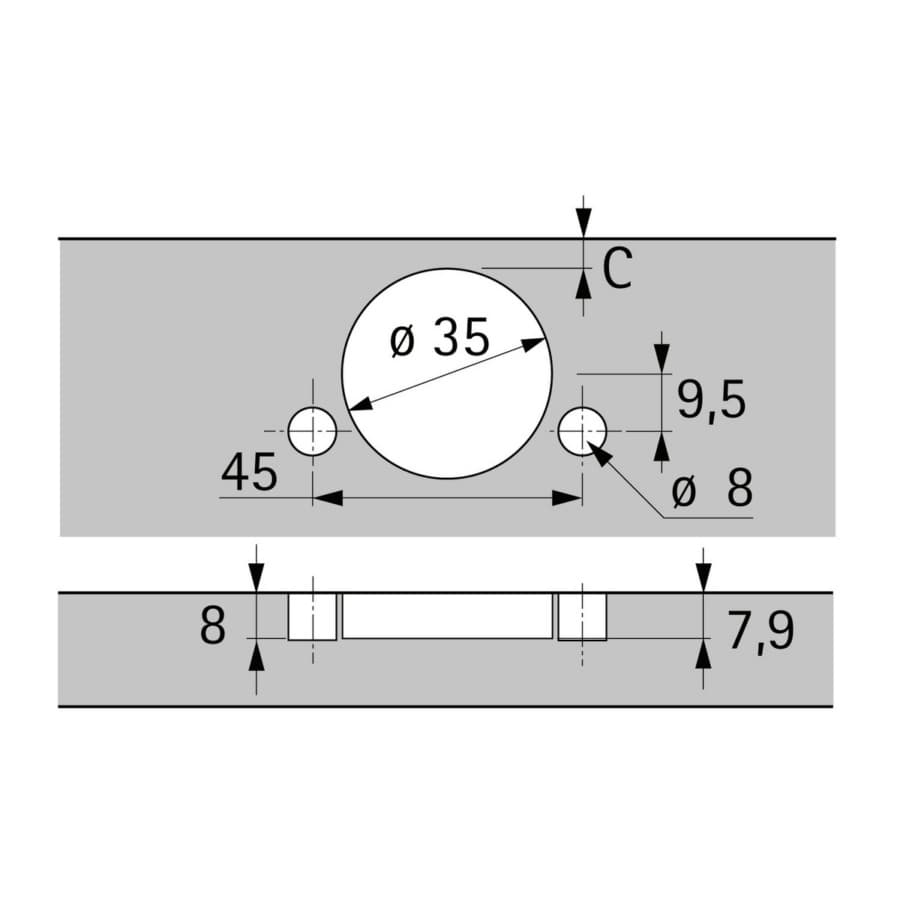

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 7.8mm |
| Material | Steel |
| Cabinet Type |
