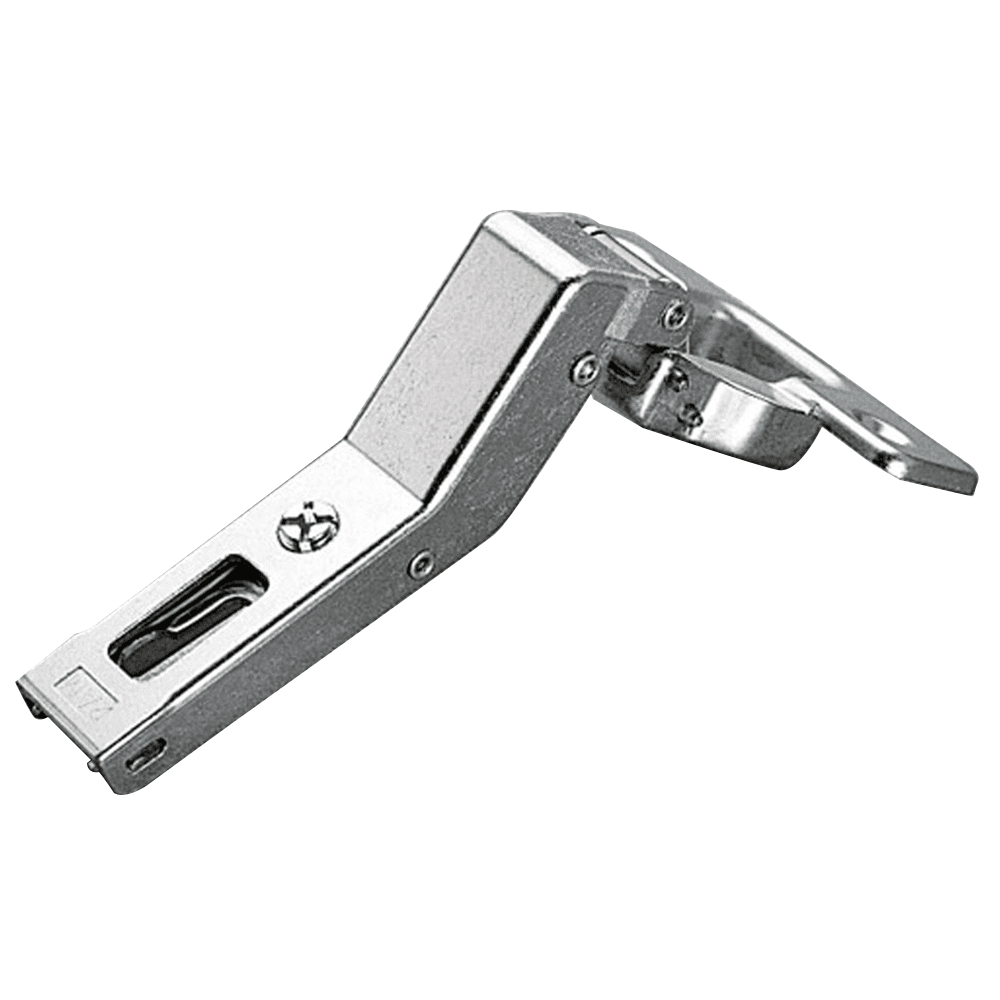

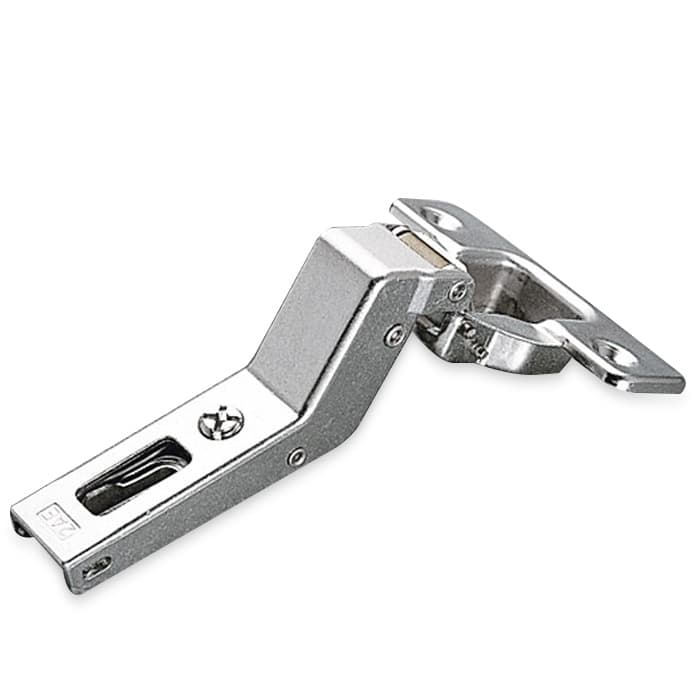

Series 200 +45° Angled Corner 94° Opening Hinge, Self-Closing, Overlay, Nickel-Plated, Logica
Item # SALC2JBM99
•Mfr # C2JBM99
$4.60
/Each
25 items
$4.22/Each
Mounting Type: Tool-Free
Min Order: 1
Qty mult. by: 1
Product Details
The Series 200 make up an integrated system of hinges developed to provide a solution to any situation involving concealed hinges.
Features:
• +45? Angled hinge
• Logica mounting type
• Hinges for wooden doors with positive angled assembly

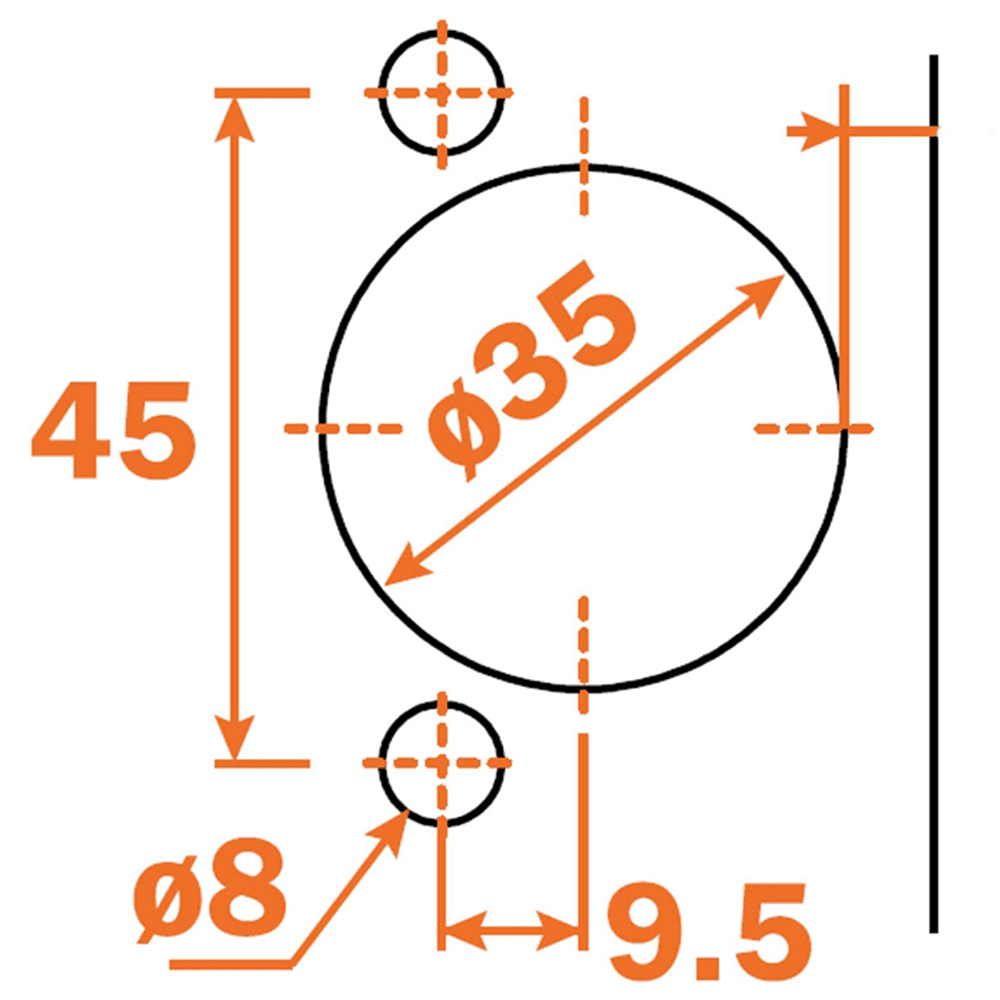

• Dimensions of the O 35mm cup
• Possible drilling distance on the door (K): from 3mm to 9mm
• Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
Features:
• +45? Angled hinge
• Logica mounting type
• Hinges for wooden doors with positive angled assembly
• Dimensions of the O 35mm cup
• Possible drilling distance on the door (K): from 3mm to 9mm
• Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Tool-Free |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 94° |
| Model | |
| Hinge Type | +45° Angled |
| Finish | Nickel-Plated |
| Boring Pattern | |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | |
| Cabinet Type |
