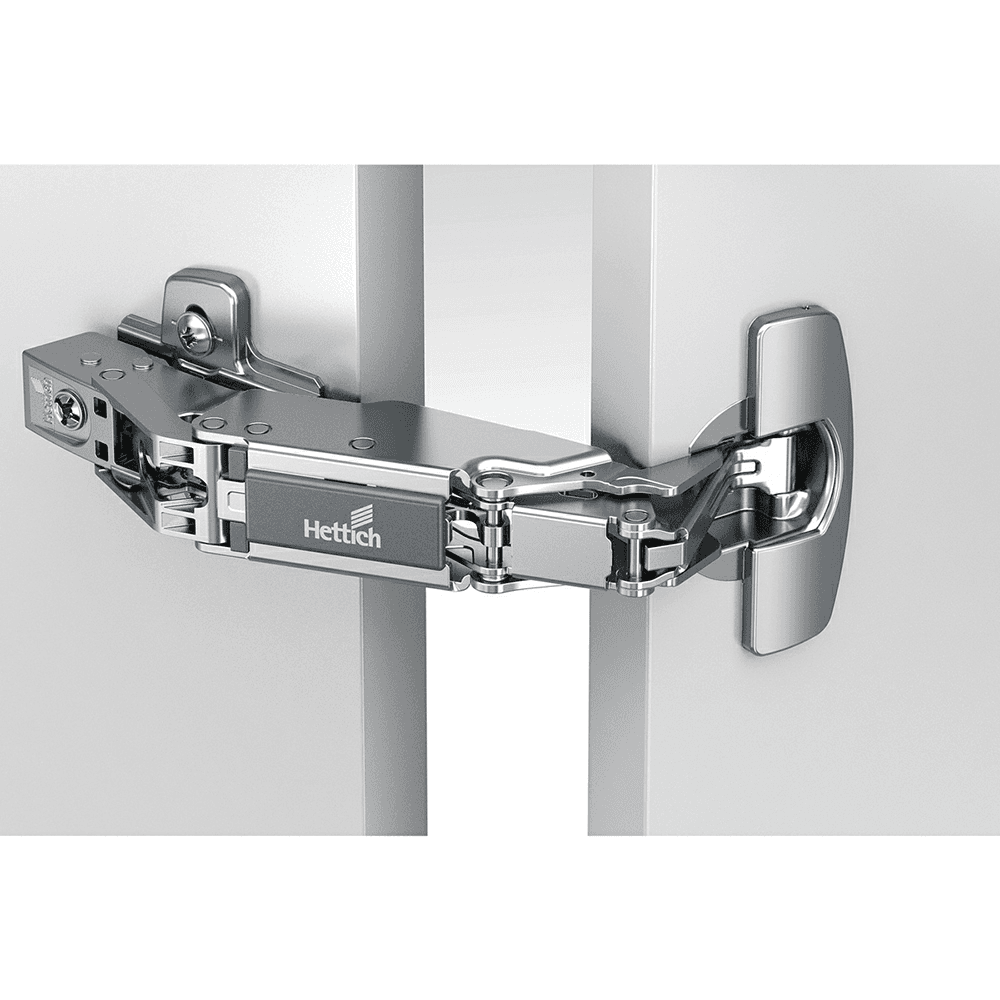

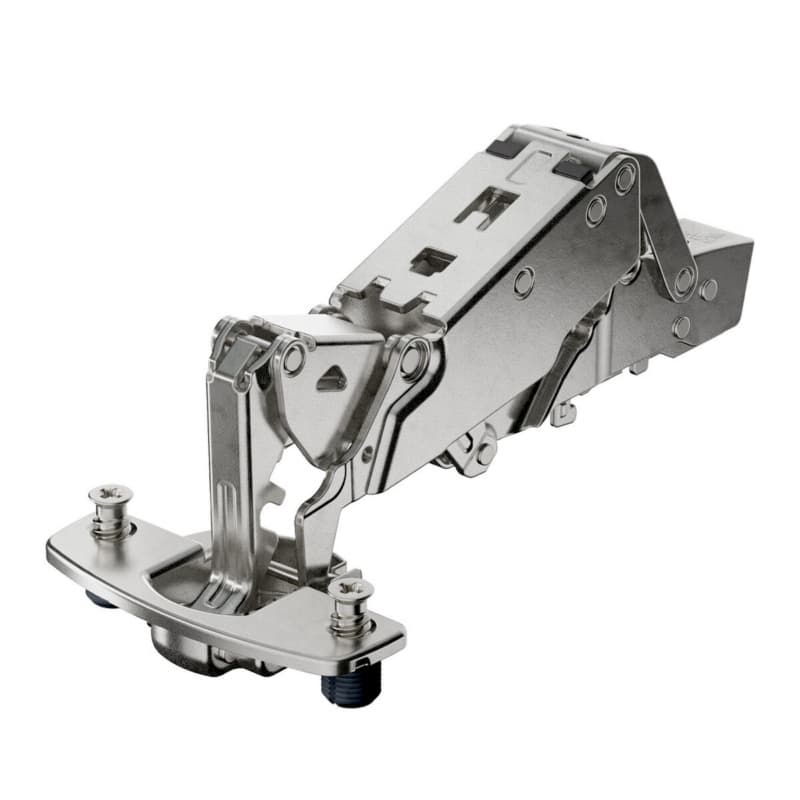

Sensys 8657i 165° Opening Zero Protrusion Hinge, 45mm Bore Pattern, Soft-Closing, Overlay, Nickel-Plated, Expando
50 items
Mounting Type: Expanding Dowels
Product Details
Features:
• Expando mounting type
• Sensys wide angle hinge in Nickel-Plated finish, with zero protrusion
• With integrated silent system, with Soft closing feature (Sensys 8657i)
• Quality classification under EN 15570, Level 3
• For door thickness 15mm - 32mm
• Door mounting option overlay
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +3mm / -2mm
• Height adjustment at mounting plate
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Expanding Dowels |
| Overlay | Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 165° |
| Model | |
| Hinge Type | Zero Protrusion Hinge |
| Finish | Nickel-Plated |

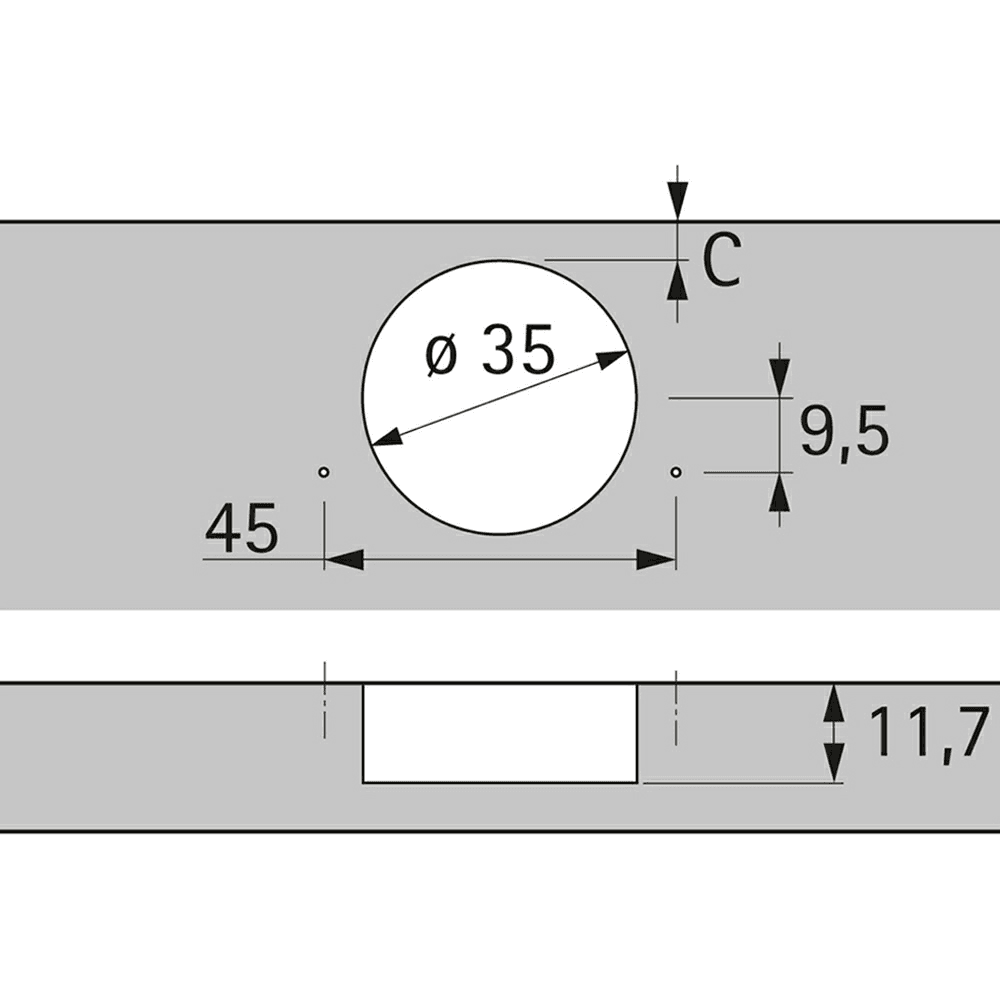

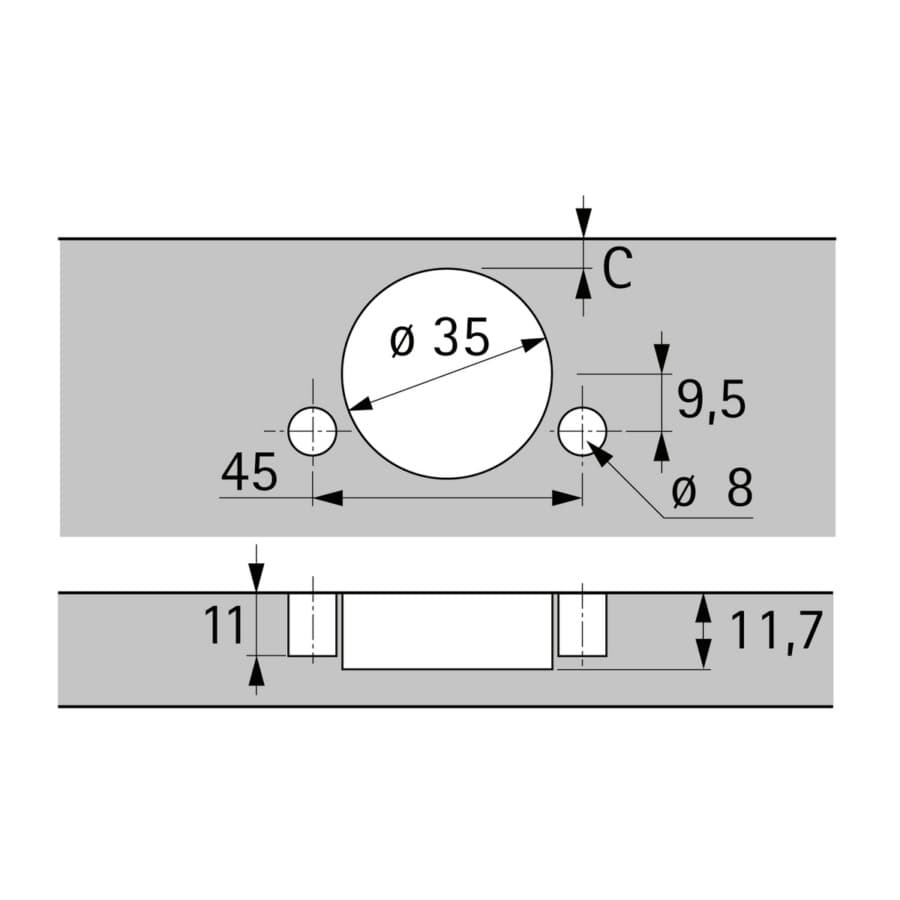

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11.6mm |
| Material | Steel |
| Cabinet Type |
