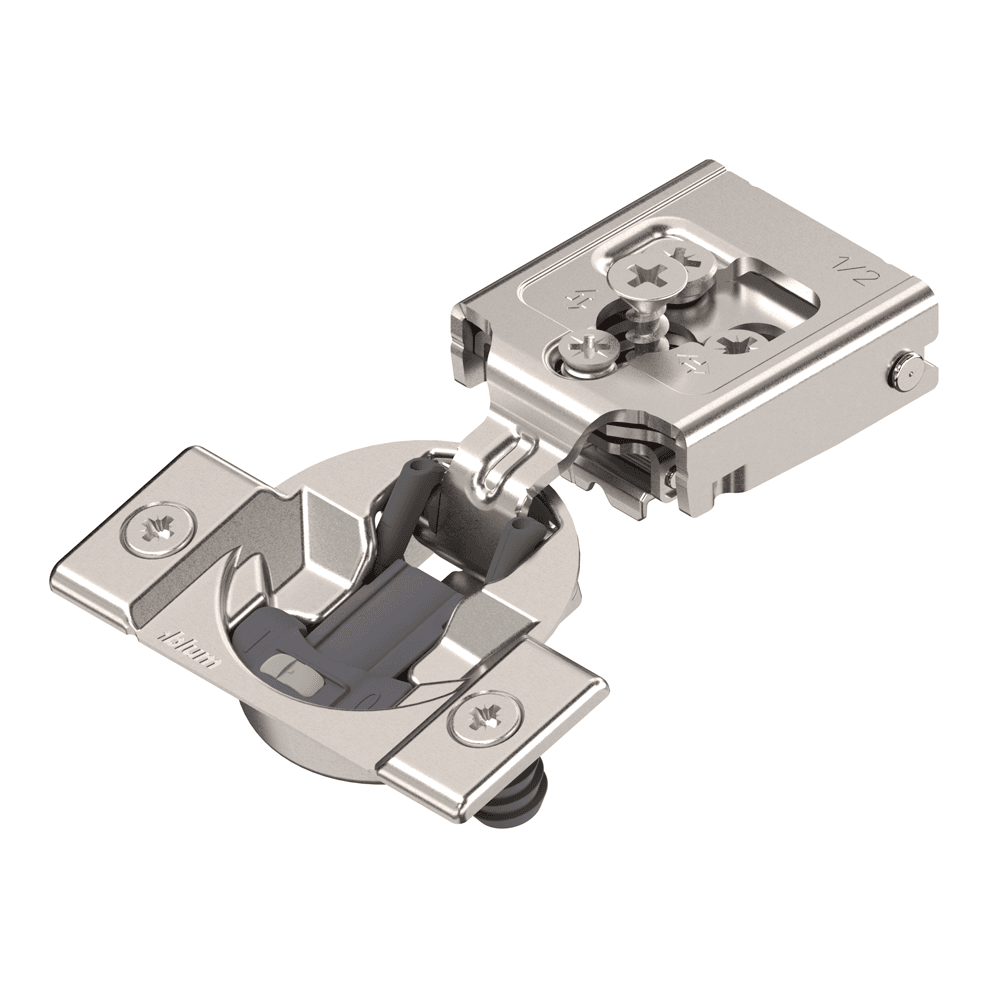

Compact 30C2 105° Opening Edge-Mount Face Frame Hinge, 45mm Boring Pattern, Soft-Closing, 1/2" Overlay, Dowelled
Item # B30C258C.E8
•Mfr # 30C258BSE8
$3.83
/Each
250 items
$3.77/Each
Mounting Type: Dowelled
Overlay: 1/2"
In Stock
161 in stock at Brea, CA
Min Order: 1
Qty mult. by: 1
Product Details
• Doors can be removed and reattached quickly and tool free
• Pre-mounted wood screw for precise installation
• BLUMOTION integrated into hinge cup
• Deactivation switch for small/light doors
• Overload safety feature
• All hinges meet or exceed ANSI/BHMA Grade 2 requirements
• Pre-mounted wood screw for precise installation
• BLUMOTION integrated into hinge cup
• Deactivation switch for small/light doors
• Overload safety feature
• All hinges meet or exceed ANSI/BHMA Grade 2 requirements
Specifications
| Box Quantity | 250 |
| Product Type | |
| Mounting Type | Dowelled |

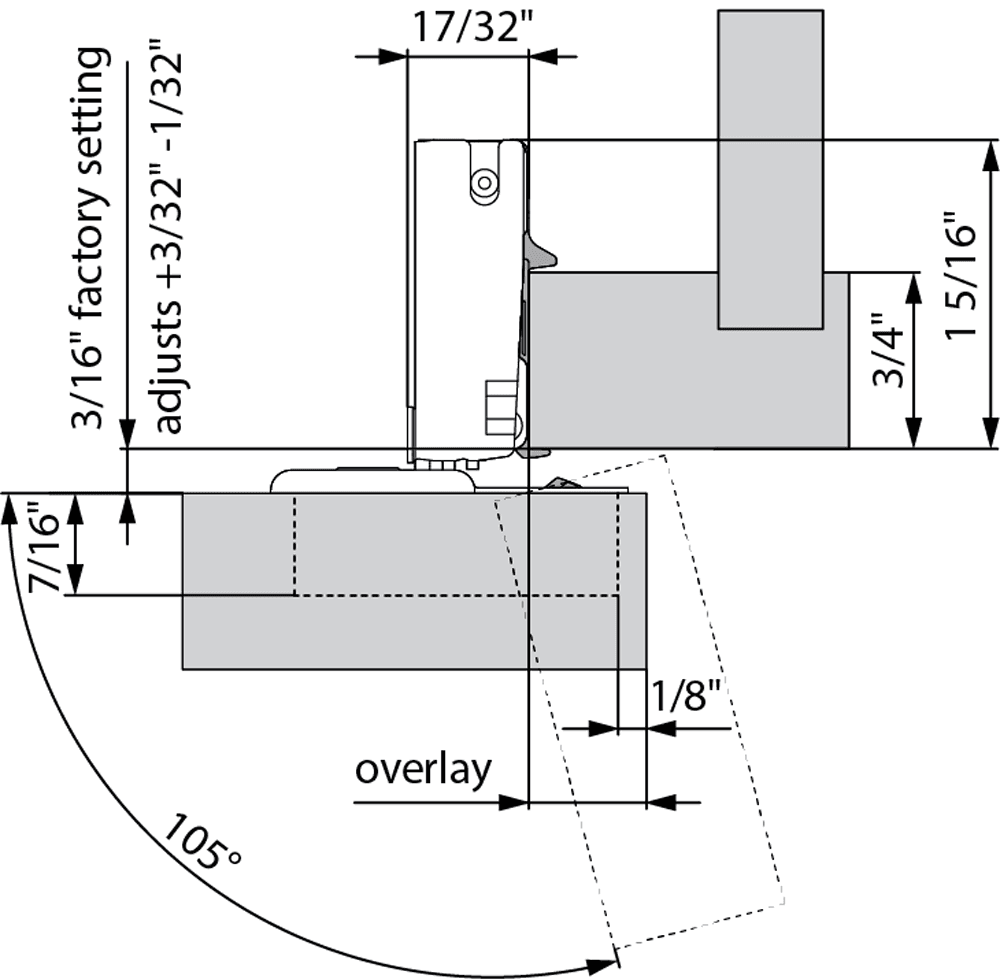

| Overlay | 1/2" |
| Closing Type | Soft-Closing |
| Opening Angle | 105° |
| Model | |
| Hinge Type | Edge-Mount |
| Finish | Nickel-Plated |

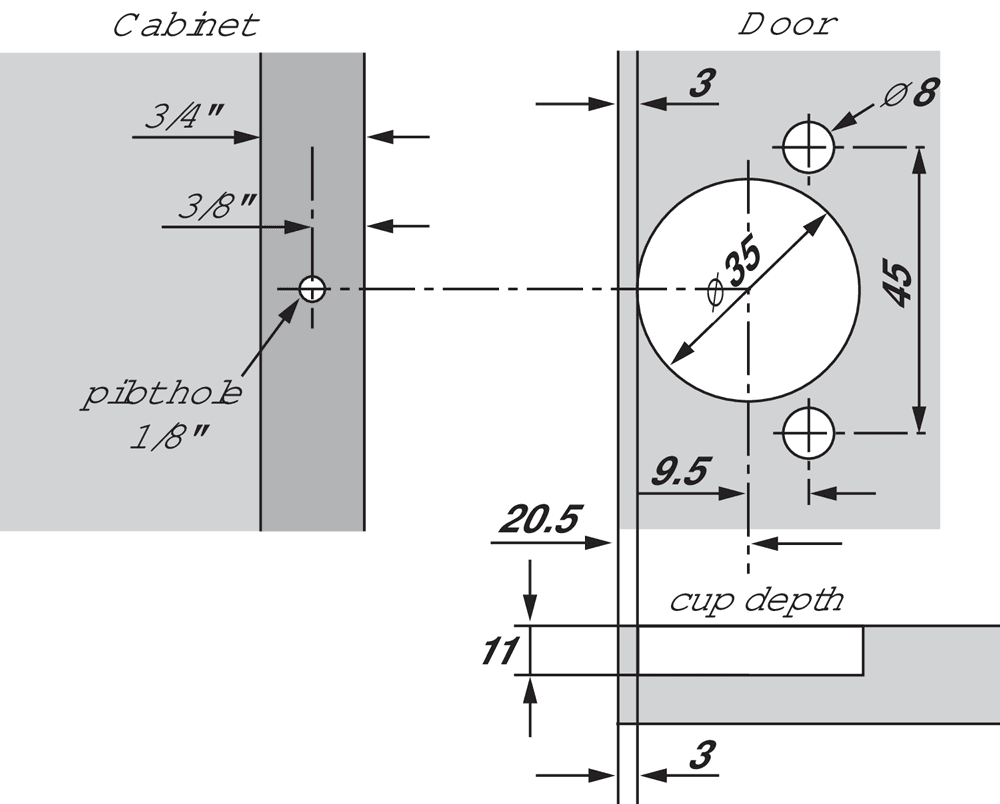

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 7/16" |
| Material | Steel |
| Cabinet Type | Face Frame |
