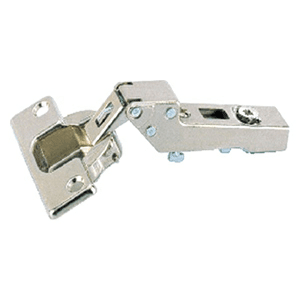

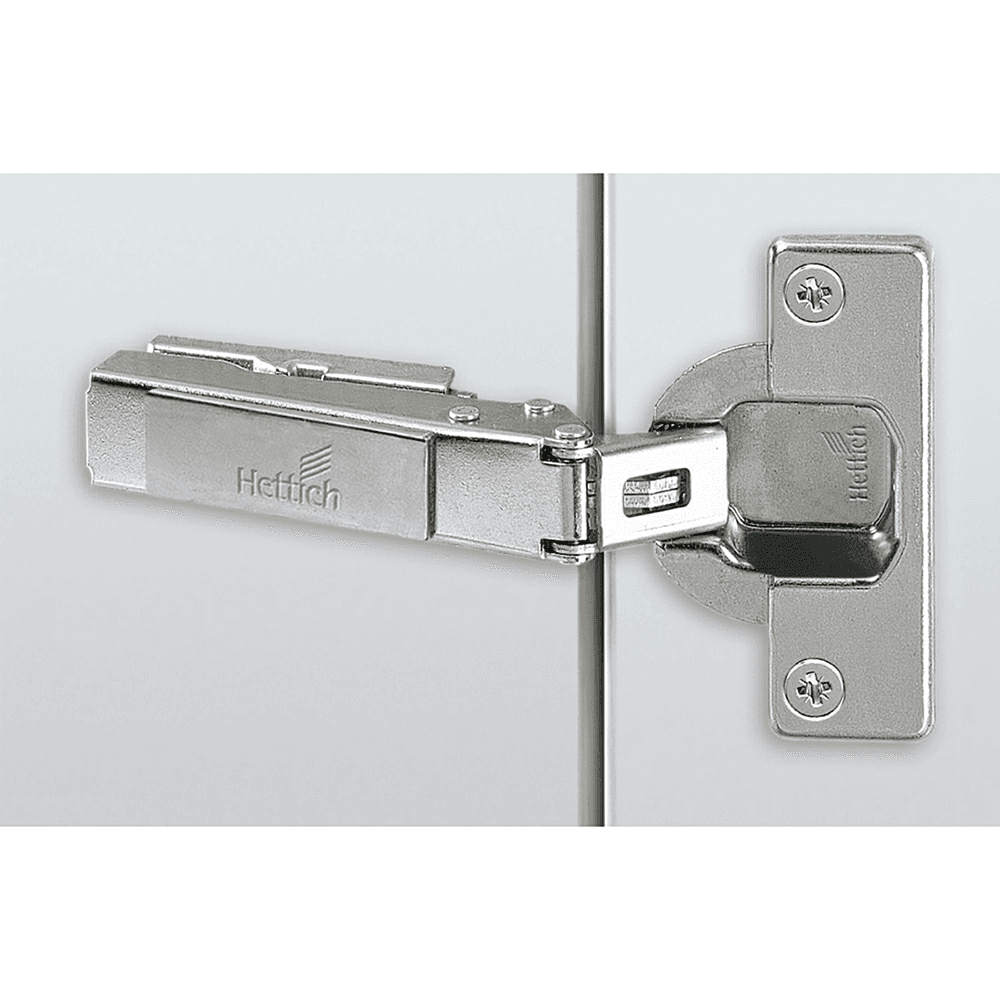

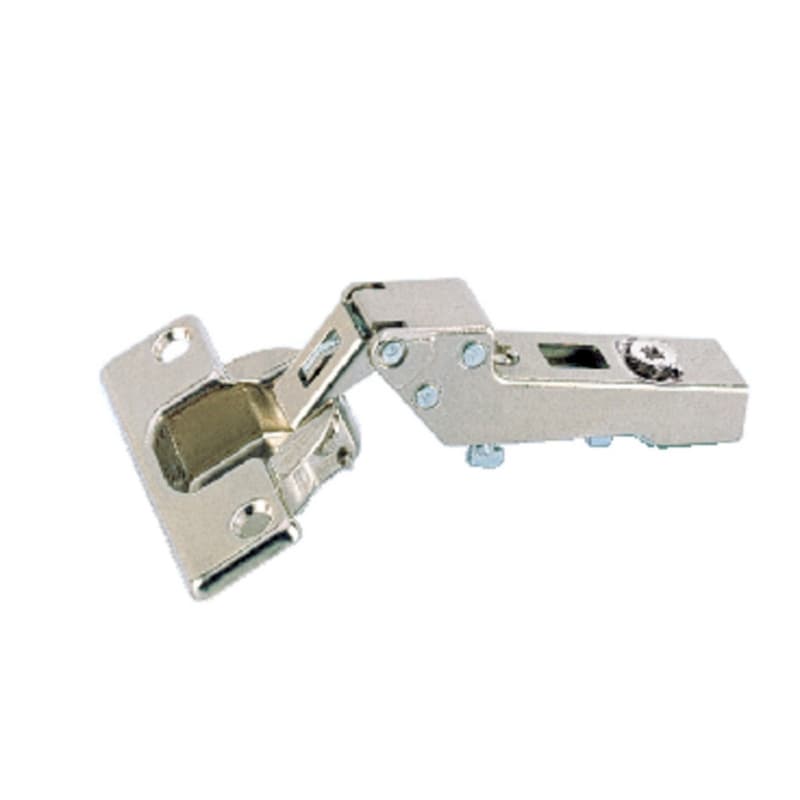

Intermat 9944 125° Opening Hinge, 45mm Bore Pattern, Self-Closing, Half Overlay, Nickel-Plated, Screw-On
200 items
Mounting Type: Screw-On
Product Details
• Screw-on mounting hinge
• 125? Intermat hinge in Nickel-Plated finish
• With self closing feature (Intermat 9944)
• Quality classification under EN 15570, Level 2
• For door thickness 15mm - 28mm

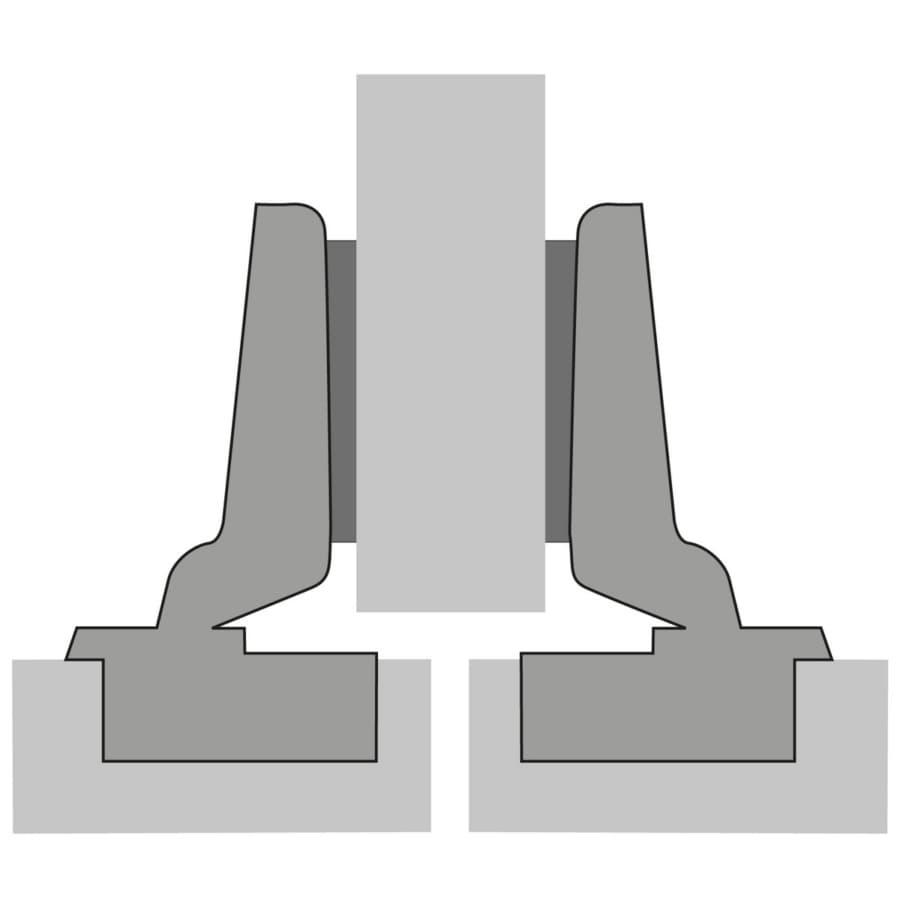

• Door mounting option half overlay
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +2mm / -1.5mm
• Height adjustment at mounting plate
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | Half Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 125° |
| Model | |
| Hinge Type | Intermat Hinge |
| Finish | Nickel-Plated |

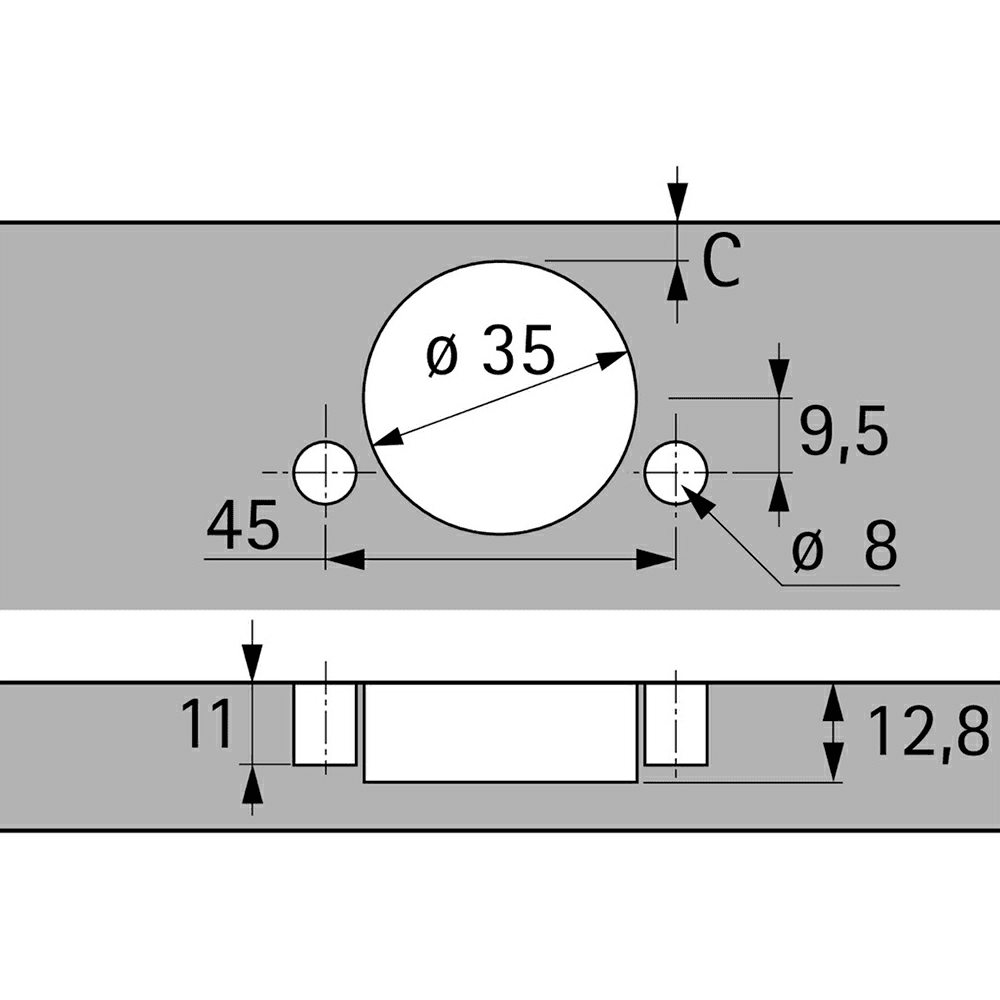

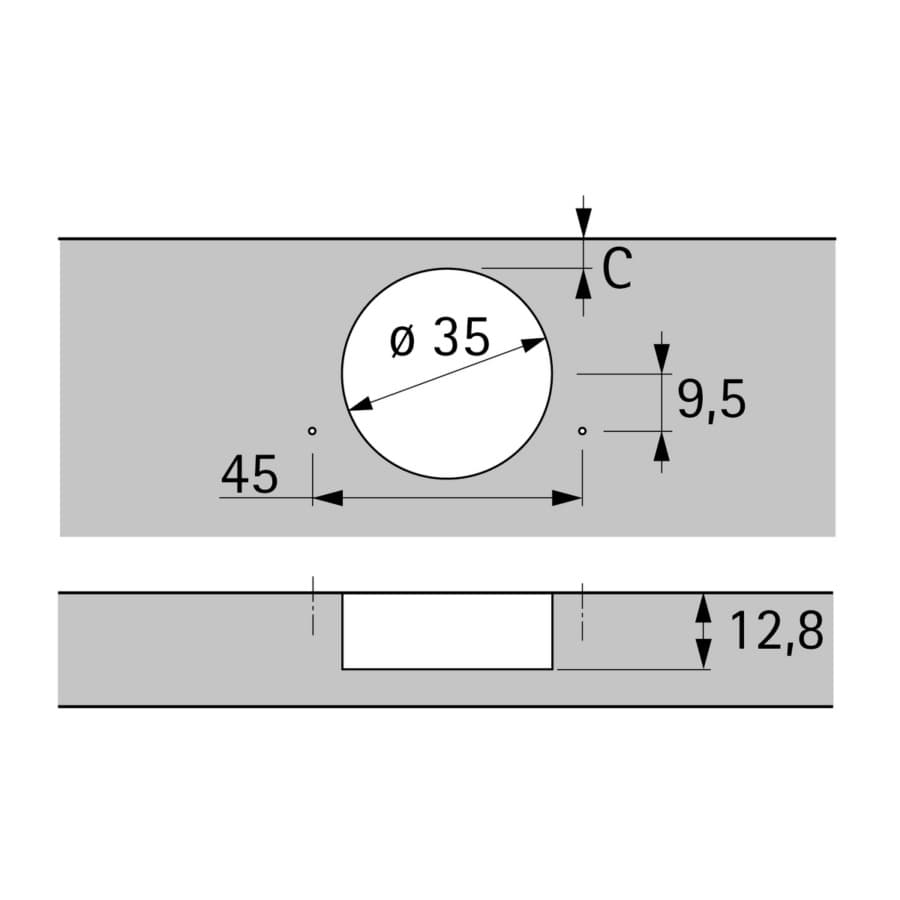

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.7mm |
| Material | Steel |
| Cabinet Type |
