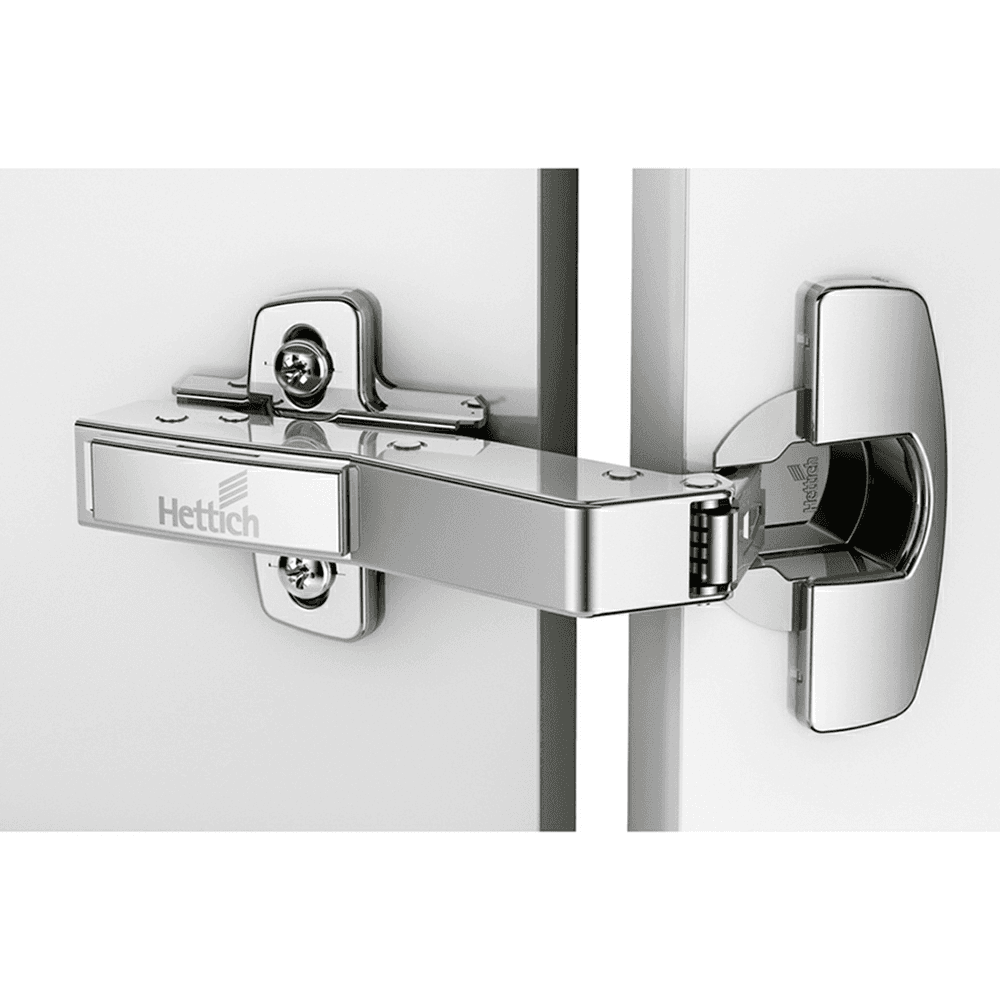

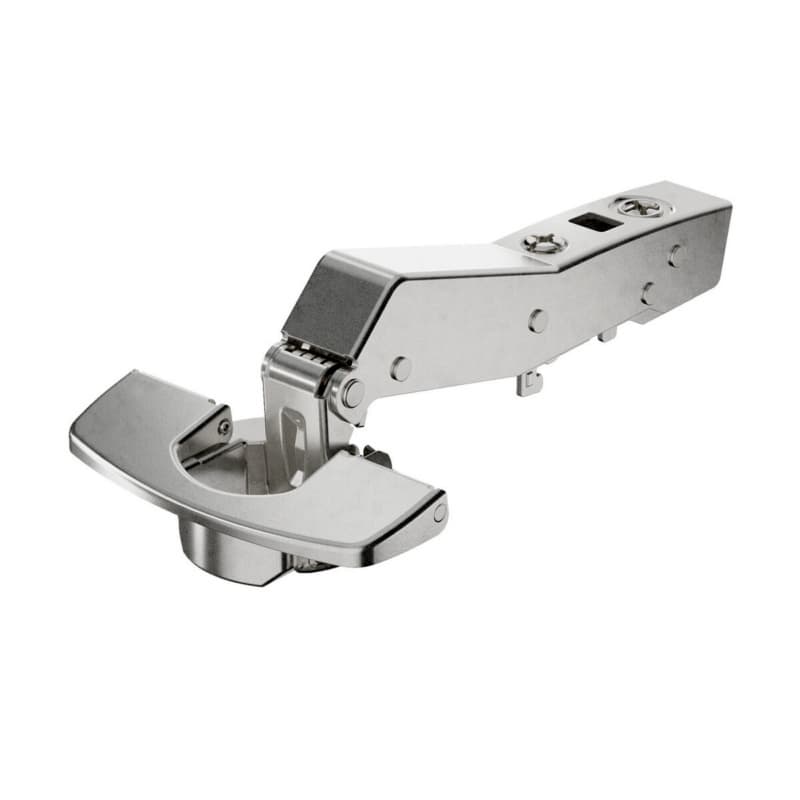

9088079 Sensys 8639i W45 95° Opening Hinge with Integrated Silent System, Self Closing, Overlay, Nickel-Plated, Fix Fast Assembly
50 items
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
Product Details
• Fix fast assembly mounting type
• With integrated silent system, with self closing feature (Sensys 8639i W45)
• Quality classification under EN 15570, Level 3
• For door thickness 15mm - 28mm
• Installation Fix fast assembly
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +3mm / -2mm
• Height adjustment at mounting plate
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Mounting Type | Tool-Free |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 95° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |

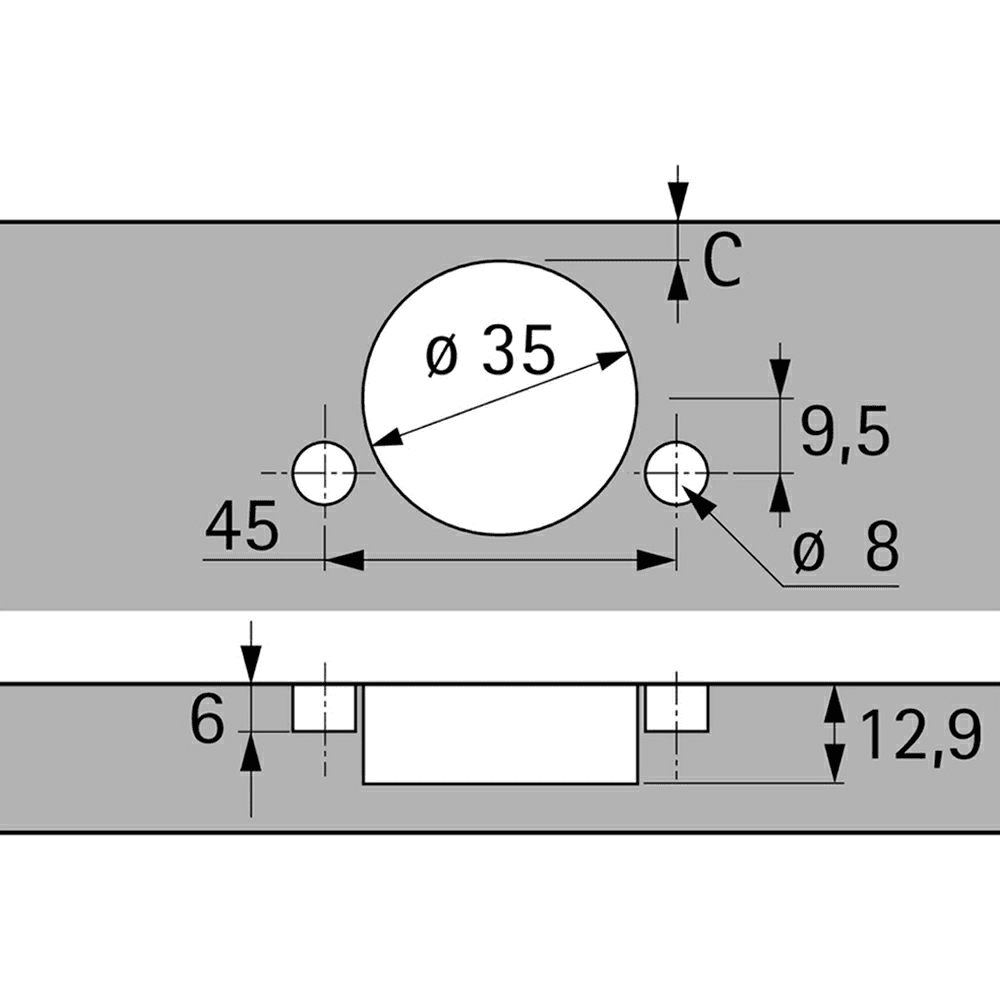

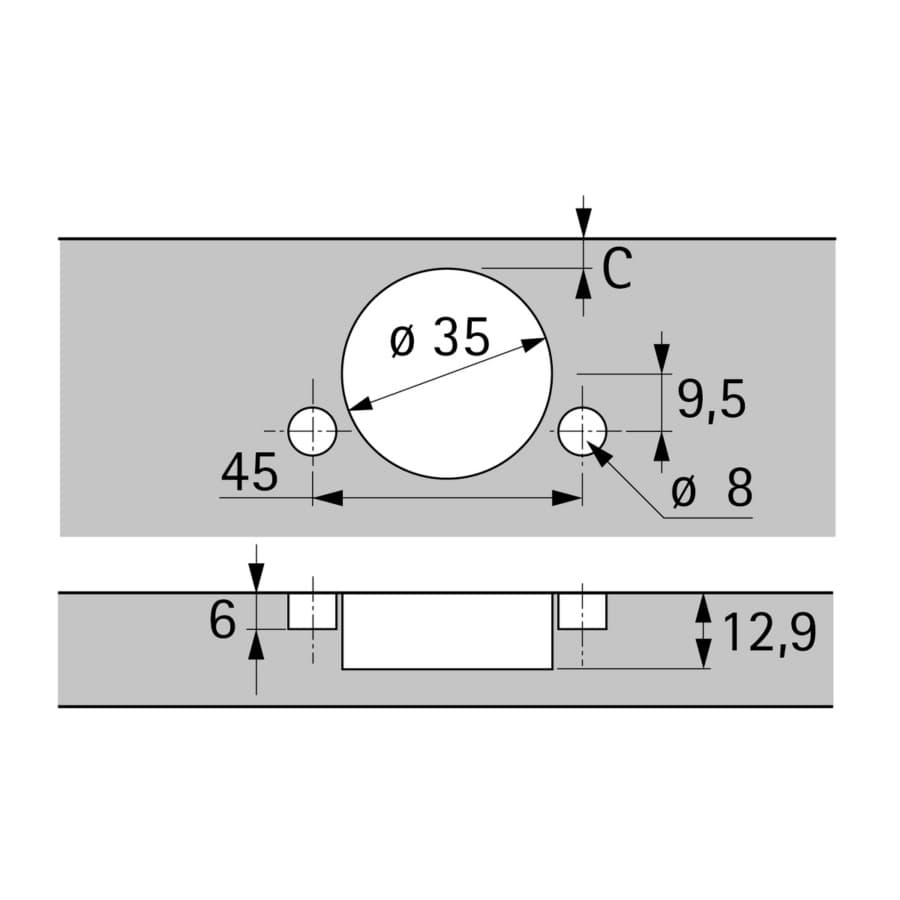

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.8mm |
| Material | Steel |
| Cabinet Type |
