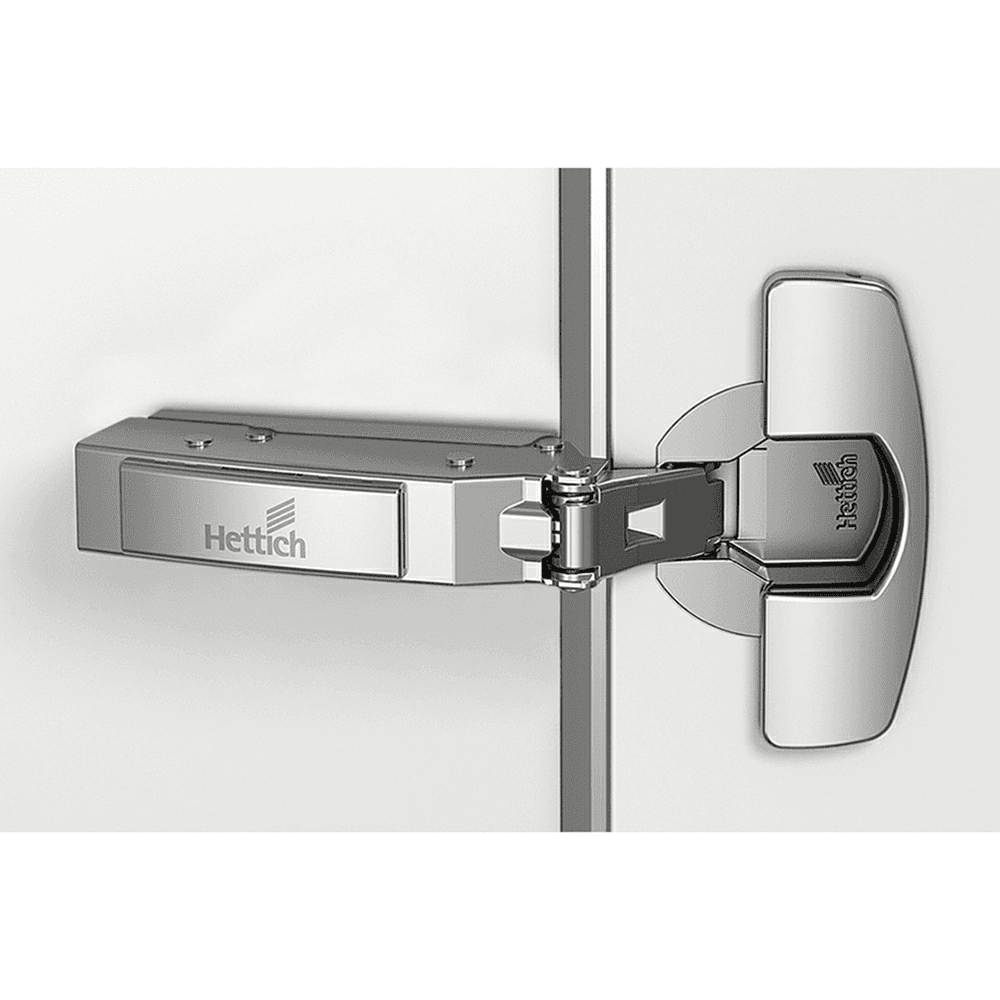

Sensys 8646i 110° Opening Thin Door Hinge, 45mm Bore Pattern, Self-Closing, Overlay, Nickel-Plated, Dowelled
Mounting Type: Dowelled
Product Details
• Dowelled mounting type
• Sensys thin door hinge in Nickel-Plated finish, door thickness from 10 mm
• With integrated silent system, with self closing feature (Sensys 8646i)
• Quality classification under EN 15570, Level 3
• For door thickness 10mm - 19mm
• Door mounting option overlay
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +3mm / -2mm
• Height adjustment at mounting plate
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Mounting Type | Dowelled |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Thin Door Hinge |
| Finish | Nickel-Plated |

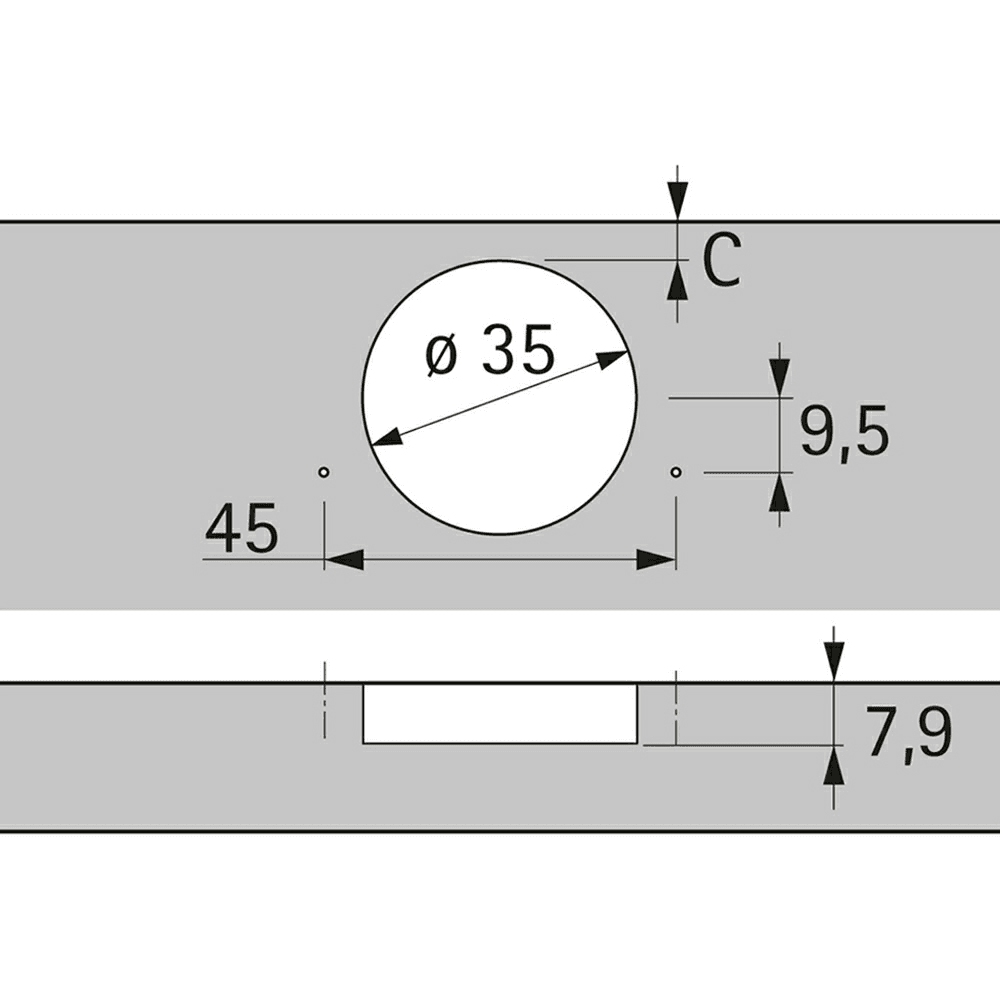

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 7.8mm |
| Material | Steel |
| Cabinet Type |
