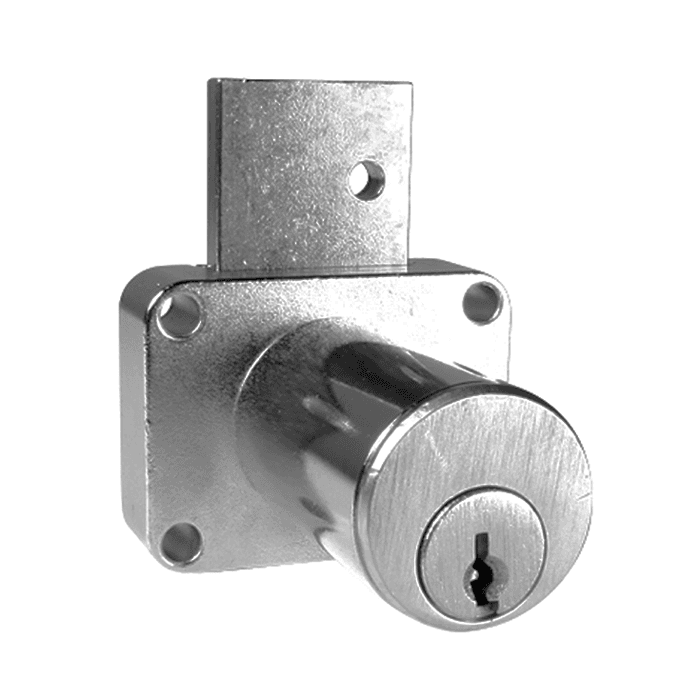

Name: 8178 Pin Tumbler Drawer Lock, Satin Brass, Keyed to C915A Key
Brand: CompX National
Availability: BackOrder

The Plus feature allows you to remove the cylinder from the pin tumbler box locks while the lock remains in place. No mounting screws need to be removed. Simply use a 5/64" Allen wrench from the back to remove the cylinder and plug for re-keying.

Features:
• Surface mounted
• Requires 57/64" diameter hole for cylinder
• Key removable in both locked and unlocked positions

Supplied with two keys, strike and mounting screws.
Black plastic spacer (NC2073) for pin tumbler door and drawer locks available for additional purchase.

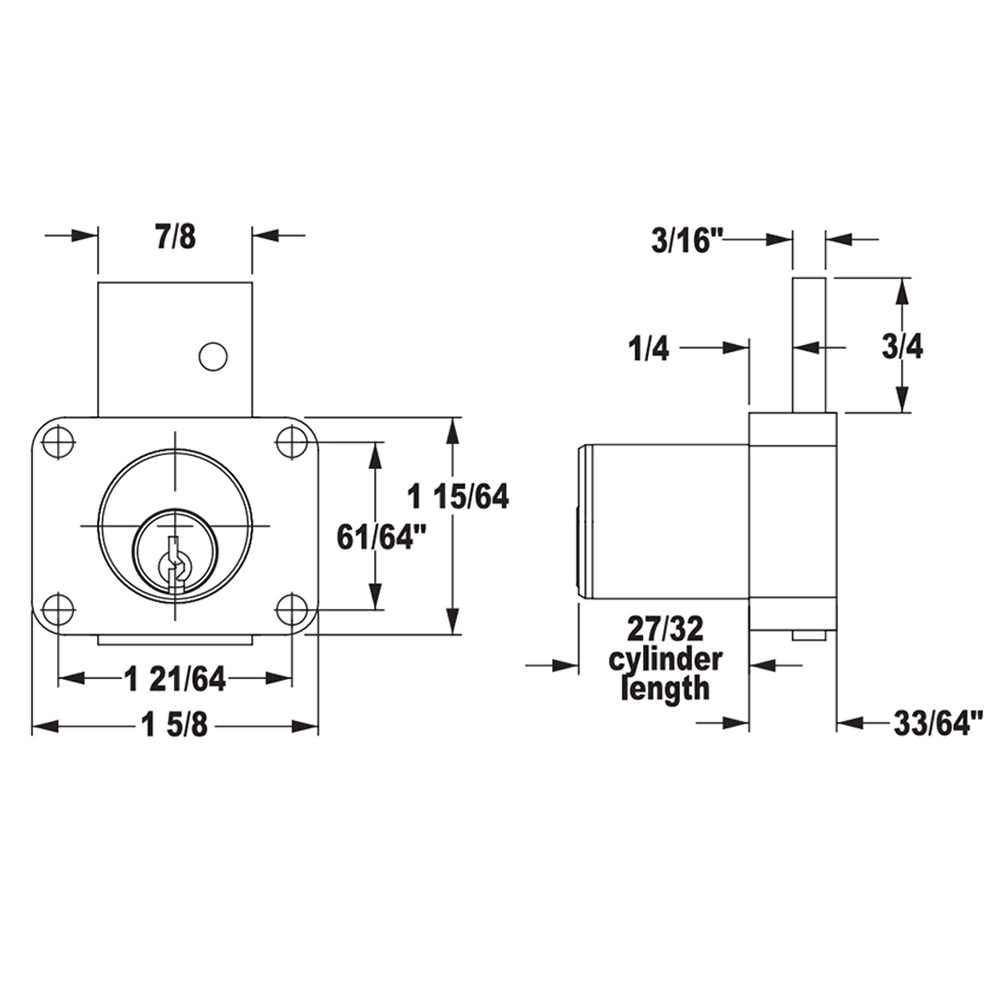

Box Quantity	1
Bore Diameter (in)	57/64 in
Cam Extension	3/4 in
Cylinder Length	7/8 in
Depth (in)	2 in
Height (in)	1-15/64 in
Key Number	915
Keying	Keyed alike
Length (in)	1-5/8 in
Material Type	Steel
Maximum Material Thickness	1-1/8 in
Position	Surface mount
Set Back (in)	3/4 in
Throw	3/4 in
Tumbler Type	Pin tumbler
Width (in)	1-5/8 in
Color/Finish	Satin Brass
Manufacturer Series	C8178
Product Type	Deadbolt Lock

Box Quantity	1
Bore Diameter (in)	57/64 in
Cam Extension	3/4 in
Cylinder Length	7/8 in
Depth (in)	2 in
Height (in)	1-15/64 in
Key Number	915
