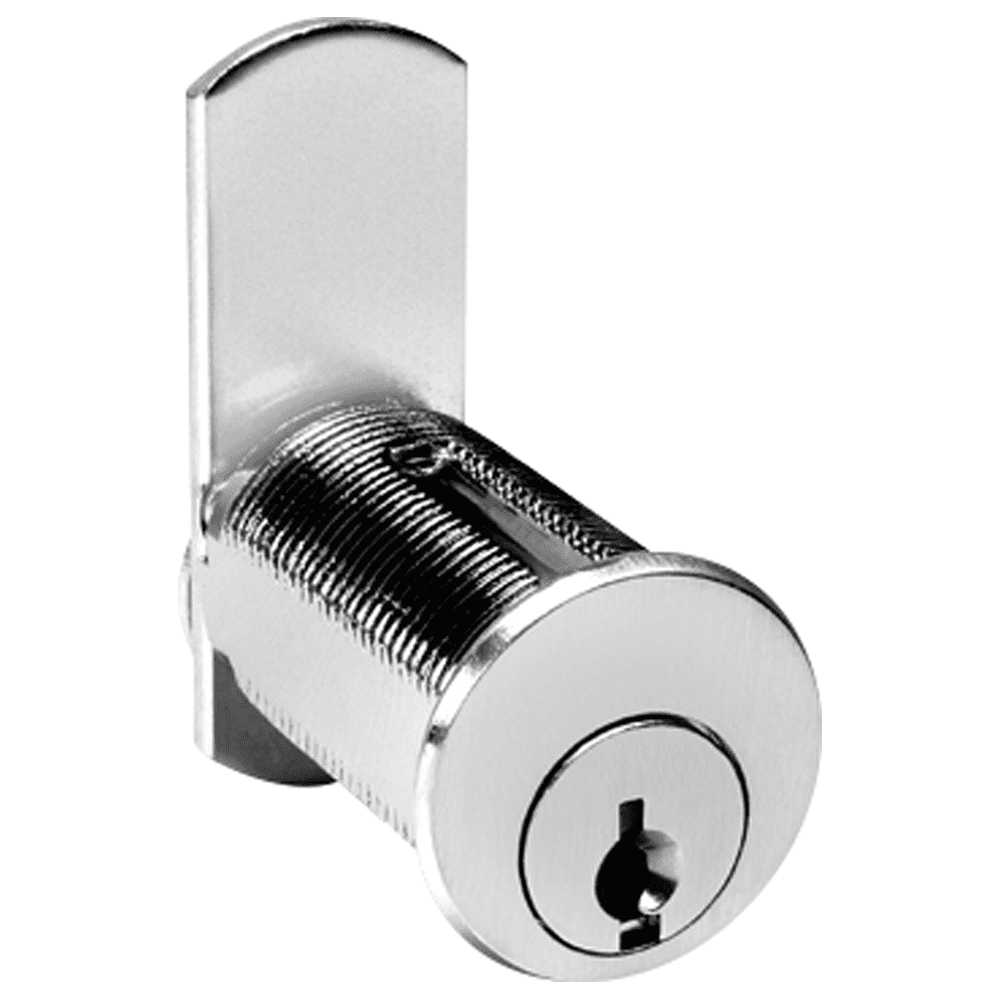

8109 Pin Tumbler Cylinder Cam Lock for Lipped/Overlay Application, Satin Brass, Keyed Different
Item # NC8109-KD-4
•Mfr # C8109-KD-4
Keyed As:
Finish:
Product Details
Features:
• Keyed different
• For drawers, right or left hand doors
• Requires 3/4" diameter hole
• Use N8109 for lipped or overlay construction, the other locks for flush application
• For overlay application, the combined thickness of front and frame cannot exceed the cylinder length
• 90˚ cam turn, key removable in both locked and unlocked positions
• Supplied with two keys, trim, washer, spur washer for wood, mounting nut and two cams for both applications
• Specific cams to be used with N8102 lock are available for overlay construction using 3/4" thick front and 3/4" thick frame
• Keyed different
• For drawers, right or left hand doors
• Requires 3/4" diameter hole
• Use N8109 for lipped or overlay construction, the other locks for flush application
• For overlay application, the combined thickness of front and frame cannot exceed the cylinder length
• 90˚ cam turn, key removable in both locked and unlocked positions
• Supplied with two keys, trim, washer, spur washer for wood, mounting nut and two cams for both applications
• Specific cams to be used with N8102 lock are available for overlay construction using 3/4" thick front and 3/4" thick frame
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 1 |
| Keyed As | Keyed Different |
| Finish | Satin Brass |
| Product Type | Cylinder Cam Lock |
| Material | Steel |
| Cylinder Diameter | 3/4" |
| Tumbler Type | Pin Tumbler |
