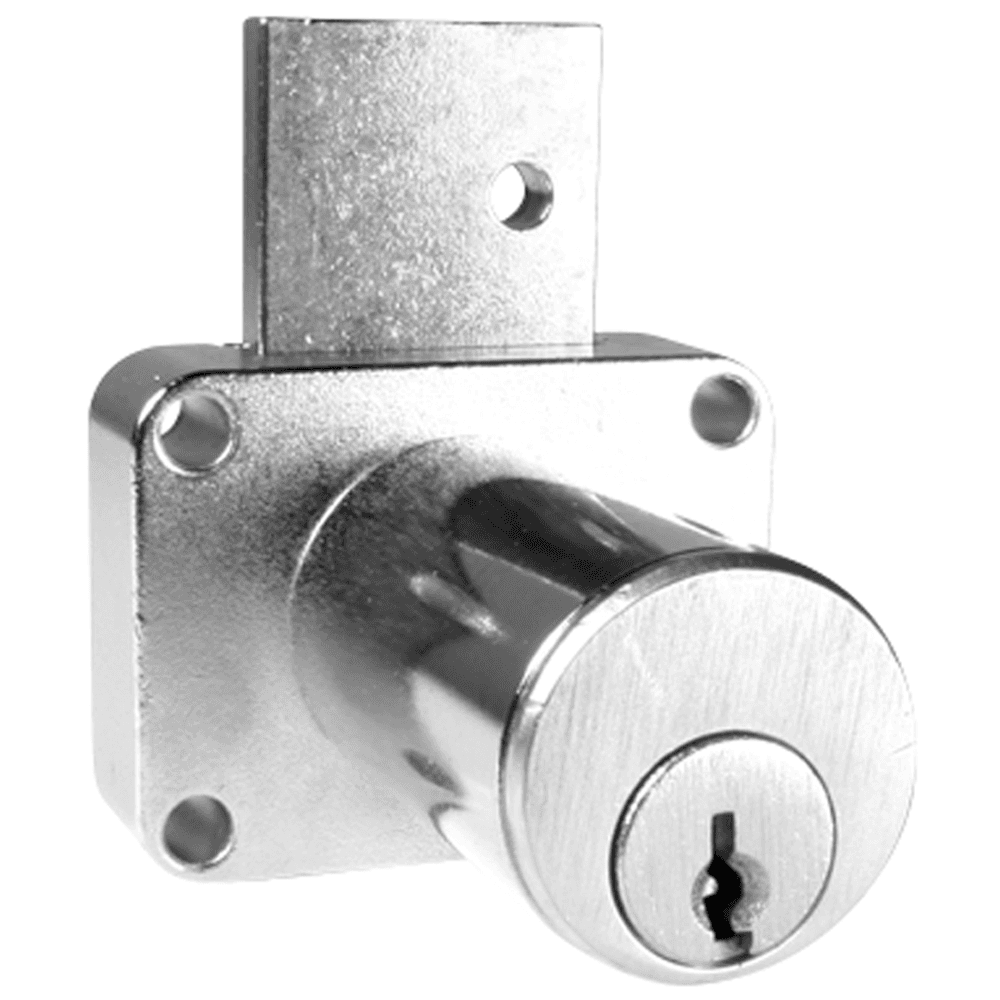

8179 Pin Tumbler Drawer Lock, Satin Brass, Keyed to KA915 Key
Item # NC8179-915-4
•Mfr # C8179-915-4
$39.62
/Each
10 items
$33.23/Each
50 items
$31.94/Each
Keyed As: KA915 Key
Finish: Satin Brass
Min Order: 1
Quantity Multiple by: 1
Product Details
The Plus feature allows you to remove the cylinder from the pin tumbler box locks while the lock remains in place. No mounting screws need to be removed. Simply use a 5/64" Allen wrench from the back to remove the cylinder and plug for re-keying.
Features:
• Surface mounted
• Requires 57/64" diameter hole for cylinder
• Key removable in both locked and unlocked positions
Supplied with two keys, strike and mounting screws.
Black plastic spacer (NC2073) for pin tumbler door and drawer locks available for additional purchase.
Features:
• Surface mounted
• Requires 57/64" diameter hole for cylinder
• Key removable in both locked and unlocked positions
Supplied with two keys, strike and mounting screws.
Black plastic spacer (NC2073) for pin tumbler door and drawer locks available for additional purchase.
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads

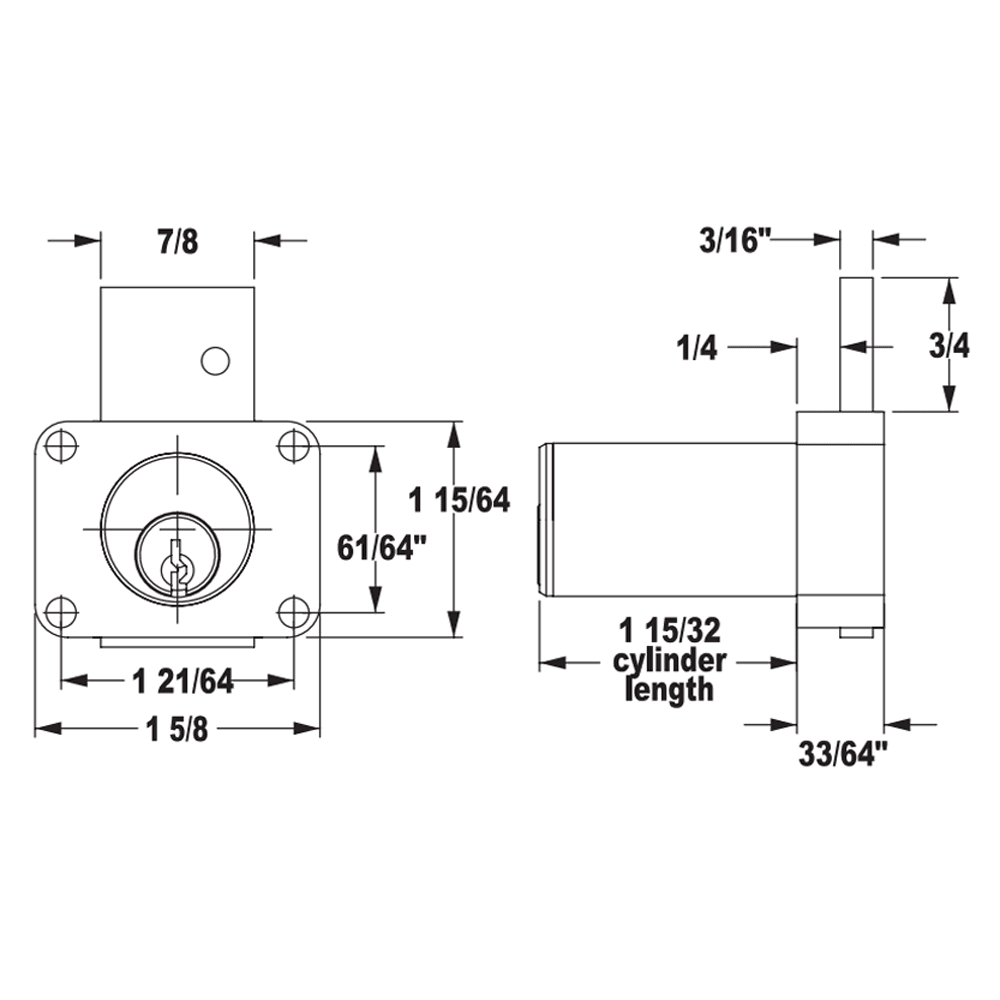

Specifications
| Keyed As | KA915 Key |
| Finish | Satin Brass |
| Product Type | Drawer Lock |
| Width | 1-5/8" |
| Height | 1-15/64" |
| Cam Length | |
| Depth | 2" |
| Material | Steel |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | 57/64" |
| Certifications | |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | Pin Tumbler |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
